Dimming actuator, 4-gang

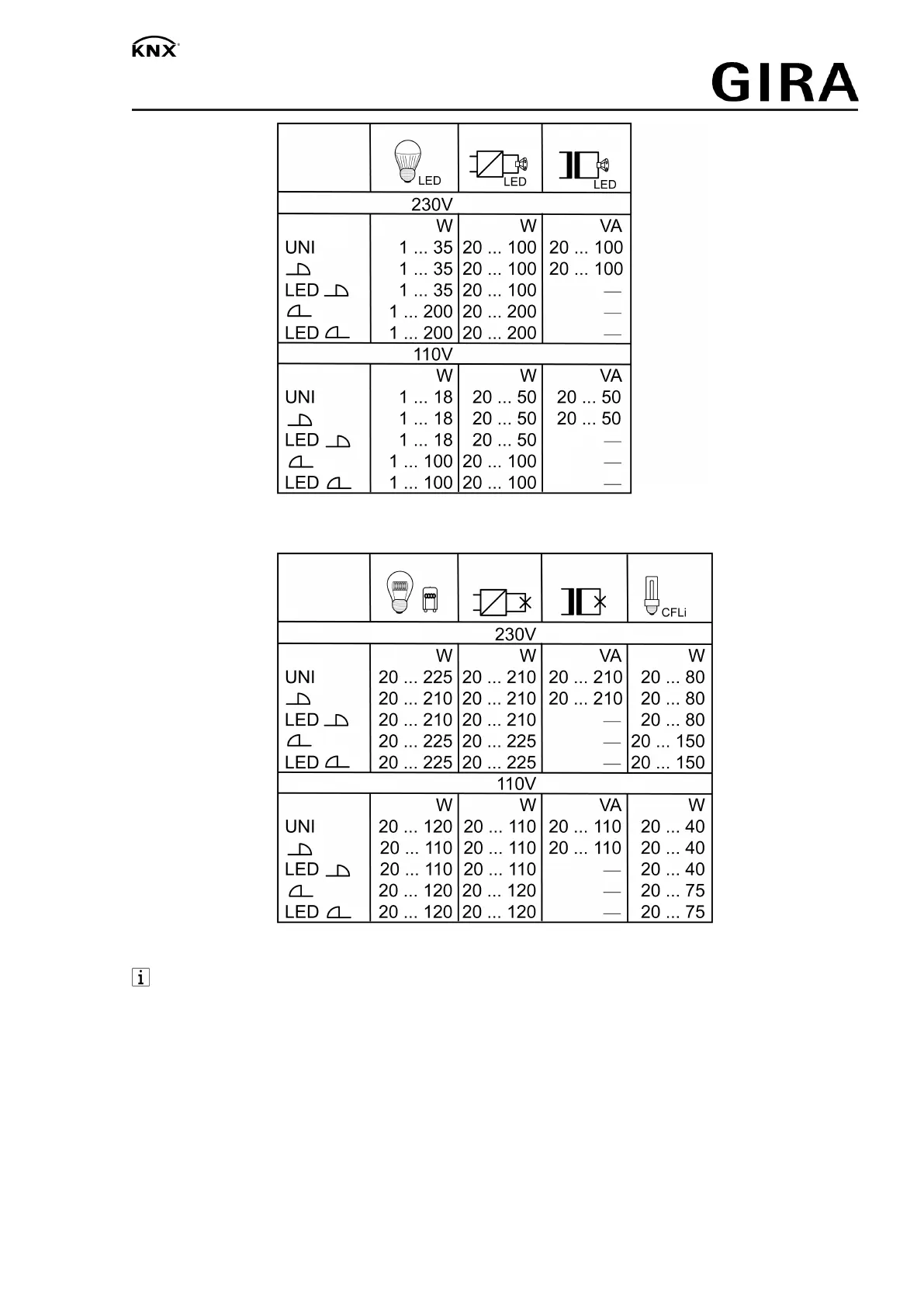

Figure4: LED lamp loads

Figure5: conventional lamp loads

Inductive capacitive mixed load is not permitted.

Power boosters See power booster instructions

Connection

single stranded 0.5 ... 4 mm²

Finely stranded without conductor sleeve 0.5 ... 4 mm²

Finely stranded with conductor sleeve 0.5 ... 2.5 mm²

Connection torque screw terminals max. 0.8 Nm

Fitting width 72 mm / 4 module

KNX

8 / 11

82402712 10.07.2020
