ASSEMBLY INSTRUCTIONS
Hardware Used
AA
x 4ST4.8 x 10 mm
Screw
5.

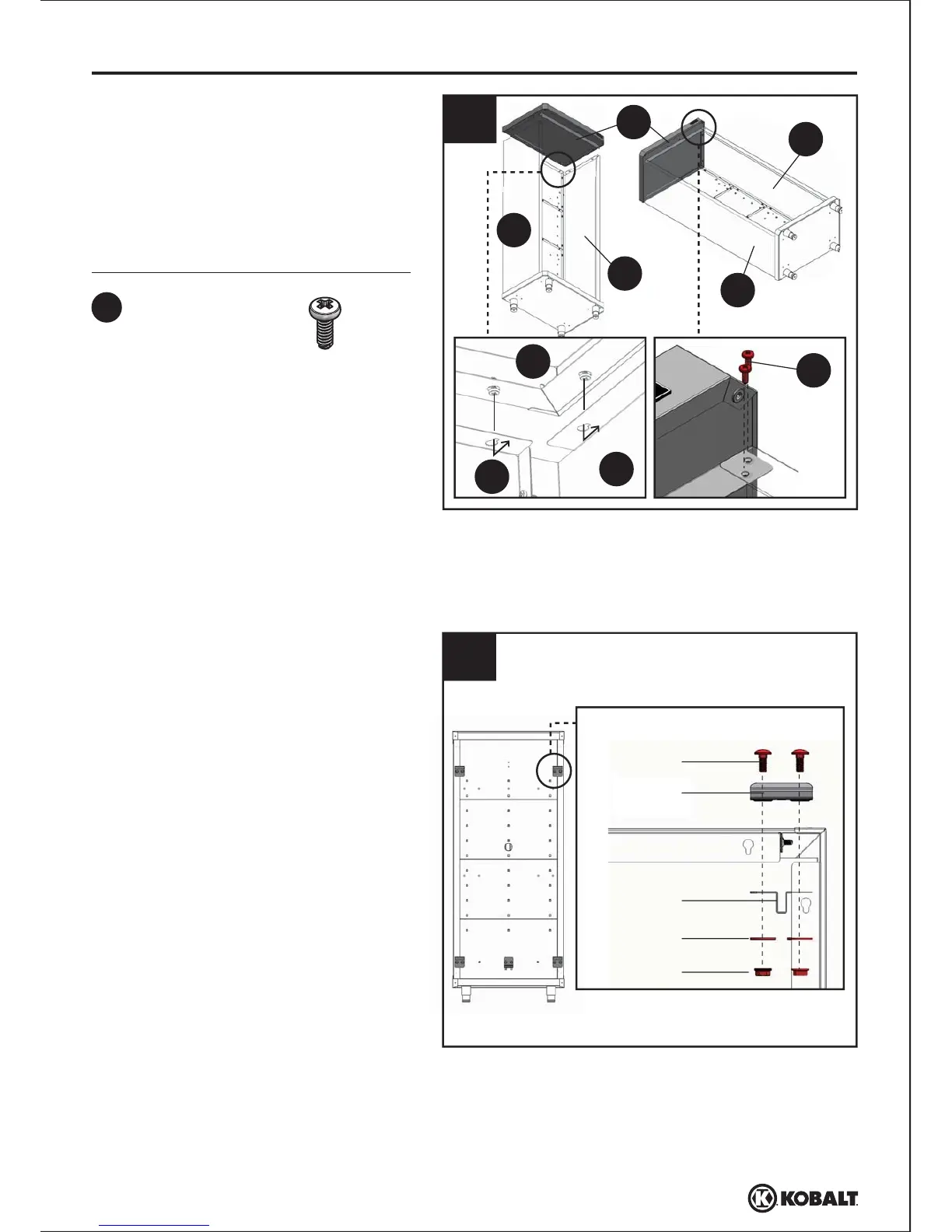

Slide and tighten the preassembled
screws in the top (D) to the assembled
unit. Tighten ST4.8 x 10 mm screws
(AA) to the front edge of top (D) to
connect the left side (B) and right side
(C) to top (D). Place the cabinet upright.
6
Carriage bolts
Outside cabinet
brackets
Inside cabinet
brackets
Flat washers
Flange nuts
6.
OPTIONAL
If you plan to hang the unit on the wall
using the K-Rail
®
(Item #0103683, sold
separately) and Wall Mount Kit (Item
#0345926, sold separately), please
follow the below step. Otherwise,
proceed to Step 7. Attach carriage bolts,
flange nuts, flat washers, outside cabinet
brackets and inside cabinet brackets to
the back of the assembled unit.
7
Lowes.com
AA
C
D
A
5
B
B
D
C
C
To Next Page
