ASSEMBLY INSTRUCTIONS
Hardware Used
5
6
G
C
B
AA
AA
x 2ST4.8 x 10 mm
Screw
M
C
C
M
B

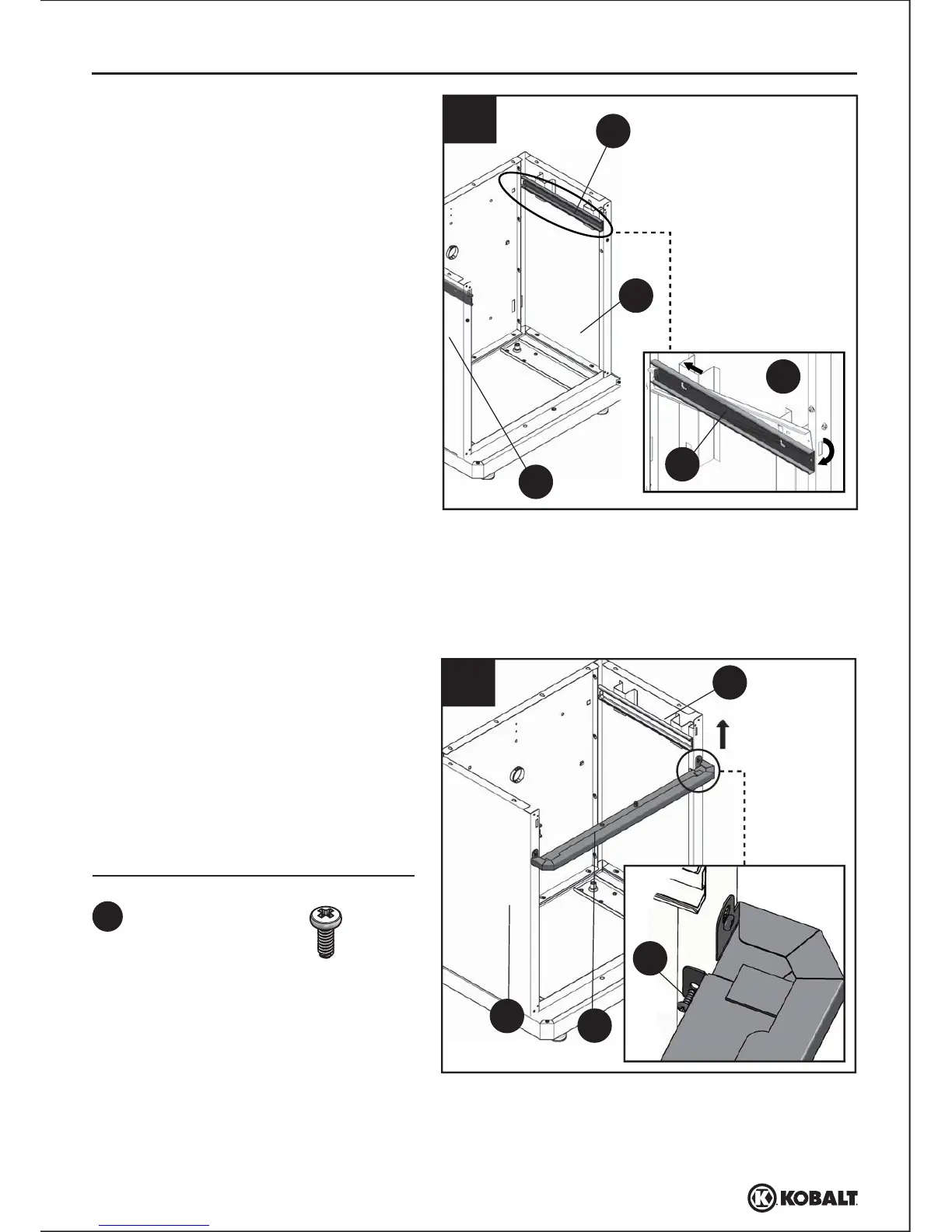

5.
Insert the back tongue of outside slide
(M) to the back slot on right side (C),
then assemble the front tongue of
outside slide (M) to the front slot on
right side (C).
Repeat above step for left side (B).
6.
Push key slot in the bottom of cabinet
divider (G) to the preassembled screws
on the left side (B) and right side (C).
Tighten the screws. Screw two ST4.8 x
10 mm screws (AA) to the two top holes
of cabinet divider (G) to connect cabinet
divider (G) to left side (B) and right side
(C).
Note: Make sure the right outside slide (M
)
is assembled on right side (C
)
and left
outside slide (M
)
on the left side (B
)
.
7
