F
E
ASSEMBLY INSTRUCTIONS
8
E
C
A
A
C
F
F
F

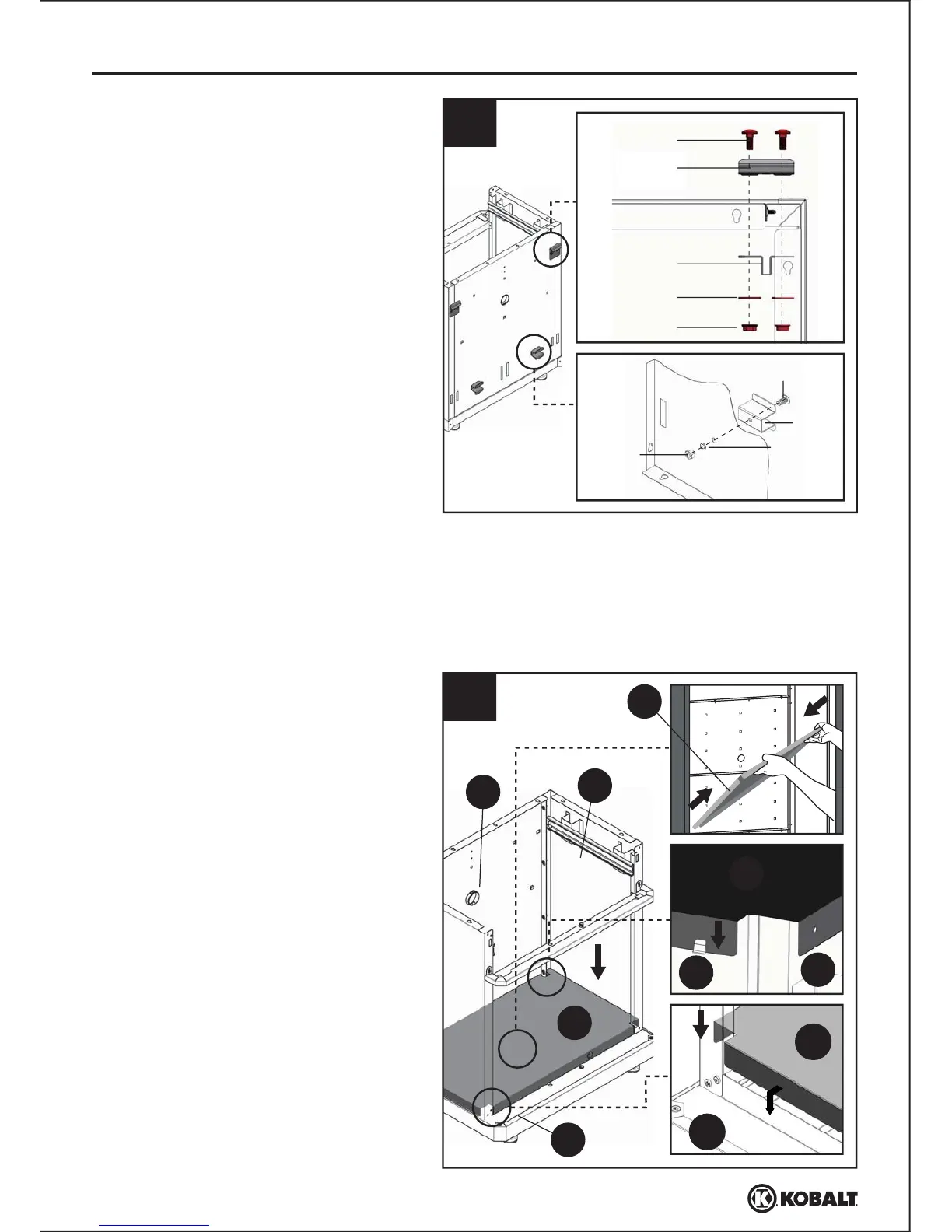

8.
Install the bottom shelf (F) by tipping it
to the side and inserting it into the
cabinet. With bottom shelf (F) at an
angle, align the cut-outs on the
bottom shelf (F) with the back seams
caused by left side (B), right side (C),
and back (A). Carefully lower the
bottom shelf (F), ensuring the front of
the bottom shelf (F) goes over the
front flange of the base (E).
7
Carriage bolts
Truss HD screws
Outside cabinet
brackets
Inside cabinet
brackets
Flat washers
Flat washers
Flange nuts
Hex nuts
Cabinet
spacers
7.
OPTIONAL
If you plan to hang the unit on the wall
using the K-Rail
®
(Item #0103683, sold
separately) and Wall Mount Kit (Item
#0345926, sold separately), please
follow the below step. Otherwise,
proceed to Step 8. Attach carriage bolts,
flange nuts, flat washers, outside
cabinet brackets and inside cabinet
brackets to the back of the assembled
unit. Screw cabinet spacer with truss
HD screws, flat washers and hex nuts to
the back of the assembled unit.
Note: If inside front shelf tabs are
flattened during assembly, use a flat
screwdriver (not included) to adjust tabs.
8
