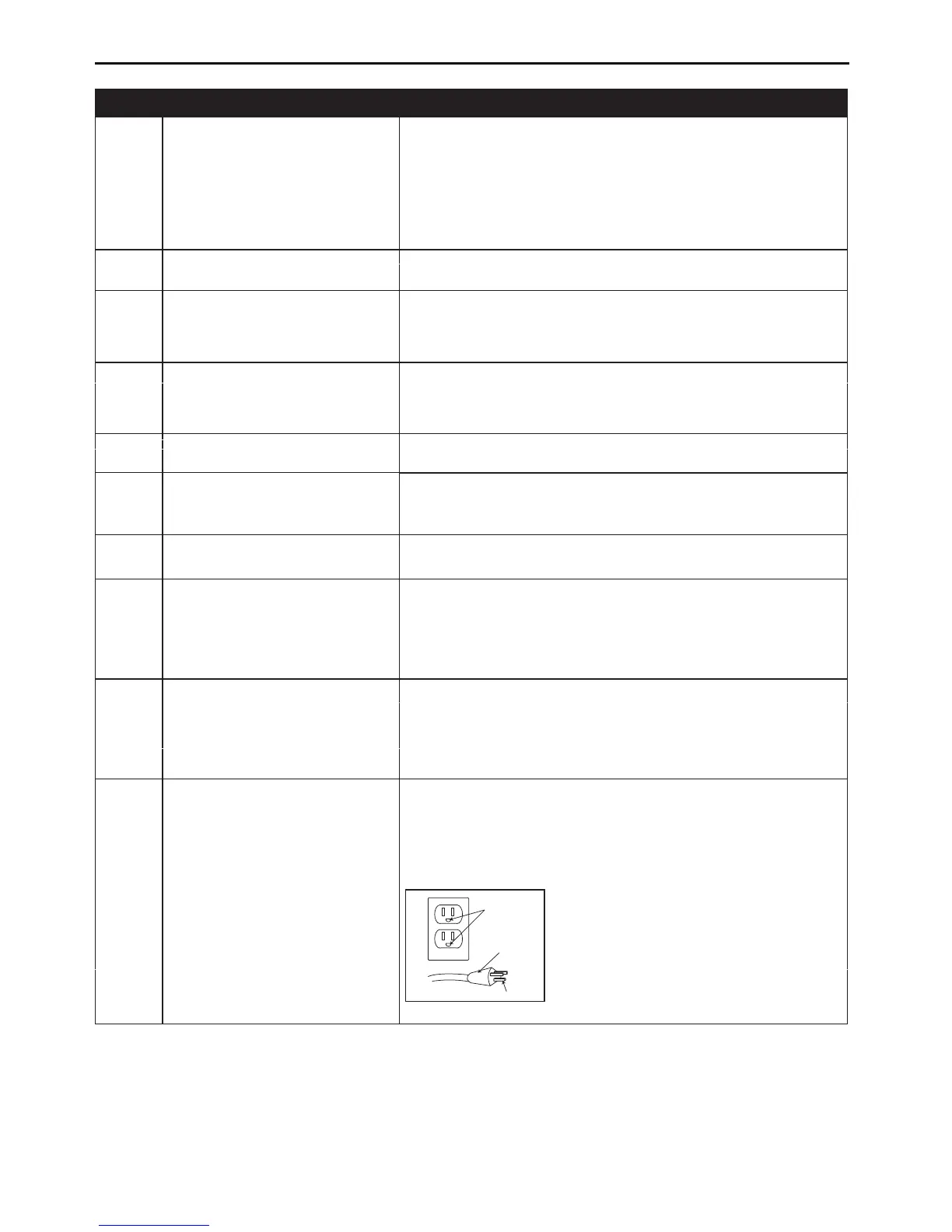

PARTS DESCRIPTION
PART PART NAME PART DESCRIPTION
A Electric Motor
The motor is used to power the pump. It contains a thermal
overload protector. If the motor overheats for any reason,
the thermal overload protector will shut it down in order to
prevent the motor from being damaged.
The pump is used to compress the air and discharge it into
the tank via the piston moving up and down in the cylinder.
B Air Tank The tank is used to store the compressed air.
C Tank Pressure Gauge The gauge is used to measure the stored air pressure level of
the tank. It is not adjustable b
y the operator and does not
indicate line pressure.
D Air Pressure Regulator The regulator is used to adjust line pressure to the tool you are
using. Turn the knob clockwise to increase pressure and
counterclockwise to decrease pressure.
E Regulated Pressure Gauge The gauge is used to measure the regulated outlet pressure.
F Quick Coupler For this compressor, the quick coupler is also used as
the air line outlet. The outlet is used to connect the 1/4
in. air hose.
G Air Tank Drain Valve The drain valve is used to remove moisture from the air tank
after the unit is shut off.
H Pressure Relief Valve
The valve is used to prevent system failures by relieving
pressure from the system. If the pressure reaches the preset
level and the pressure switch will not shut down the motor, it
will automatically pop open. You can also pull the ring on the
valve to open.
I On/Off Switch
J Power Cord
Grounded
outlet
Grounding Pin
Plug
Air Compressor Pump
This switch turns on the compressor and is operated manually.
When in the ON position, it allows the compressor to start up
or shut down automatically, without warning, upon air demand.
ALWAYS set this switch to OFF when the compressor is not
being used and before unplugging the compressor.
This product is for use on a nominal 120-volt circuit and
should be grounded. A cord with a g
rounding plug as
illustrated must be used. Make sure that the product is
connected to an outlet that has the same configuration as
the plug. No adapter should be used with this product.
4
