CARE AND MAINTENANCE
1. Remove the battery from the chain saw.
To change the bar and chain:
2. Rotate the chain cover lock knob counterclockwise
and remove the chain cover by following step 1 through step 3 above.
3. Remove the bar and chain from the mounting surface by following step 4 above.
4. Remove the old chain from the bar.
5. Lay out the new saw chain in a loop and straighten
any kinks. The cutters should face in the direction of
chain rotation. If they face backwards, turn the loop
over.
6. Place the chain drive links into the bar groove.
Note: Make certain of direction of the chain.
7. Position the chain so there is a loop at the back of
the bar.
8. Hold the chain in position on the bar and place the
loop around the sprocket.
9.
the bar studs are in the long slot of the bar.
Note: When placing the bar on the bar studs, ensure
that the adjusting pin is in the chain tension pin hole.
10. Replace the chain cover.

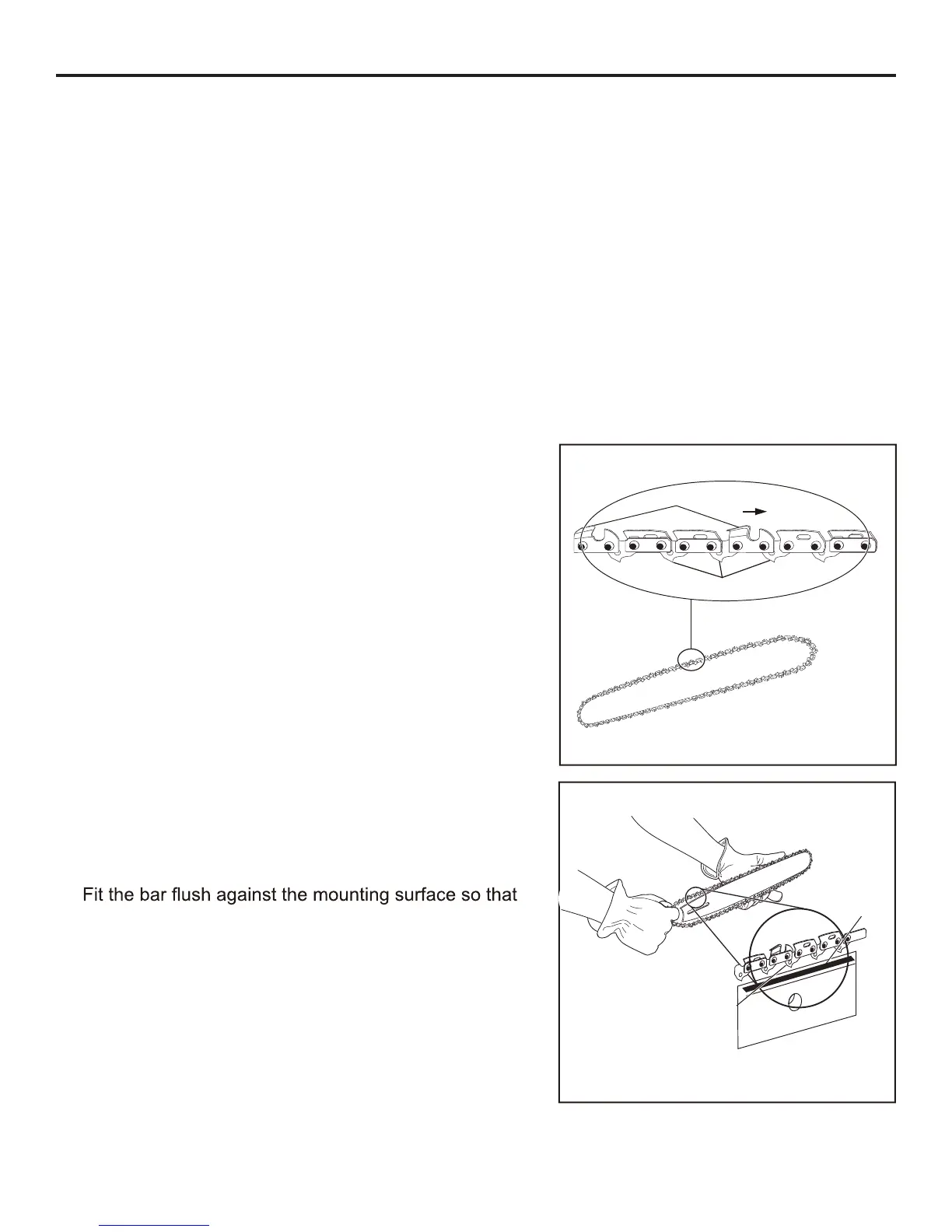

Bar
Groove
Chain Drive Links
Cutters Chain Rotation
Chain Drive Links
To Next Page
