8
OPERATING INSTRUCTIONS

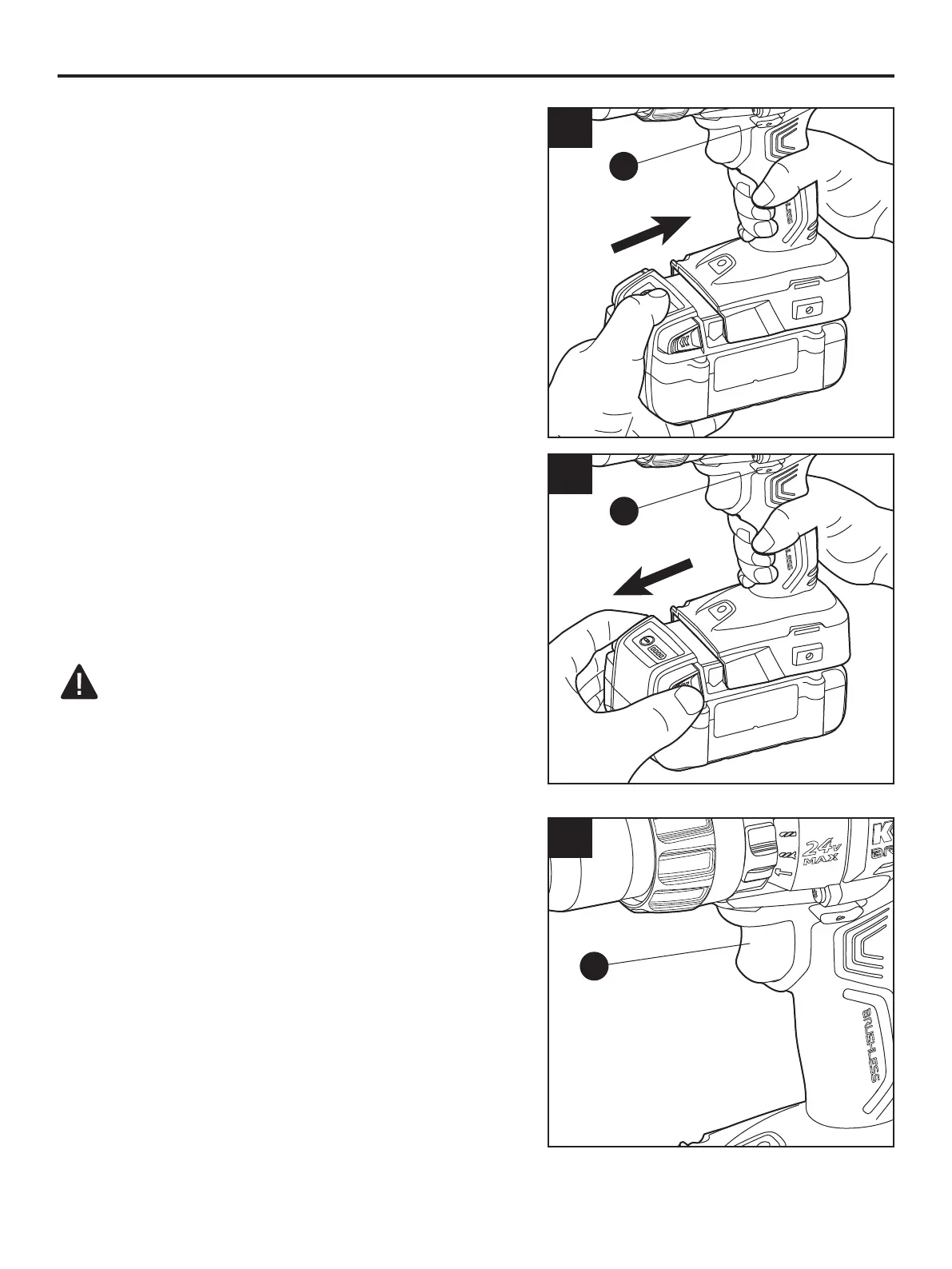

1. Battery
To Attach Battery Pack
a. Place the direction-of-rotation selector (F) in the
center-lock position.
b. Align the raised portion on the battery pack with
the grooves on the bottom of the tool, and then
slide the battery pack onto the tool as shown.
c. Make sure that the latches on the battery pack
snaps into place and the battery pack is secured
to the tool before beginning operation.
NOTICE: When placing the battery pack on the tool,
be sure that the raised rib on battery pack aligns with
the groove on the tool and the latches snap into place
properly. Improper attachment of the battery pack can
cause damage to internal components.
To Detach Battery Pack
a. Place the direction-of-rotation selector (F) in
the center-lock position.
b. Press the battery-release buttons to release
the battery pack.
c. Pull forward on the battery pack to remove it
from the tool.
WARNING
• Battery tools are always in operating condition.
Therefore, the direction-of-rotation selector
should always be locked (center) when the tool is
not in use or when carrying the tool at your side.
2. Variable-speed Trigger Switch
a. To turn the hammer drill ON, depress the
variable-speed trigger switch (E).
b. To turn it OFF, release the variable-speed
trigger switch.
Variable Speed
The variable-speed trigger switch delivers higher
speed with increased trigger pressure and lower
speed with decreased trigger pressure.
Electric Brake
The hammer drill is equipped with an electric
brake. When the variable-speed trigger switch is
released, the electric brake engages automatically
to quickly stop rotation.
1a
F
F
1b
2
E
