OPERATING INSTRUCTIONS

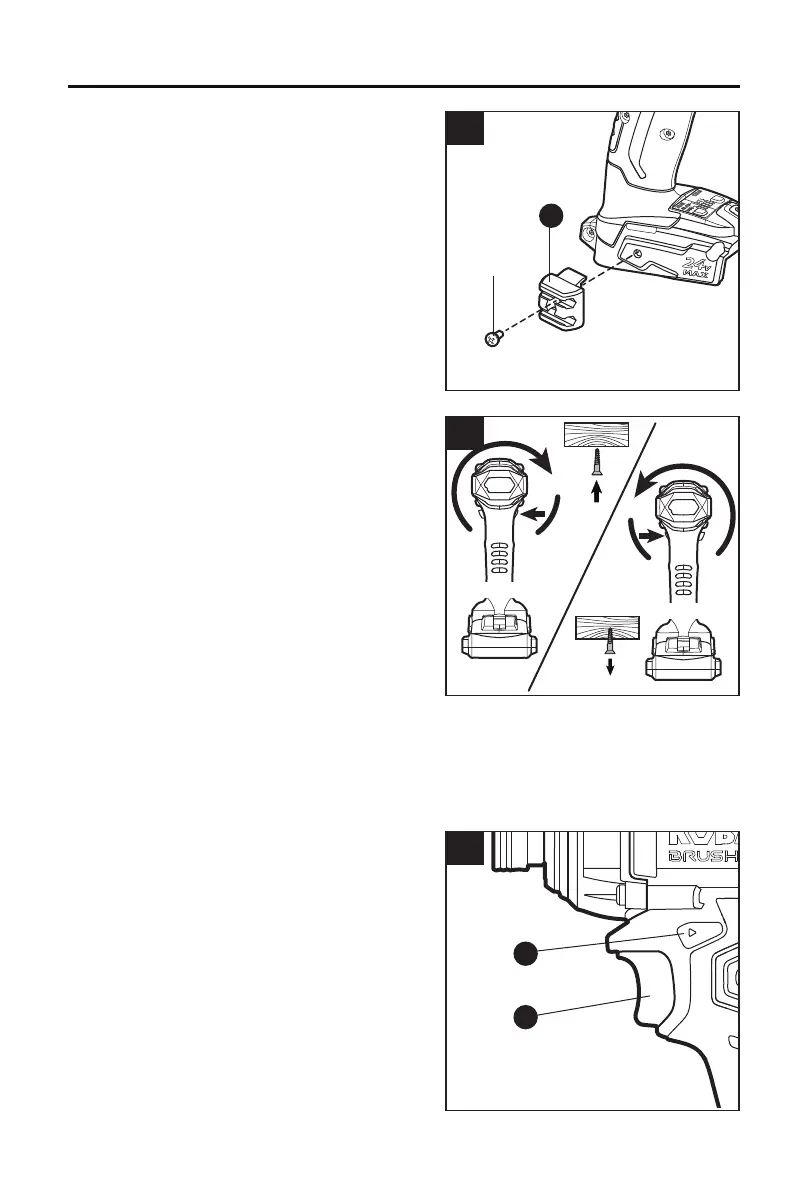

3. Installing and Removing the Bit Holder
a. Align the rib of the bit holder (H) with the hole
on the base of the impact driver.
b. Insert the screw and tighten the screw securely
with a Phillips-head screwdriver (not included).
c. To remove the bit holder (H), use a Phillips-
head screwdriver to loosen the screw holding
the bit holder to the impact driver.
NOTE: The bit holder can be installed on the right
or left side of the tool.
4. Direction-of-Rotation Selector
(Forward/Center Lock/Reverse)
The direction of bit rotation is reversible and is
controlled by the selector located above the trigger
switch (C). With the impact driver held in the normal
operating position, pointing away from you:
a. Position the direction-of-rotation selector (B) to
the left of the tool for forward rotation to drive
the screws in.
b. Position the direction-of-rotation selector (B)
to the right of the tool for reverse rotation to
remove screws.
c. Setting the selector in the center position locks
the trigger to helps reduce the possibility of
accidental starting when the tool is not in use.
NOTICE:
• To prevent gear damage, always allow the impact driver to come to a complete stop before
changing the direction of rotation.
• The impact driver will not run unless the direction-of-rotation selector is engaged fully to the
left or right.
5. Variable-speed Trigger Switch
a. Position the direction-of-rotation selector (B) to
the left or right of the tool as needed to unlock
the trigger switch (C).
b. To turn the impact driver ON, depress the trigger
switch (C).
c. To turn it OFF, release the trigger switch.
