OPERATING INSTRUCTIONS

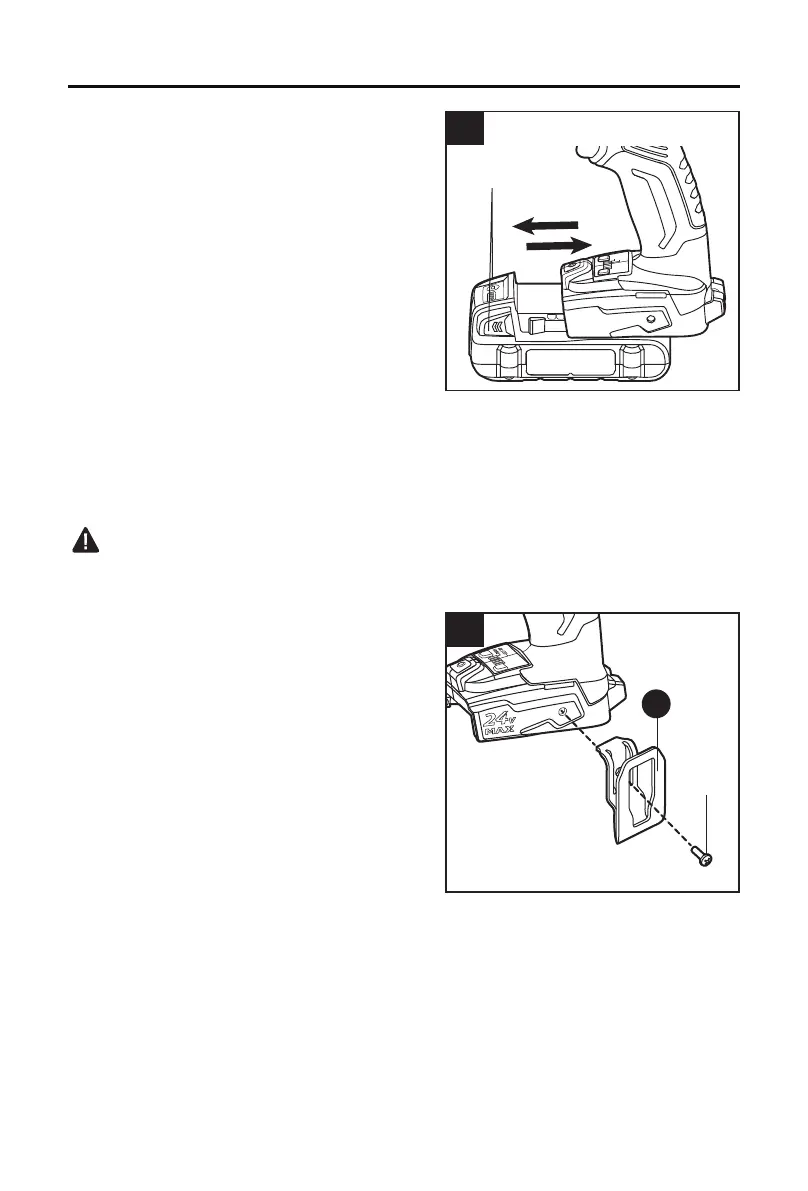

1. To Attach Battery Pack
a. Align the raised portion on the battery pack
with the grooves on the bottom of the tool, and
then slide the battery pack onto the tool as
shown.
b. Make sure that the latch on the battery pack
snaps into place and the battery pack is
secured to the tool before beginning operation.
NOTICE: When placing the battery pack on the
tool, be sure that the raised rib on battery pack
aligns with the groove on the tool and the latches
snap into place properly. Improper assembly of
the battery pack can cause damage to internal
components.
To Detach Battery Pack
a. Press the battery-release buttons to release the battery pack.
b. Pull the battery pack backward to remove it from the tool.
WARNING
• Battery tools are always in operating condition. Therefore, always remove the battery pack
when the tool is not in use or when carrying the tool at your side.
2. Installing and Removing the Belt Clip
a. Align the rib of the belt clip (G) with the hole on
the base of the impact driver.
b. Insert the screw and tighten the screw securely
with a Phillips-head screwdriver (not included).
c. To remove the belt clip, use a Phillips-head
screwdriver to loosen the screw holding the belt
clip to the impact driver.
NOTE: The belt clip can be installed on the right or
left side of the tool.
SPEED
MODE
SELFTAP
FINISH
123
1
Battery-release
buttons
MODE
SPEED
123
2
Screw
G
To Next Page
