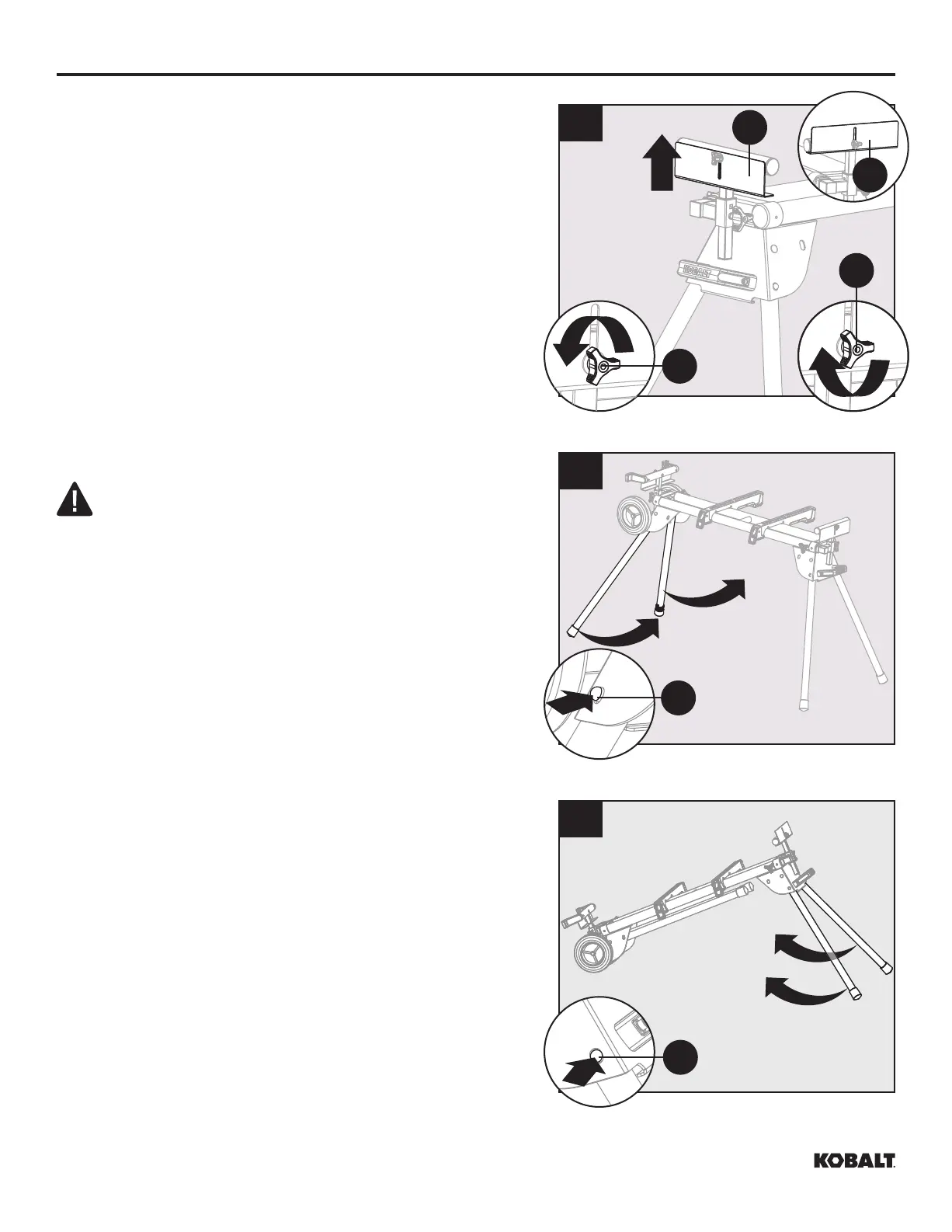

USING THE STOPS
• Loosen the stop adjustment knob (P).
• Move the stop (Q) to the maximum height position.
• Tighten the stop adjustment knob (P).
STORING THE STAND
WARNING
The miter saw must be removed from the stand and the
extension rails should be retracted before converting the
stand to its vertical storage position. Always fully tighten
all the mounting bolts, nuts and locking knobs. Failure
to do so could result in serious personal injury.
• To fold up two legs located on the same side as the
wheel, press the locking pins (I) and push the legs up
toward the stand until they click into place.
• To fold up the other legs, press the locking pins (I) and
push the legs up toward the stand until they click into
place.
