APPLICATIONS:
You may use this tool for the following purpose:
To provide a stable, secure work surface for a miter saw.

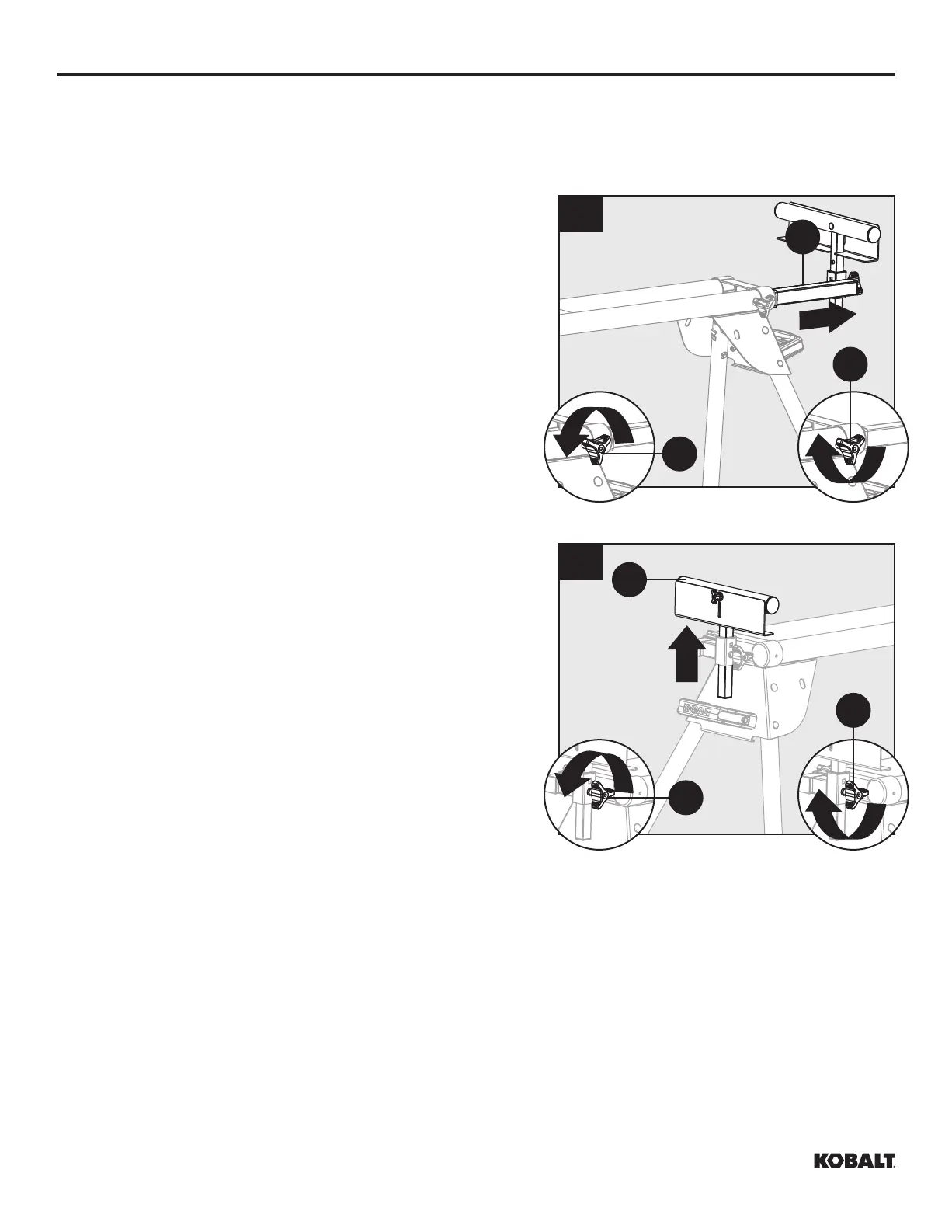

USING THE EXTENSION RAILS
Use the extension rails when working with larger work
pieces.
To extend the rails:
• Loosen the extension adjustment knob (M). Extend the
rail (N) to the desired position.
• Tighten the extension adjustment knob (M).
USING THE WORK SUPPORTS
Raise the work supports whenever you need to make
repetitive cuts of the same size. To avoid a greater risk
of binding or pinching, do not use both work supports at
the same time.
To raise the work supports:
• Loosen the work support adjustment knob (O). Raise
the work support (A) to the desired position.
• Tighten the work support adjustment knob (O).
