ASSEMBLY INSTRUCTIONS
High/Low Nozzle Lance and Turbo
Nozzle Installation

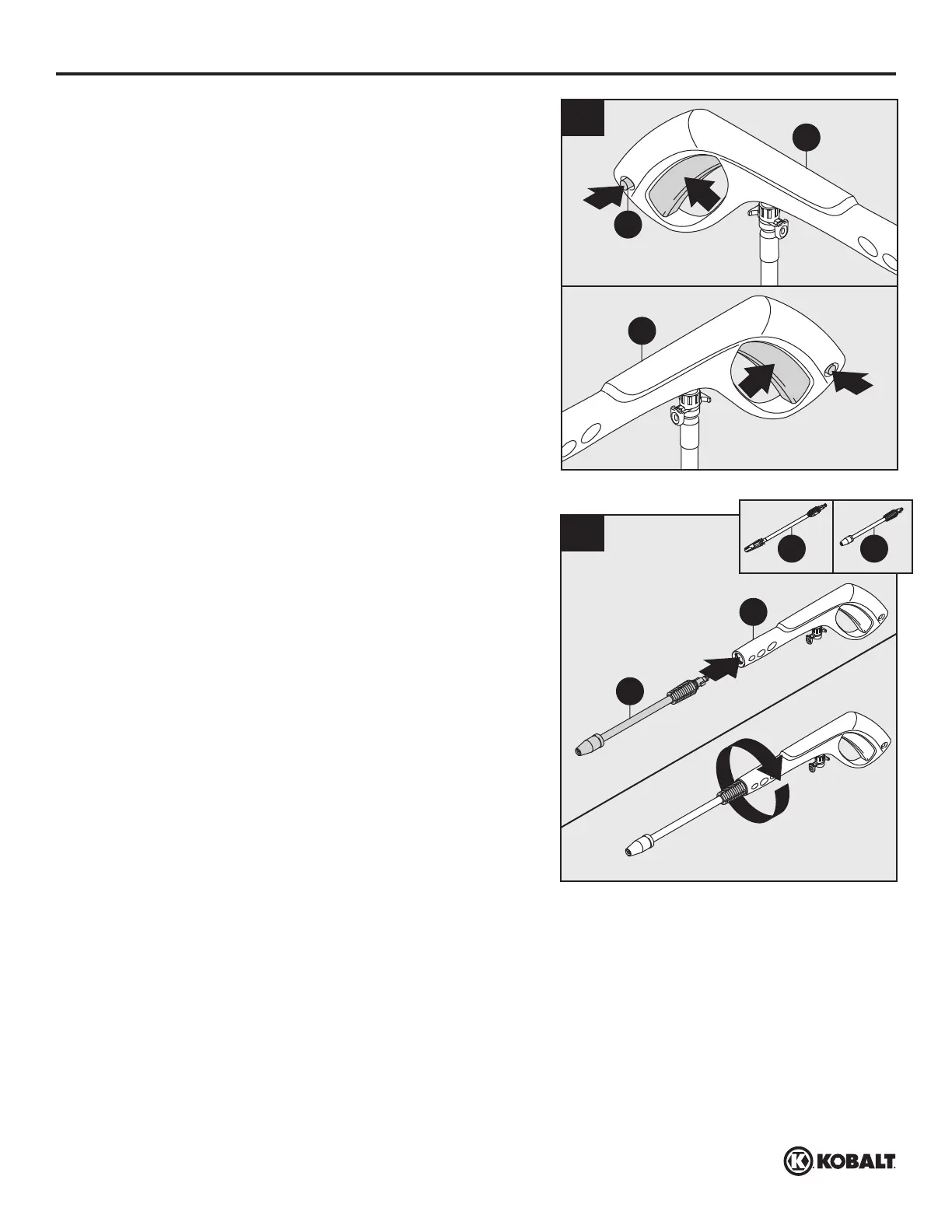

7. While the spray gun (K) is in the locked position,
insert the high/low nozzle lance (G) or turbo
nozzle (J) into the end of the spray gun, by
inserting and pushing together turning clockwise
simultaneously. To remove, push together and
turn counterclockwise.
Note: Always push the safety lock button to
lock the trigger when changing lances to ensure
that they do not accidentally eject with force
during removal.
Note: When using the turbo lance, make sure
the turbo nozzle is screwed on tight at the end
of the lance each time you use it.
Locking Spray Gun (before Lance installation)
6. To lock the trigger of the spray gun (K), aim the
gun away from you and push the lock button
from right to left. After doing so, squeeze or
pull the trigger to make sure it is locked and will
not move. Always leave lock button in locked
position when not in use. This ensures the gun is
in “safe” mode until it is ready for use.
1
2
7
J
JG
K
Unlock
Lock
1
1
2
2
6
K
K
L
