ASSEMBLY INSTRUCTIONS

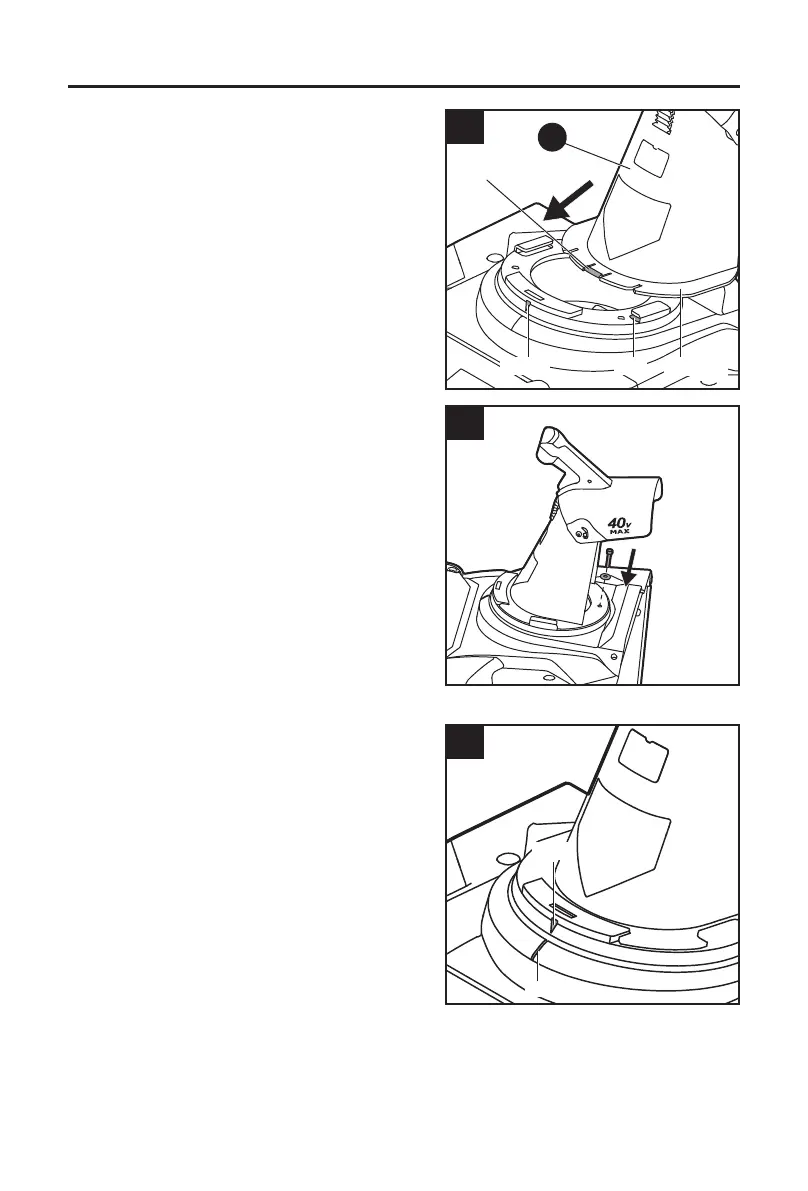

b. Align the rib of the chute (K) with the arrow on

the chute base, align the tongues of the chute

(K) with the slots on the chute base, and then

push the chute into place until you hear a

“click” (Fig. 2b).

c. Use the hex wrench to secure the chute in

place with the bolt and washer (Fig. 2c).

3. Installing the Chute-Rotation Handle

(Fig. 3a, 3b, 3c)

a. Rotate the chute to ensure the arrow on the

chute base alignment with the rib on the

housing.

SlotArrow Tongue

Rib

Arrow

Rib
