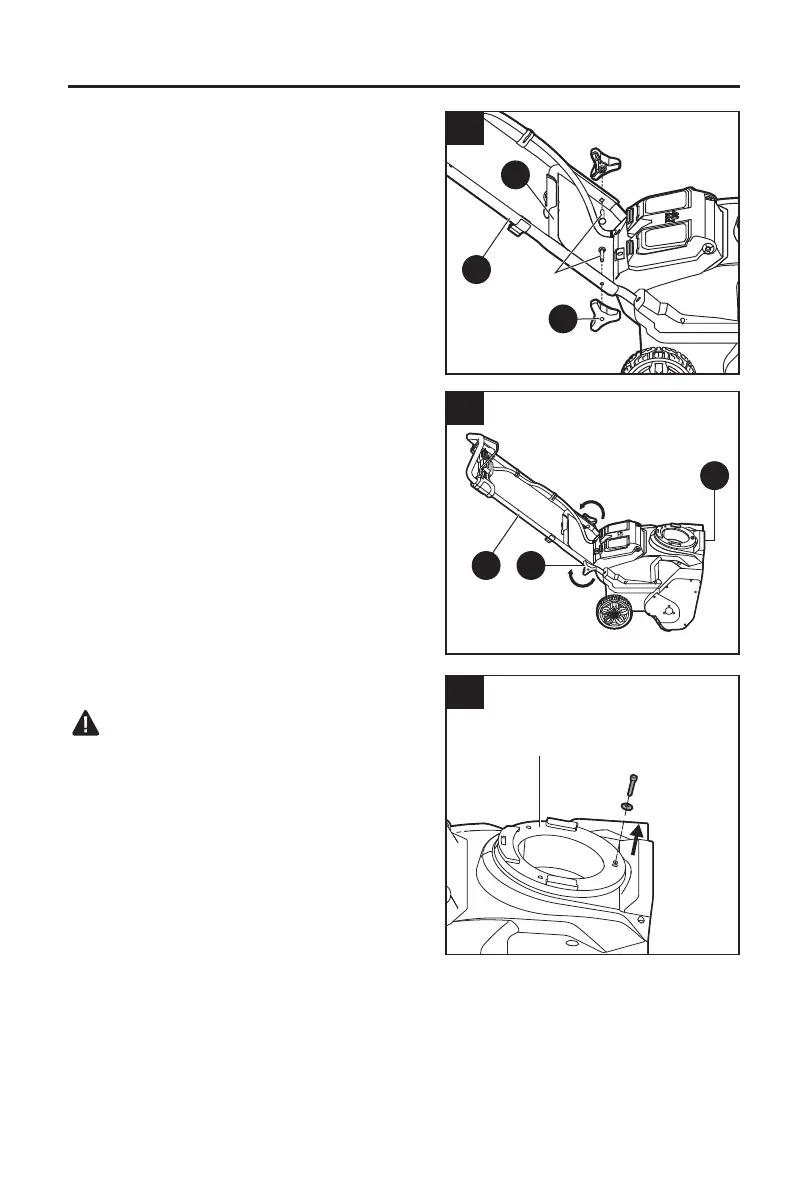

ASSEMBLY INSTRUCTIONS
1. To Install the Handlebar Assembly
Your snow blower is shipped with the side rails
partially assembled.
Use two people to grasp the handlebar assembly
(E) and the front of the snow blower below the
headlights (U) at the same time and carefully lift the
tool up and out of the carton.
Do not attempt to start the snow blower until the
handlebar assembly is installed and unfolded.
a. Lift the handlebar assembly, align it with the
rear frame (G). Align the holes in the side rails
with the holes in the rear frame.
b. Insert the bolts through the holes and secure
the handlebar assembly with the lock knobs
(H).
2. Installing the Chute (Fig. 2a, 2b, 2c)
WARNING
Never operate the snow blower without the
complete discharge chute in place.
a. Use the supplied hex wrench to loosen the
bolt and washer in the chute base and remove
them (Fig. 2a).
2a
Chute Base
1a
Bolts
G
H
E
1b
H
U
E
