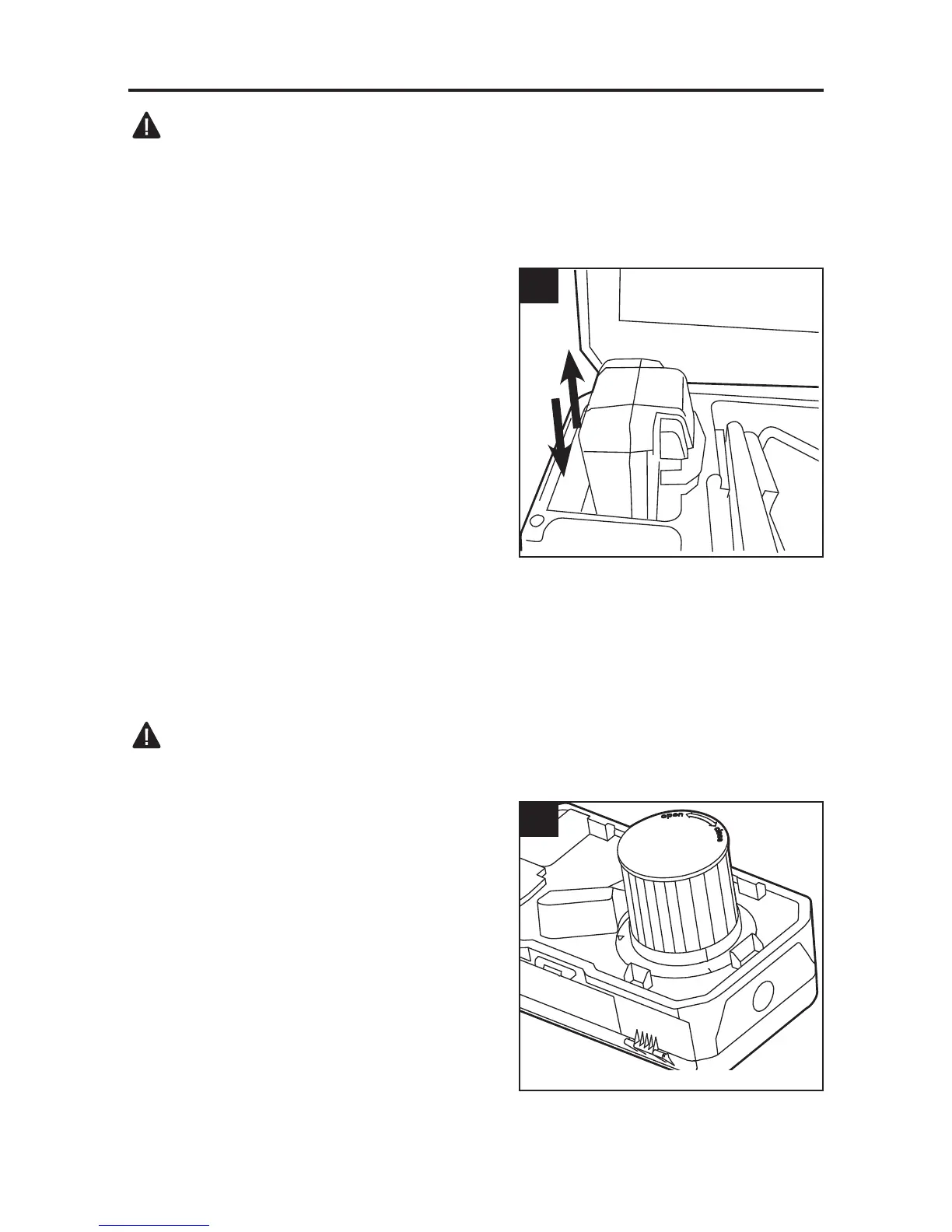

ASSEMBLY INSTRUCTIONS
WARNING
To prevent accidental starting that could cause serious personal injury, always remove the
battery pack from the tool when assembling parts.
1. To Install/Remove Battery Pack
To Attach Battery Pack
a. Make sure that the on/off switch (J) is in the
OFF position.
b. Align the raised portion on the battery pack with
the grooves in the battery receptacle, and then
slide the battery pack down, into the battery
receptacle as shown.
c. Ensure that the battery-release buttons on the
battery pack snap into place and the battery
pack is secured to the tool before beginning
operation.
NOTICE: When attaching the battery pack to the
tool, be sure that the raised rib on the battery pack
aligns with the groove on the tool and the latches
snap into place properly. Improper assembly of
the battery pack can cause damage to internal
components.
To Detach Battery Pack
a. Make sure that the on/off switch (J) is in the OFF position.
b. Press the battery-release buttons to release the battery pack.
c. Pull upward on the battery pack to remove it from the tool.
WARNING
Battery tools are always in operating condition. Therefore, the on/off switch should always in
the OFF position when the tool is not in use or when carrying the tool at your side.
2. Assembling the Filter
Use the cartridge lter for both dry and wet pickup.
a. Remove the battery pack.
b. Close and latch the battery compartment.
c. Release the tank latches (C) and lift off the
motor housing. Place it upside down on a at
surface.
d. To remove the lter, turn it 1/2 inch counter
clockwise and pull it off of the motor housing
(D)/oat cage.
e. Empty all debris from the tank.
f. To clean the lter, shake off excess dirt or rinse
the outside with water. Allow the lter to air dry
completely.
1
2
