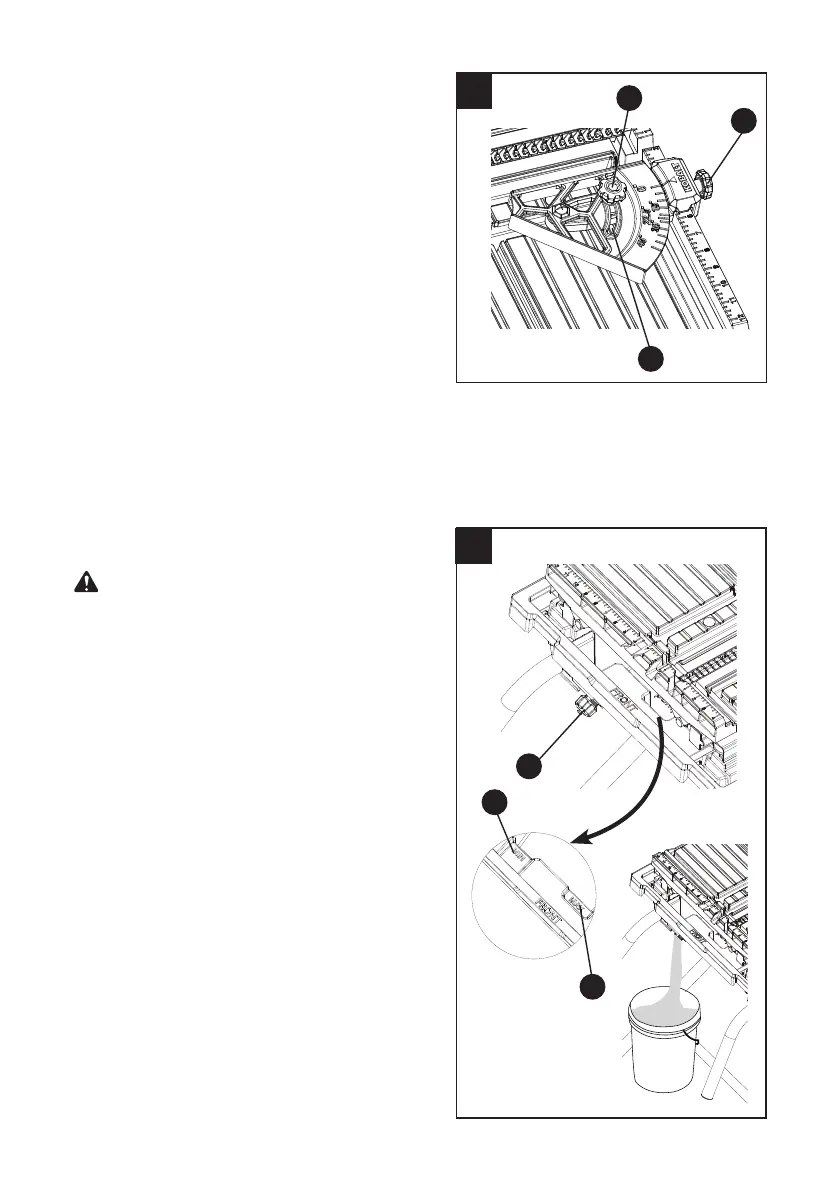

USING THE RIP/ANGLE GUIDE (FIG. 37)
This guide can be placed on either side of the
cutting wheel.
● Loosen the lock knob (1) to move the guide
along the front rail to the desired position and
tighten the lock knob (1).
● Loosen the Rip/Angle guide adjust lock
knob (2) to turn the guide to the desired
angle along the arc slot (3) and then tighten
the Rip/Angle guide adjust lock knob (2).
NOTE: Please make sure the cutting wheel
will not make contact with this guide during the
cutting operation.
2
3
1
FILLING/CHANGING THE WATER RESERVOIR
(FIG. 38)
WARNING: When lling/draining water tray,
make sure wet tile saw is unplugged from
wall outlet.
To ll the reservoir with water
● Make sure the drain plug (DD) on the water
tray is tight.
● Fill the water tray (B) with clean water.
Ensure the water level is between "MAX" (1)
and "MIN" (2) ll lines. Do not overll.
To change the reservoir water
● Disconnect the saw from the power source.
● Place a bucket under the drain plug (DD).
● Remove the drain plug (DD) and empty
waste water into a bucket. Do not allow the
water to splash onto the ground or around
the saw.
● Rinse the water reservoir thoroughly.
● Discard the waste water in accordance with
local regulations.
● Replace the drain plug (DD) and rell water
tray with clean water.
38
DD
2
1
