37

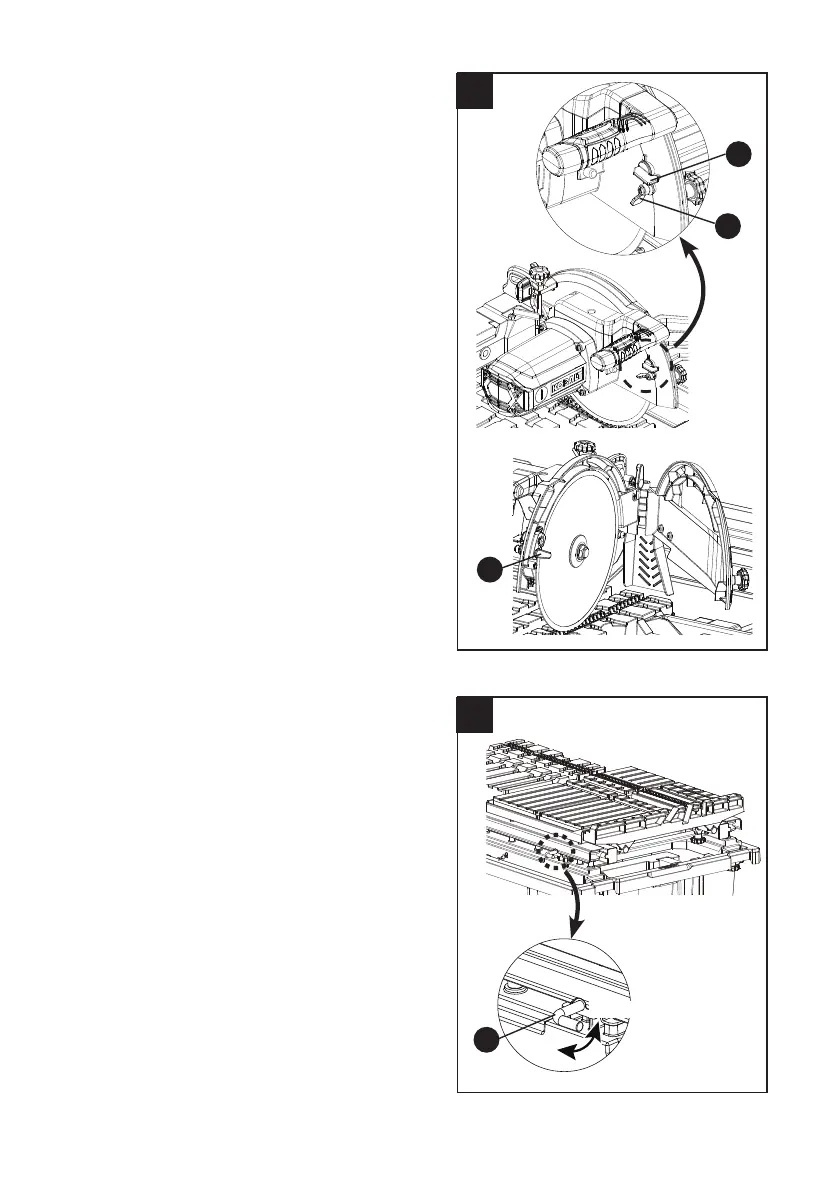

EXTERNAL WATER CONTROLS (FIG. 39)
Water nozzles are adjustable to provide
maximum water for cutting and change water
spray direction.
● The water volume control (Cc) allows easy
adjustment of nozzles (WW) to provide water
volume. To provide maximum water volume,
turn the water volume control (Cc) clockwise.
To provide minimum water volume, turn the
water volume control (Cc) counterclockwise.
● The water angle control (Bb) allows easy
adjustment of nozzles (WW) to desired angle.
LOCKING AND UNLOCKING THE SLIDING
TABLE (FIG. 40)
To unlock the sliding table
● Pull the frame locking lever (EE) out and
turn 90˚ counterclockwise to the “unlocked
position” to unlock the sliding table
.
To lock the sliding table
● Pull the frame locking lever (EE) out and turn
90˚ clockwise to the “locked position”.
● Release the lever.
NOTE: When you push the sliding table, it
will “click” into place. This is the frame locking
lever snapping into a hole in the sliding table
locking it in place.
39
Cc
WW
Bb
un
40
EE
unlock
lock
