Kobalt SC2502LW User Manual

40
44
45

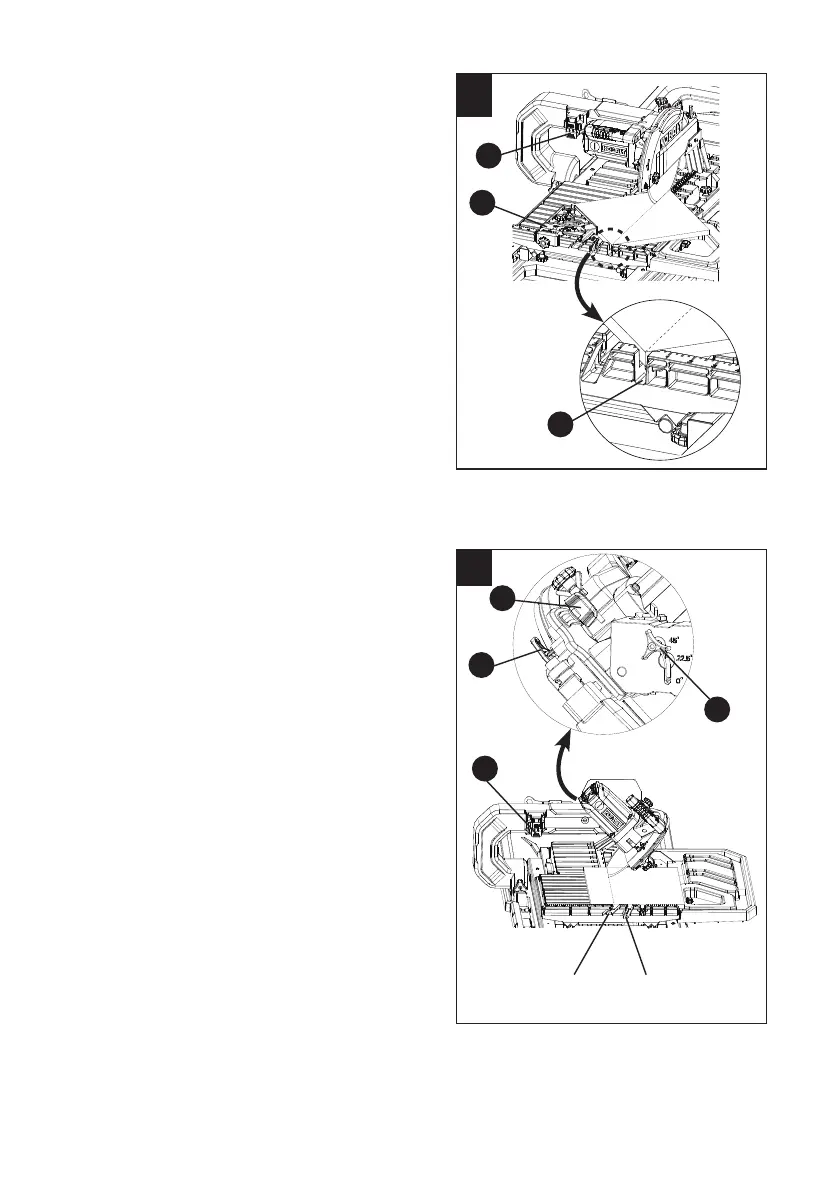

DIAGONAL CUT (FIG. 44)
NOTE: Diagonal cuts are also referred to as
“long point to point cuts.”
● Fill the water tray with clean water.
● Using a pencil or marker mark the area to be
cut on tile.
● Align one point of the tile against the cut
indicator (1) of the sliding table. The cut
indicator means the exact location where the
cutting wheel will pass through the sliding
table.
● Align the front of the tile to the cutting wheel
and hold against the Rip/Angle guide (H),
which should be adjusted to proper angle.
● Pull the ON/OFF switch (HH) upward to turn
the tile saw on to allow the cutting wheel at
the full speed and wait until the stream of
water from the water nozzle completely cover
the cutting wheel.
● Using both hands to slowly push the sliding
table toward the cutting wheel to feed the tile
into the cutting wheel.
● Turn the tile saw o󰀨 once cut is performed.
BEVEL CUT (FIG. 45)
NOTE: Bevel cuts can be made at 22.5 and 45
angles.
● Fill the water tray with clean water.
● Using a pencil or marker marks the area to
be cut on tile.
● Loosen the cutting head lock knob (MM) and
pull out the hold-down latch (SS) to raise the
cutting head up. And then tighten the cutting
head lock knob (MM).
● Loosen the bevel lock knob (PP) to tilt the
cutting head to 22.5° or 45° clockwise.
Tighten the bevel lock knob (PP).
● Loosen the cutting head lock knob (MM) to
lower the cutting head in one of the two miter
slots in the table. Tighten the cutting head
lock knob (MM).
NOTICE: Check to insure the cutting wheel
does not contact the table before turning the
saw on.
● Pull the ON/OFF switch (HH) upward to turn
the tile saw on to allow the cutting wheel at
the full speed and wait until the stream of
water from the water nozzle completely cover
the cutting wheel.
● Using both hands to slowly push the sliding
table toward the cutting wheel to feed the tile
into the cutting wheel.
● Turn the tile saw o󰀨 once cut is performed.
MM
PP
SS
HH
For 45°
bevel cut
For 22.5°
bevel cut
1
H
HH
