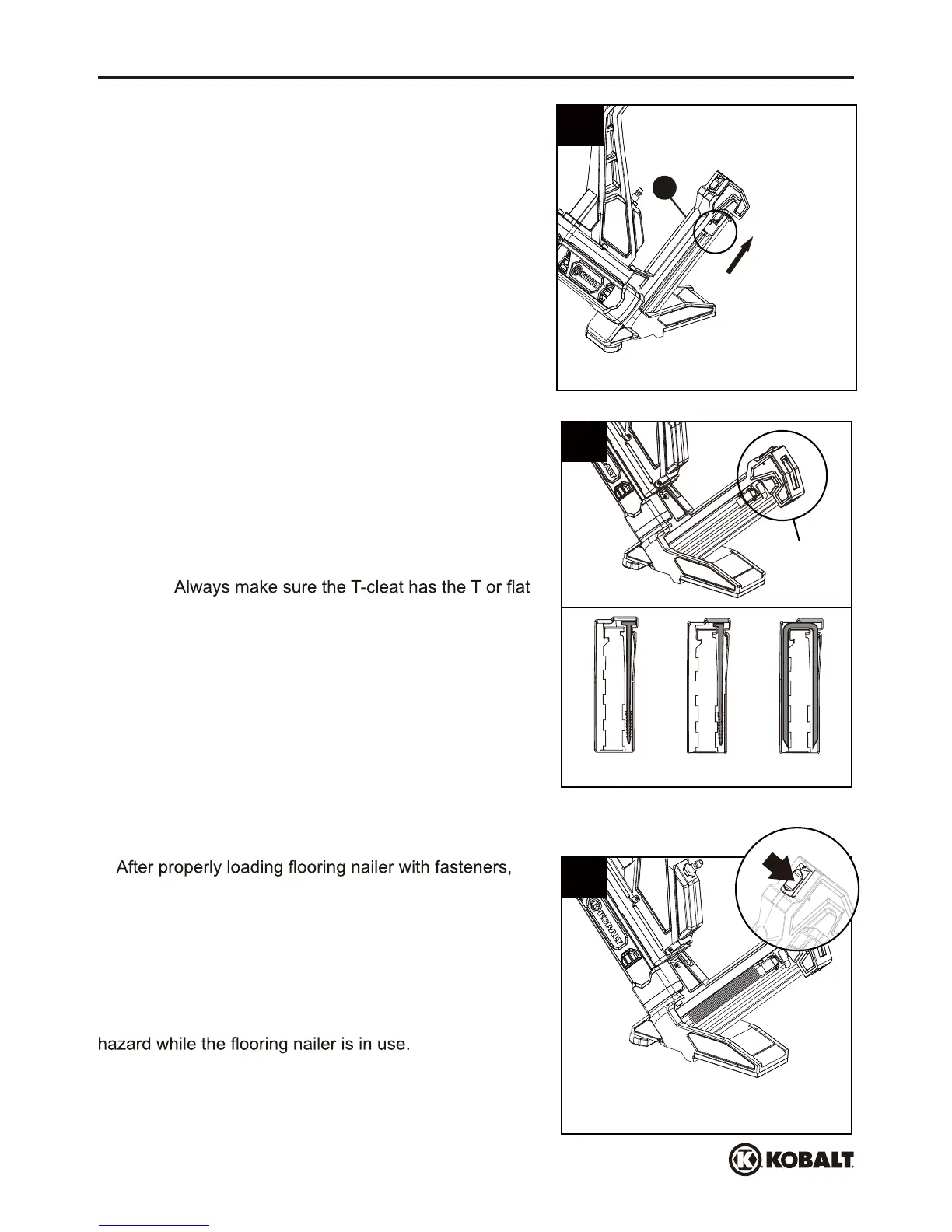

OPERATING INSTRUCTIONS
4. Once the latch is pulled all the way back and is in the
locked position, load the fasteners into the magazine
(see figure 4).
Note: Please make sure that you insert the fasteners
properly into the magazine housing. See below for fastener
descriptions and use the fastener diagram (See Figure 4)
as a guide.
• T-cleat:
part at the top of the magazine housing. Also make sure
that the T-cleat is in the right hand side of the magazine
housing.
• L-cleat: Always make sure that the L-cleat has the short
end of the nail facing to the left of the magazine housing.
• Staples: Load the staples with the two pointed ends
facing down in the magazine housing.
4
T-cleat L-cleat Staple
Locked
position
5.
press the release button (G) to unlock the movable
magazine housing. After the movable housing has
unlocked, it should slide forward and lock the fasteners
in place inside the housing.(See Figure 5)
Note: Once fasteners have been inserted properly, clear
work area so that there is nothing which may cause a
5
3. Pull back on the latch (M) at the base of the
magazine (D) until it locks into position (See Figure 3).
1
Note: NEVER force the fasteners into the housing.
The fasteners should easily slide into place. Forcing
the fasteners into position may cause bending or other
Press
D
3
You will hear a click when latched properly.
damage which can cause a possible misfire or jamming of the flooring nailer.
