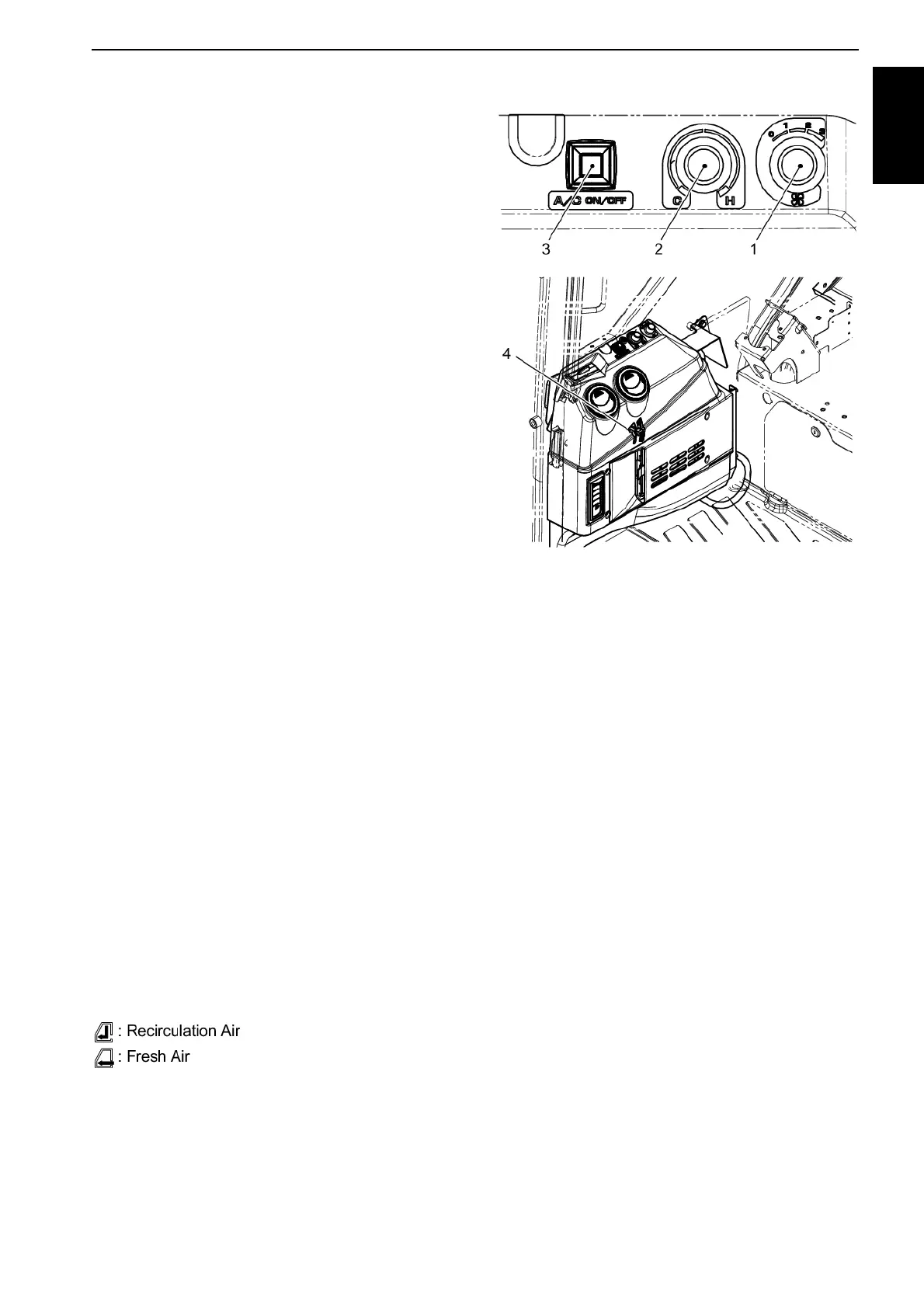

1. Fan Speed Selector Switch
2. Temperature Adjustment Switch
3. Air Conditioner Switch
4. Recirculation and Fresh Air Selector Lever
８
8.2.2 AIR CONDITIONER CONTROL PANEL
FAN SPEED SELECTOR SWITCH
Switches the fan speed of the air conditioner.
0: Stop
1: Low
2: Medium
3: High
TEMPERATURE ADJUSTMENT SWITCH
Controls the temperature for cooling and heating.
The set temperature is adjusted by turning the knob.
The temperature goes down by turning the knob left and goes up by turning the knob right.
AIR CONDITIONE R SWITCH
Operates the air conditioner (compressor) when the fan speed selector switch is set to 1, 2 or 3.
The green lamp of this switch is lit when the air conditioner is running.
RECIRCULATION AND FRES H AIR SELECTO R LEVER
Switches between air recirculation and fresh air.
ï¼»
8. OPTIONAL EQUIPMENT
ï¼½
8-17
