Page #14 background imageLoading...
Page #14 background image
42
42
42
F3
F2
F4
RE1
RE2
RE3
RE4
RE5
RE6
RE7
RE8
500mA
F5
500mA
Output to MORSE LIGHT
Mains for
MORSE LIGHT and TYFON.
230V AC
External
MORSE LIGHT
switch type
TL-70
External
TYFON
switch type
TL-80 or
TL-85
External
start button
for automatic
TYFON type
TL-80 or
TL-85

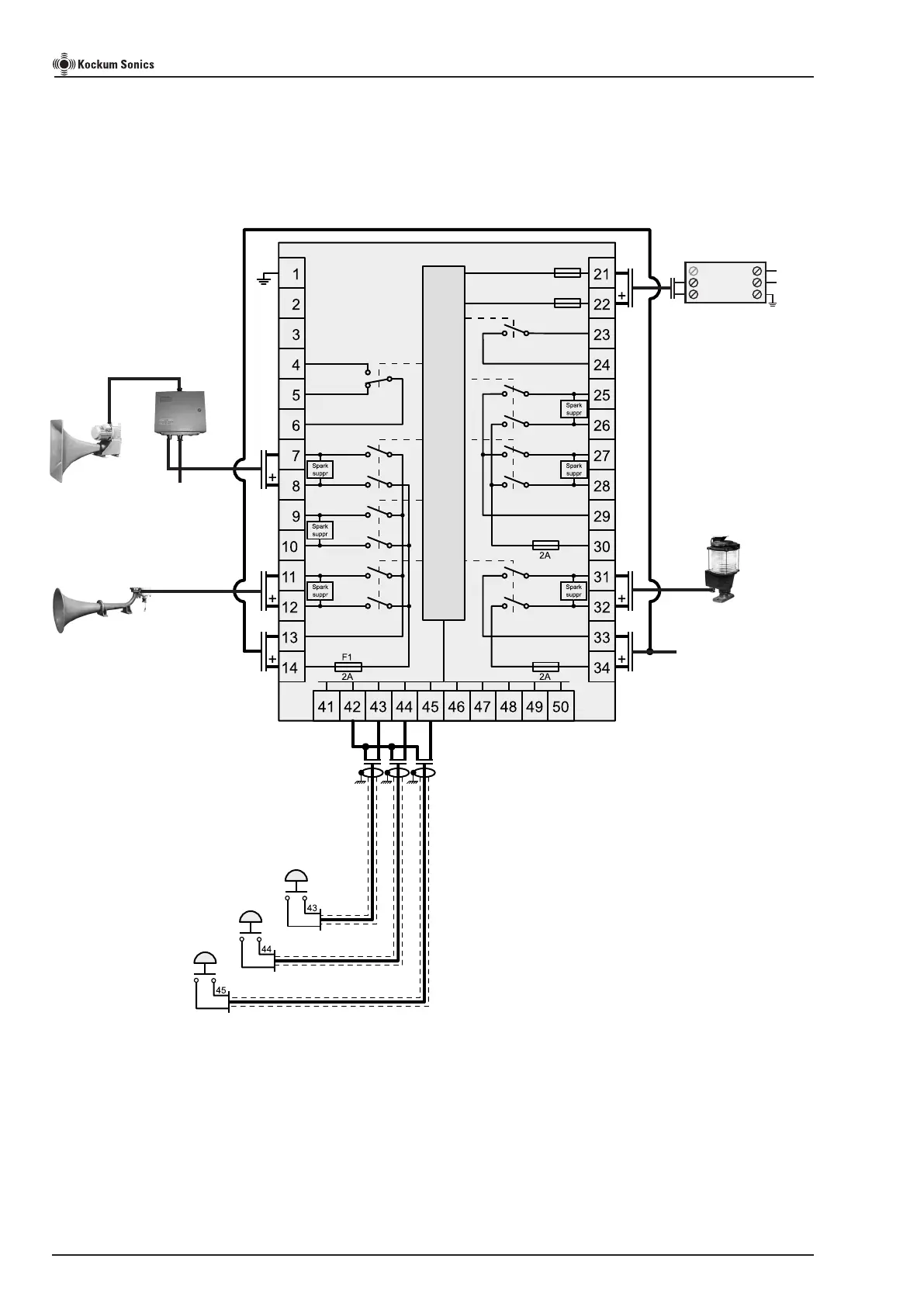

Typical external wiring diagram for Signal Controller with connected units for (230V AC)
For two TYFON whistles and MORSE LIGHT.
> 100 m distance between whistles
Signal Controller
TLG2000
Control Unit
All cables to be shielded and shield connected to ships ground.
For details of external switch terminal markings, see page 10.
Output to Aft SUPERTYFON
Output to
Fore ELECTRO-TYFON
distance between whistles > 100m
Powersupply
to TYFON
230V AC
for TLG2000
electronics
Page 12 of 20
TLG2000 Signal Controller Instruction Manual
AC/DC converter
+V
-V
L
N
P
ref no. 20142028
see page 16 for details
