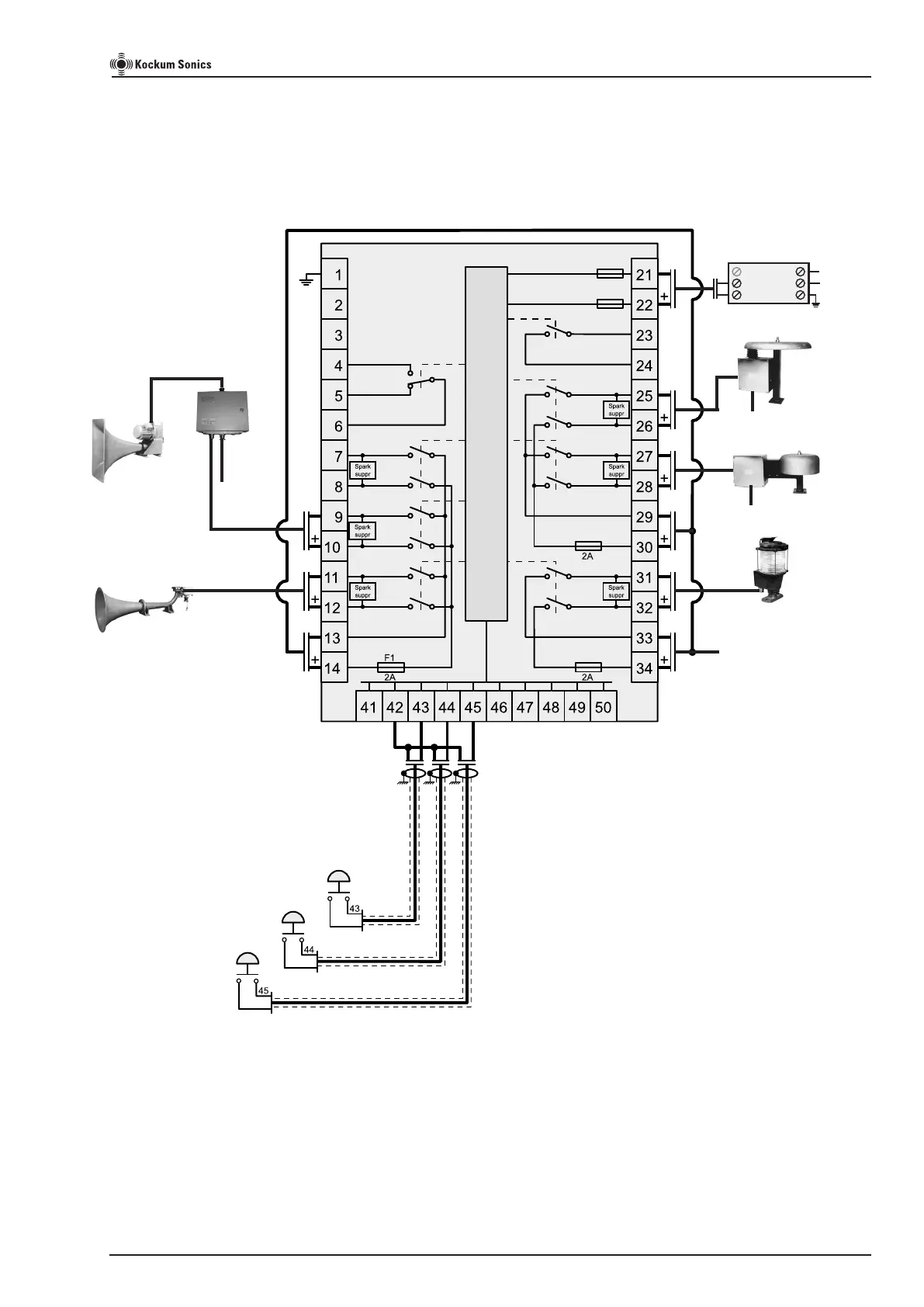

Typical external wiring diagram for Signal Controller (115V AC system)
For two TYFON whistles, MORSE LIGHT and BELL and GONG
=< 100 m distance between whistles
Output to MORSE LIGHT
Powersupply to GONG
Powersupply to BELL
Signal Controller
TLG2000
Control Unit
All cables to be shielded and shield connected to ships ground.
For details of external switch terminal markings, see page 10.
Mains for
MORSE LIGHT, BELL and
GONG and TYFON.
115V AC
Page 13 of 20
TLG2000 Signal Controller Instruction Manual
115V AC
for TLG2000
electronics
AC/DC converter
+V
-V
L
N
P
ref no. 20142028
see page 16 for details
Output to Aft SUPERTYFON
Output to
Fore ELECTRO-TYFON
distance between whistles <= 100m
Powersupply
to TYFON
