Kockum Sonics TLG2000 - External Wiring Diagram: 24 V DC System (ETD); ETD 100;350, MTK 250, MORSE LIGHT Configuration

F3
F2
F4
RE1
RE2
RE3
RE4
RE5
RE6
RE7
RE8
42
42
42
500mA
F5
500mA
Output to MORSE LIGHT
External
MORSE LIGHT
switch type
TL-70
External
TYFON
switch type
TL-80 or
TL-85
External
start button
for automatic
TYFON type
TL-80 or
TL-85

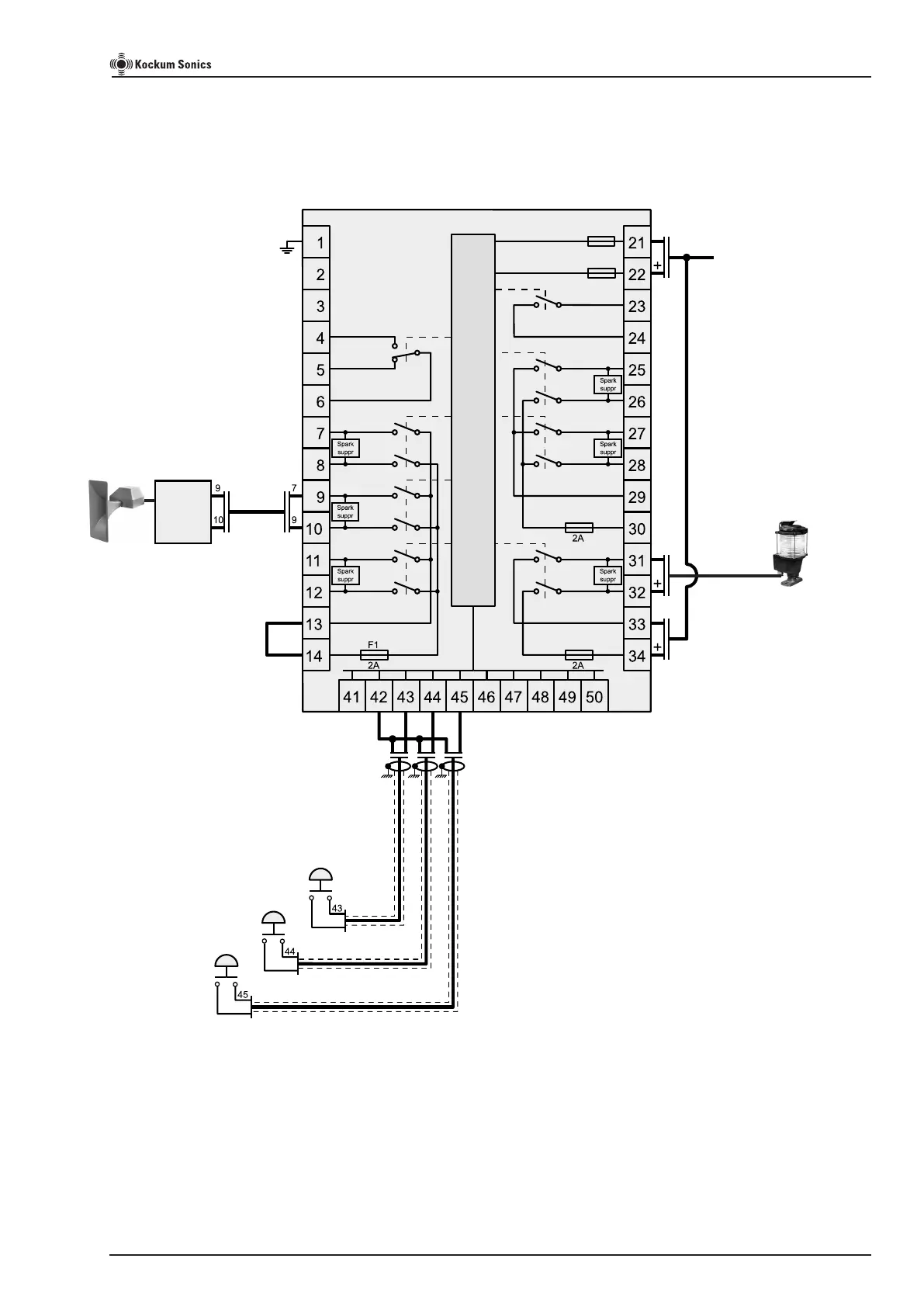

Typical external wiring diagram for Signal Controller (24V DC system)
For one ETD 100/350 electronic TYFON whistle with MTK 250 amplifier and a MORSE LIGHT
Jumper
Note! The amplier MTK 250
could also be connected as an
Aft TYFON whistle and should
in that case be connected to
terminal 7 and 8.
For more information how to
connect ETD 100/350 and
MTK 250 see leaet KSM 276
Signal Controller
TLG2000
Control Unit
All cables to be shielded and shield connected to ships ground.
For details of external switch terminal markings, see page 10.
24V DC power supply for
TLG2000 and MORSE LIGHT
Page 15 of 20
TLG2000 Signal Controller Instruction Manual
ETD 100/350 MTK 250
IMPORTANT! See page 8 for
correct supply connection.
