tSelections of auto repeat time.
With this push button selection of auto repeat
interval can be done.
It will toggle between the four repeat intervals
available.
• 120 seconds between characters
• 90 seconds between characters
• 60 seconds between characters
• 40 seconds between characters (use only for
air driven whistle)

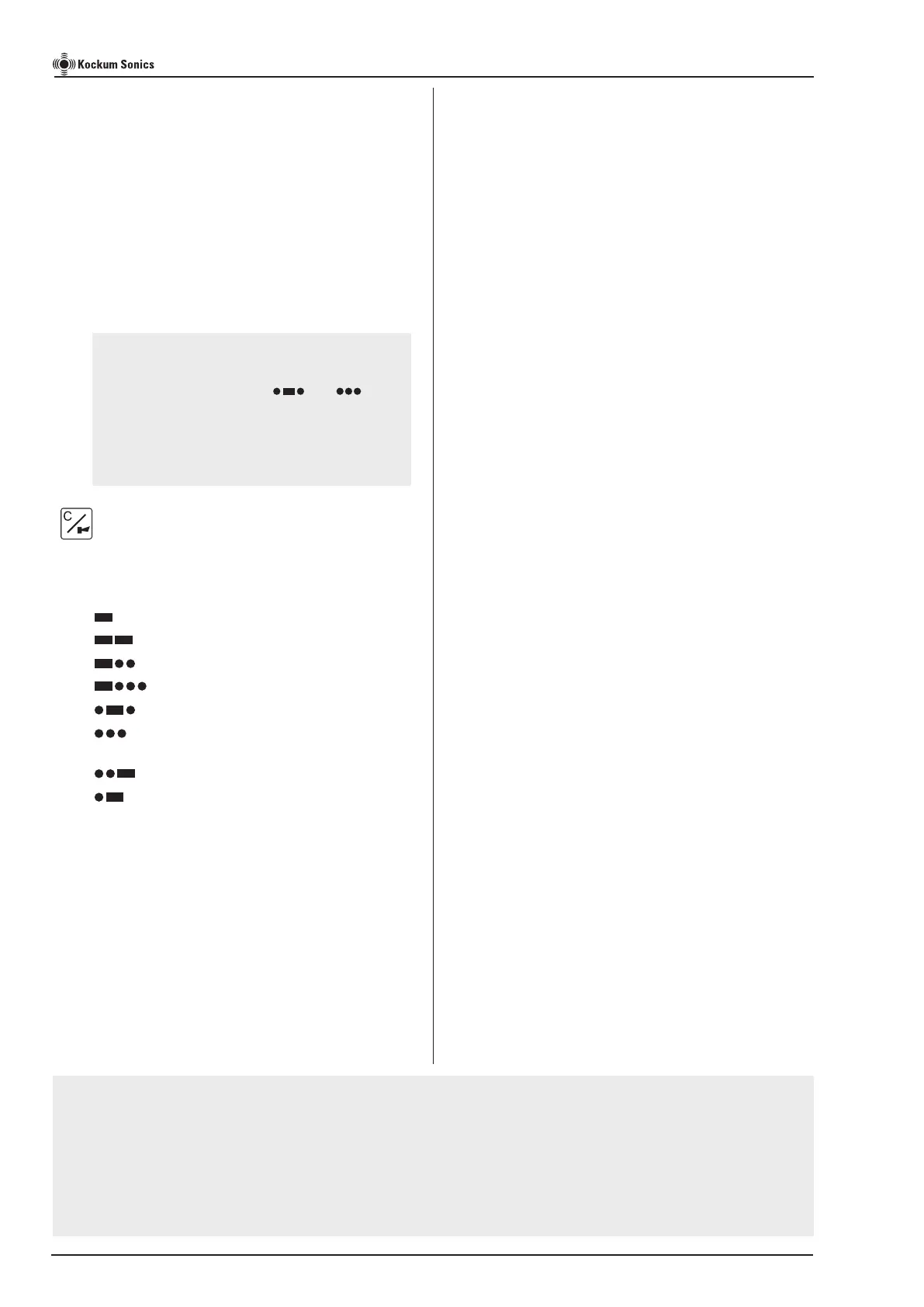

Selections of TYFON character.
Pressing one of the eight push buttons will select
this character and it will be displayed on the LED bar
indicator for sound character.
1. Making way through the water
2. Not making way through the water
3. Vessel not under command
4. Vessel being towed
5. Vessel at anchor
6. Great Lakes and St Lawrence
Seaways, fog signal
7. Vessel aground‘
8. Keep clear (inland)
The controller also has a relay with a change-over
contact function that is activated when a TYFON
signal goes out from the controller.
(See wiring diagram).
Example.
How do I change the auto repeat time?
1. Be sure to turn off the automatic TYFON
activation by pressing the w button.
Wait until the automatic TYFON activation has
finished.
2. Press thet button until the desired repeat
time is chosen.
3. Press the w for automatic TYFON activation.
How do I select aft or fore TYFON?
1. Be sure to turn off the automatic TYFON activa-
tion by pressing the w button.
Wait until the automatic TYFON activation has
finished.
2. Press thee button until the desired TYFON
is chosen.
3. Press the w for automatic TYFON activation.
How do I synchronize TYFON and MORSE
LIGHT activation?
1. Be sure to turn off the automatic TYFON activa-
tion by pressing the w button.
Wait until the automatic TYFON activation has
finished.
2. Press ther button. The MORSE LIGHT symbol
will lit on the TYFON section.
To turn it off, just press the r button again.
3. Press the w for automatic TYFON activation.
I can’t change the parameters for TYFON
section.
1. Be sure to turn off the automatic MORSE LIGHT
activation by pressing the w button.
Wait until the automatic MORSE LIGHT activa-
tion has finished.
M
Two or more Whistles? Extract from IMO Regulations:
1. If the whistles are fitted at a distance apart of more than 100 metres, it shall be so arranged that they are
not sounded simultaneously.
2. Combined whistle system are to be arranged when one single whistle is likely to have a zone of greatly
reduced signal level, due to the presence of obstructions.
3. If the whistle are to be used as a combined system - fitted at a distance apart of not more than
100 metres - they shall be arranged to be sounded simultaneously. The frequency of any of the whistles
shall differ from those of the others by at least 10 Hz.
Page 4 of 20
N
Note!
• According to IMO regulations the repeat
time for sound character and is
always 60 seconds and not selectable.
• The repeat time means the start of the
selected character to the next start of the
same character.
TLG2000 Signal Controller Instruction Manual
TYFON active output.
A dry switch-over relay contact (terminal 4-6) is
activated when the TYFON is activated.
This could be used as a mute function for external
Sound Signal Surveillance System like our S90 or
S900 system.
