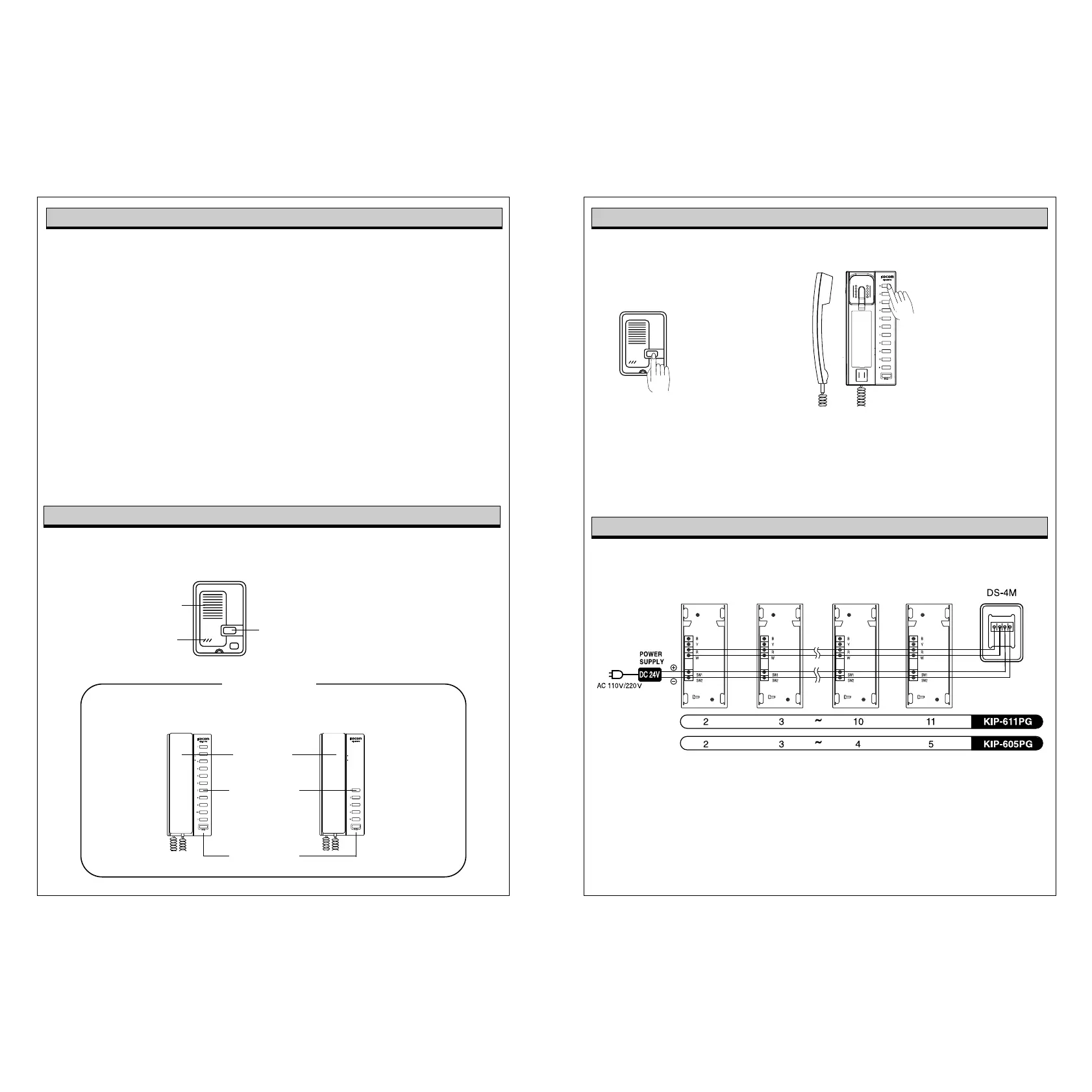

KOCOM DS-4M - Product Specifications and Features; Component Identification; Operating Instructions; Wiring Diagram

Speaker
Handset
Paging
KIP-611PG
(※OPTION)
KIP-605PG
Call Button
Call Button
C-Mic
POWER : DC 24V(1.2A) / POWER FROM INTERPHONE
CONSUMPTION : UN LOAD ; 0.3W IN LOAD ; 1.0W
NO.OF WIRES : 4WIRED PARALLEL
(VOICE,CALLING, POWER, GND)
RANGE: TIV 0.6 (1Km)
※ 1Km(When additional DC 24V adaptor is installed)
��
COMPOSITION :
- OUT DOOR PANEL ( DS-4M)
- MULTIPLE INTERPHONE (KIP-611PG/605PG) ※Option
- ADAPTOR ※Option
SPECIFICATION & FEATURES
How to operate (Instruction for operating)
Wiring Diagram
Name of Each Part
You can make
a call pressing
call button.
Pick-up the hand-set and press NO.1 button
for conversation with DS-4M
Receiving
Call
※ When using DS-4M with KIP-611PG or KIP-605PG it should be No.1 in DIP switch.
So KIP-611PG or KIP-605PG can not be set as No.1 in dip switch.
DS-4M
