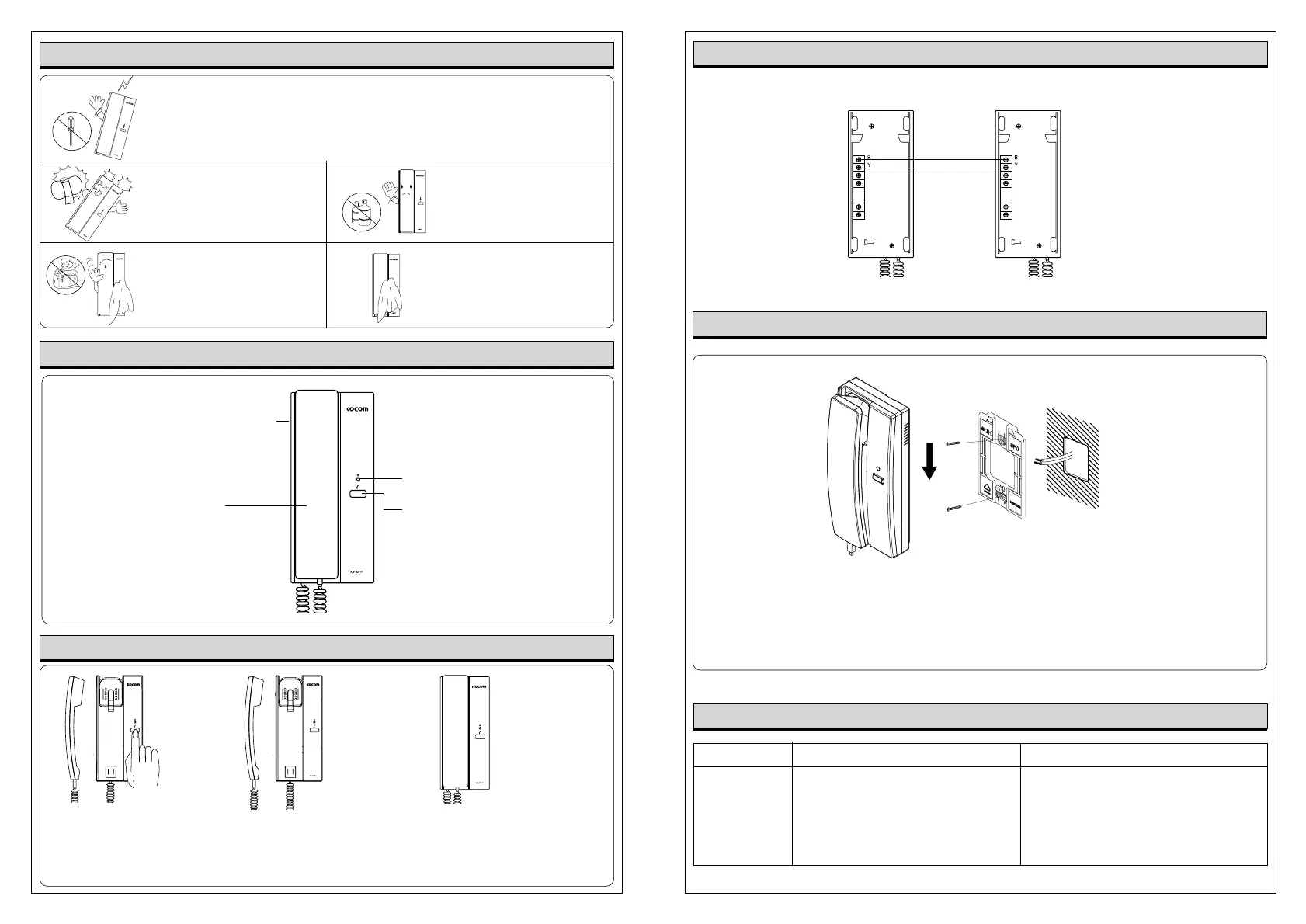

KOCOM KIP-601PM - Precautions for Operation; Product Components; Operating Instructions; Installation Guide

Power Lamp
Call Button
Handset
A- Choose a place on the wall where you want to hang the Indoor station.
B- Fasten the wall hanger on the wall.
C- Indoor station can be hung on the wall hanger easily now.
Pick up the handset and communicate
with a visitor. After end of communication,
return the handset where it is locked
The sub station is
ringing.
B
E
N
Z
E
N
E
T
H
I
N
N
E
R
Keep away from humidifier and
stove. High temperature and
humidity can cause malfunction
When cleaning, never use wet
hands, volatile benzene or paint
thinner.
Maintain the product clear by
frequently cleaning with soft
cloths
As this device consists of precise electronic components, and high voltage is generated
internally, do not attempt to disassemble.
Do not drop lndoor station, and
avoid strong impact.
Precautions for Operation
Installation
Specifications
How to operate (Instruction for operating)
Name of Each Part
When a visitor
pushes the main
station bell,
Wring Diagram
Description KIP-601PM KIP-601PS
Electric source DC 6V Power from Main (KIP-601PM)
Consumption Un Load: 0.2mW, In Load: 1W Un Load: 0.2mW, In Load: 1W
Signal Sound Electronic Chime Electronic Chime
Wiring 2Wired polarity 2Wired polarity
Range 300m( 0.65mm) 300m(  0.65mm)
POLARITY
Volume
Switch
(KIP-601PM)
