Kodak 220 User Manual

TAPE PAUSE/RESTART
BUTTON
(Also used for
recording program-
pause signals.)

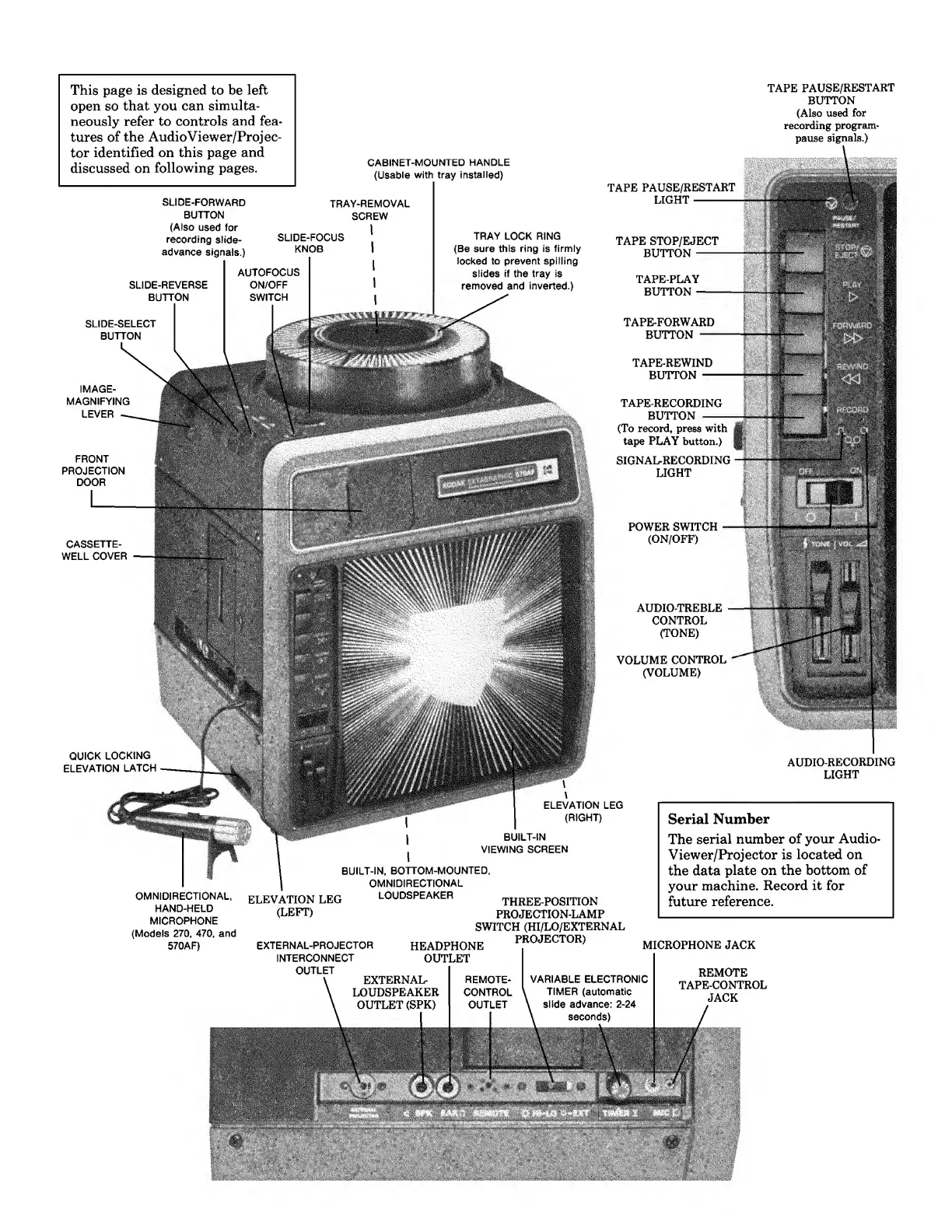

This page is designed to be left
open so that you can simulta¬
neously refer to controls and fea¬
tures of the AudioViewer/Projec¬
tor identified on this page and
discussed on following pages.
CABINET-MOUNTED HANDLE
(Usable with tray installed)
TAPE PAUSE/RESTART
LIGHT-
SLIDE-FORWARD
BUTTON
(Also used for
recording slide-
advance signals.)
TRAY-REMOVAL
SCREW
TRAY LOCK RING
(Be sure this ring is firmly
locked to prevent spilling
slides if the tray is
removed and inverted.)
SLIDE-FOCUS
KNOB
TAPE STOP/EJECT
BUTTON-
AUTOFOCUS
ON/OFF
SWITCH
TAPE-PLAY
BUTTON -
SLIDE-REVERSE
BUTTON
TAPE-FORWARD
BUTTON —
SLIDE-SELECT
BUTTON
TAPE-REWIND
BUTTON —
IMAGE-
MAGNIFYING
LEVER
TAPE-RECORDING
BUTTON -
(To record, press with
tape PLAY button.)
SIGNAL-RECORDING
LIGHT
FRONT
PROJECTION
DOOR
POWER SWITCH
(ON/OFF)
CASSETTE-
WELL COVER
AUDIO-TREBLE
CONTROL
(TONE)
VOLUME CONTROL
(VOLUME)
QUICK LOCKING
ELEVATION LATCH
AUDIO-RECORDING
LIGHT
ELEVATION LEG
(RIGHT)
Serial Number
The serial number of your Audio-
Viewer/Projector is located on
the data plate on the bottom of
your machine. Record it for
future reference.
BUILT-IN
VIEWING SCREEN
BUILT-IN, BOTTOM-MOUNTED,
OMNIDIRECTIONAL
. LOUDSPEAKER
OMNIDIRECTIONAL,
HAND-HELD
MICROPHONE
(Models 270, 470, and
570AF)
ELEVATION LEG
(LEFT)
THREE-POSITION
PROJECTION-LAMP
SWITCH (HI/LO/EXTERNAL
HEADPHONE PROJECTOR) MICROPHONE JACK
OUTLET I
EXTERNAL-PROJECTOR
INTERCONNECT
OUTLET
REMOTE
TAPE-CONTROL
VARIABLE ELECTRONIC
TIMER (automatic
L siide advance: 2-24
\ seconds)
EXTERNAL-
LOUDSPEAKER
OUTLET (SPK)
CONTROL
OUTLET
