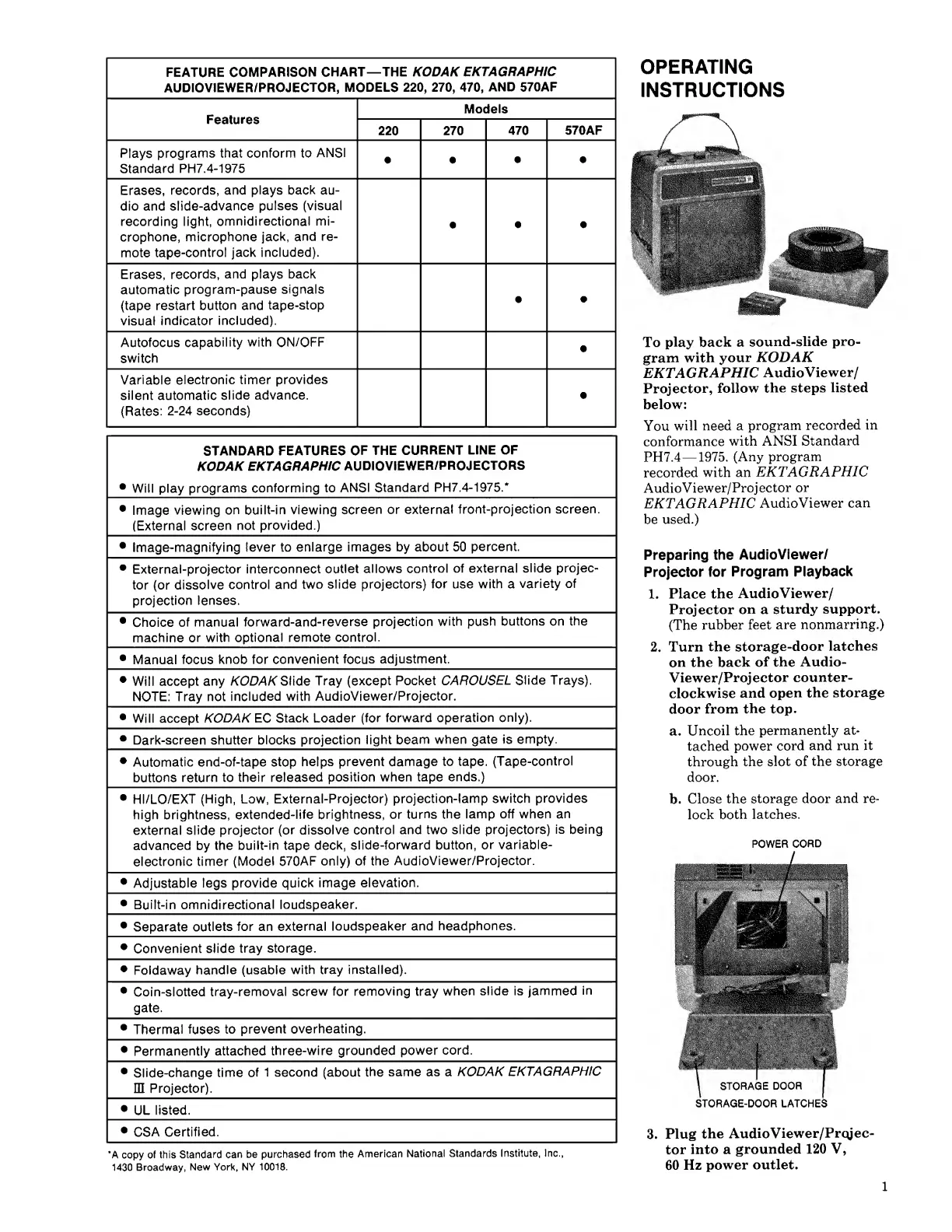

FEATURE
COMPARISON
CHART—THE
KODAK
EKTAGRAPHIC
AUDIOVIEWER/PROJECTOR,
MODELS
220,
270,
470,
AND
570AF
Features
Models
220
270
470
570AF
Plays
programs
that
conform
to
ANSI
Standard
PH7.4-1975
Erases,
records,
and
plays
back
au¬
dio
and
slide-advance
pulses
(visual
recording
light,
omnidirectional
mi¬
crophone,
microphone
jack,
and
re¬
mote
tape-control
jack
included).
Erases,
records,
and
plays
back
automatic
program-pause
signals
{tape
restart
button
and
tape-stop
visual
indicator
included).
Autofocus
capability
with
ON/OFF
switch
Variable
electronic
timer
provides
silent
automatic
slide
advance.
(Rates:
2-24
seconds)
STANDARD
FEATURES
OF
THE
CURRENT
LINE
OF
KODAK
EKTAGRAPHIC
AUDIOVIEWER/PROJECTORS
Will
play
programs
conforming
to
ANSI
Standard
PH7.4-1975.*
viewing
on
built-in
viewing
screen
or
external
front-projection
screen.
(External
screen
not
provided.)
Image-magnifying
lever
to
enlarge
images
by
about
50
percent.
External-projector
interconnect
outlet
allows
control
of
external
slide
projec¬
tor
(or
dissolve
control
and
two
slide
projectors)
for
use
with
a
variety
of
projection
lenses.
Choice
of
manual
forward-and-reverse
projection
with
push
buttons
on
the
machine
or
with
optional
remote
control.
Manual
focus
knob
for
convenient
focus
adjustment.
Will
accept
any
KODAK
Slide
Tray
(except
Pocket
CAROUSEL
Slide
Trays).
NOTE:
Tray
not
included
with
AudioViewer/Projector.
Will
accept
KODAK
EC
Stack
Loader
(for
forward
operation
only).
Dark-screen
shutter
blocks
projection
light
beam
when
gate
is
empty.
Automatic
end-of-tape
stop
helps
prevent
damage
to
tape.
(Tape-control
buttons
return
to
their
released
position
when
tape
ends.)
HI/LO/EXT
(High,
Low,
External-Projector)
projection-lamp
switch
provides
high
brightness,
extended-life
brightness,
or
turns
the
lamp
off
when
an
external
slide
projector
(or
dissolve
control
and
two
slide
projectors)
is
being
advanced
by
the
built-in
tape
deck,
slide-forward
button,
or
variable-
electronic
timer
(Model
570AF
only)
of
the
AudioViewer/Projector.
Adjustable
legs
provide
quick
elevation.
Built-in
omnidirectional
loudspeaker.
Separate
outlets
for
an
external
loudspeaker
and
headphones.
Convenient
slide
tray
storage.
Foldaway
handle
(usable
with
tray
installed).
Coin-slotted
tray-removal
screw
for
removing
tray
when
slide
is
jammed
in
gate.
Thermal
fuses
to
prevent
overheating.
Permanently
attached
three-wire
grounded
power
cord.
Slide-change
time
of
1
second
(about
the
same
as
a
KODAK
EKTAGRAPHIC
in
Projector).
UL
listed.
CSA
Certified.
*A
copy
of
this
Standard
can
be
purchased
from
the
American
National
Standards
Institute,
Inc.,
1430
Broadway,
New
York,
NY
10018.
OPERATING
INSTRUCTIONS
To
play
back
a
sound-slide
pro¬
gram
with
your
KODAK
EKTAGRAPHIC
AudioViewer/
Projector,
follow
the
steps
listed
below:
You
will
need
a
program
recorded
in
conformance
with
ANSI
Standard
PH7.4
—1975.
(Any
program
recorded
with
an
EKTAGRAPHIC
Audio
Viewer/Projector
or
EKTAGRAPHIC
AudioViewer
can
be
used.)
Preparing
the
AudioViewer/
Projector
for
Program
Playback
1.
Place
the
AudioViewer/
Projector
on
a
sturdy
support.
(The
rubber
feet
are
nonmarring.)
2.
Turn
the
storage-door
latches
on
the
back
of
the
Audio-
Viewer/Projector
counter¬
clockwise
and
open
the
storage
door
from
the
top.
a.
Uncoil
the
permanently
at¬
tached
power
cord
and
run
it
through
the
slot
of
the
storage
door.
b.
Close
the
storage
door
and
re¬
lock
both
latches.
POWER
CORD
3.
P
lug
the
AudioViewer/Prqjec-
tor
into
a
grounded
120
V,
60
Hz
power
outlet.
