SERVICE MANUAL
12 30APR96 – SM4530-1
Replacing the CYCLE SOLENOID ASSEMBLY
Warning
Dangerous Voltage
[1] Disconnect the main power.
[2] Do the replacement procedures for the LOWER
HOUSING ASSEMBLY and the MOTOR.
[3] Cut and remove the necessary WIRE TIES.
[4] Disconnect the 2 wires from the CYCLE
SOLENOID on the SMALL CIRCUIT BOARD.
[5] Pull the SMALL CIRCUIT BOARD up.
[6] Remove the
Torx
SCREW (for N.P. models) (or
Hex SCREW for Painted Models) from the WORM
PULLEY SHAFT.
[7] Move the TAB on the WORM PULLEY
ASSEMBLY out of the MECHANISM ASSEMBLY.
[8] Lift and remove the WORM PULLEY ASSEMBLY.
[9] Remove the 2
Torx
1/4 in. SCREWS from the 2
CYCLE SOLENOID GROMMETS.
[10] Pull the CYCLE SOLENOID ASSEMBLY up and
out.
[11] If necessary, remove the CYCLE SOLENOID
PLUNGER ASSEMBLY.
Installing the CYCLE SOLENOID ASSEMBLY
Important
Do the adjustment for the CYCLE SOLENOID ASSEMBLY. See the Adjustments section.
[1] Do the replacement procedure for the CYCLE SOLENOID ASSEMBLY in reverse order.

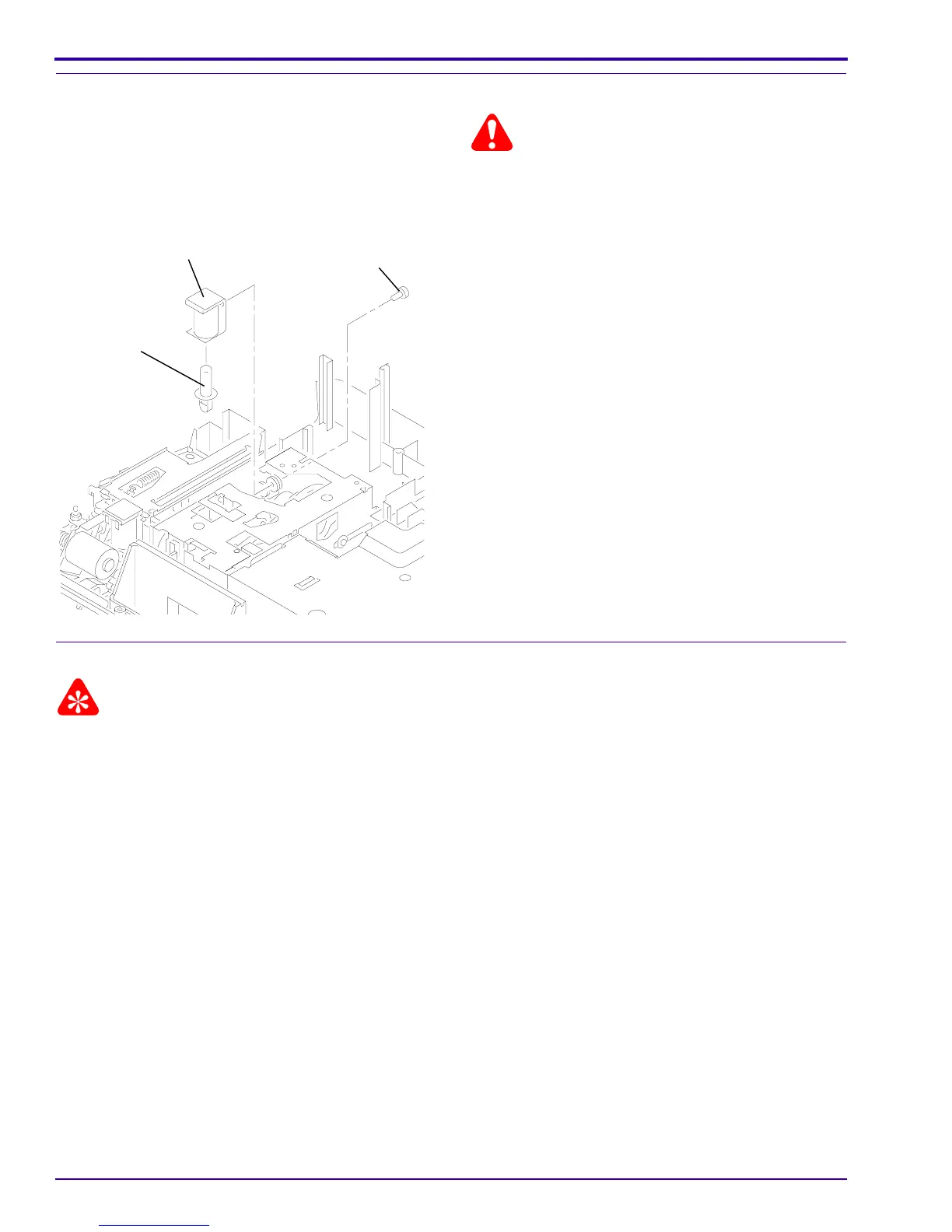

A100_0017GA
PLUNGER
SOLENOID
CYCLE
CYCLE SOLENOID
SCREW (2)
A100_0017GCA
To Next Page
