TP-5592 7/96 Installation 6-9
Mount seawater strainer of sufficient capacity to
seacock or permanent structure at a point not higher
than seawater pump. Ensure that the strainer is
accessible for servicing. See Figure 6-9 for a typical
installation.
NOTE
Some seawater strainers include seacock and intake
through-hull strainer.
1
2
3
1-789
1. Seawater pump
2. Seawater strainer
3. Seacock

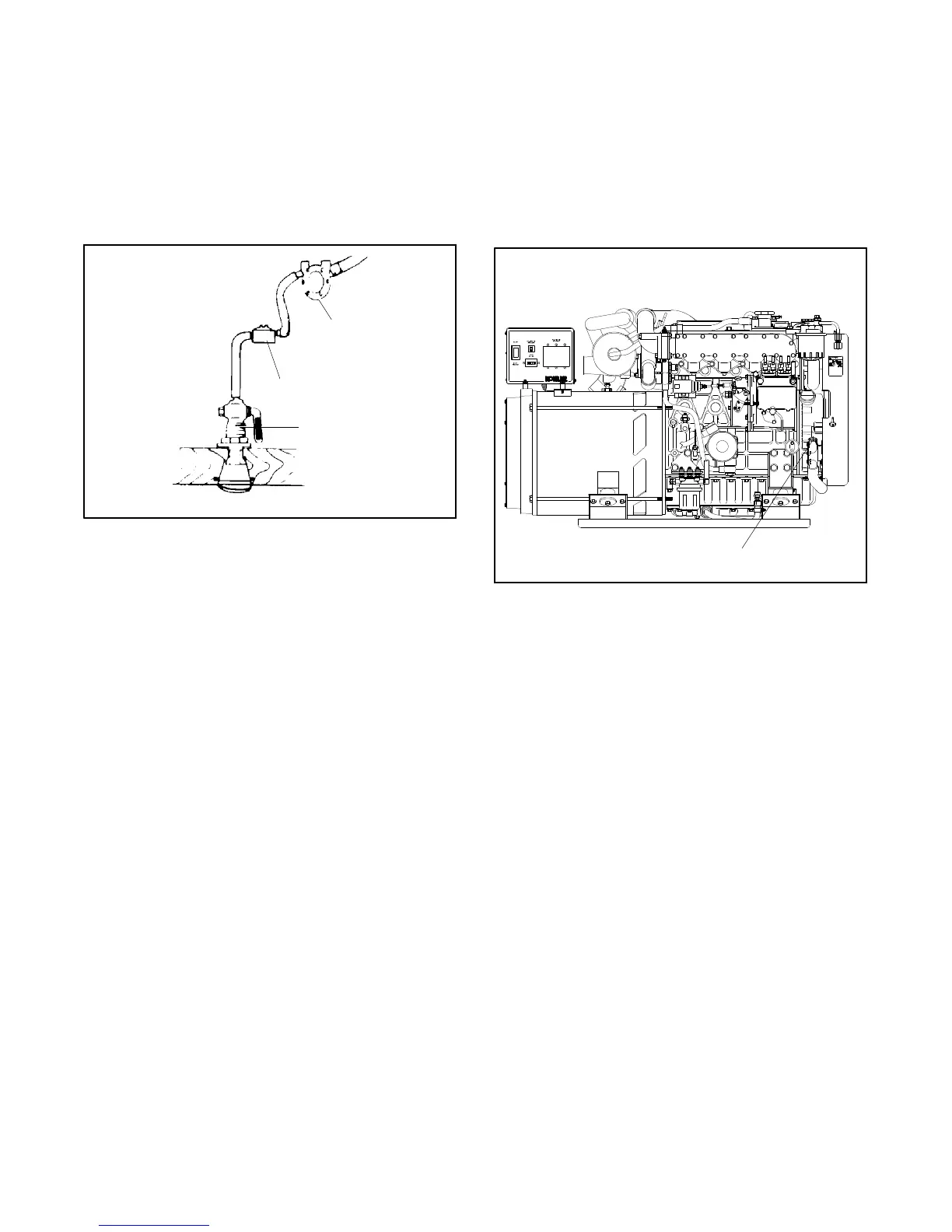

Figure 6-9. Seawater Strainer
Waterlines from seacock to engine-driven seawater
pump are usually flexible hose. Reference ABYC
Standard P-1 for acceptable exhaust hose materials. If
using a non-flexible waterline, a flexible section of hose
isnecessary to allow vibrational motionof the generator
set during operation. Support a nonflexible waterline
within 4 in. (102 mm) of its connection to the flexible
section.
Keep pipes as straight and as short as possible. If the
pipe is too long, water draw problems may occur. To
remedy some problems with long pipe runs (usually
over 15 ft [4.6 m]), increase the hose size to the next
standard pipe diameter. Example: substitute 3/4 in.
hose for 5/8 in. See Section 1—Specifications for inlet
water line hose size. See Figure 6-10 for seawater
connectiontoseawaterpumpinlet. The seawateroutlet
combines with engine exhaust gases.
ADV-5853-A
1
1. Seawater pump inlet
Figure 6-10. Seawater Inlet Connection (Typical)
