TP-6519 8/17 59Section 5 Component Testing and Adjustment
Display : *
or

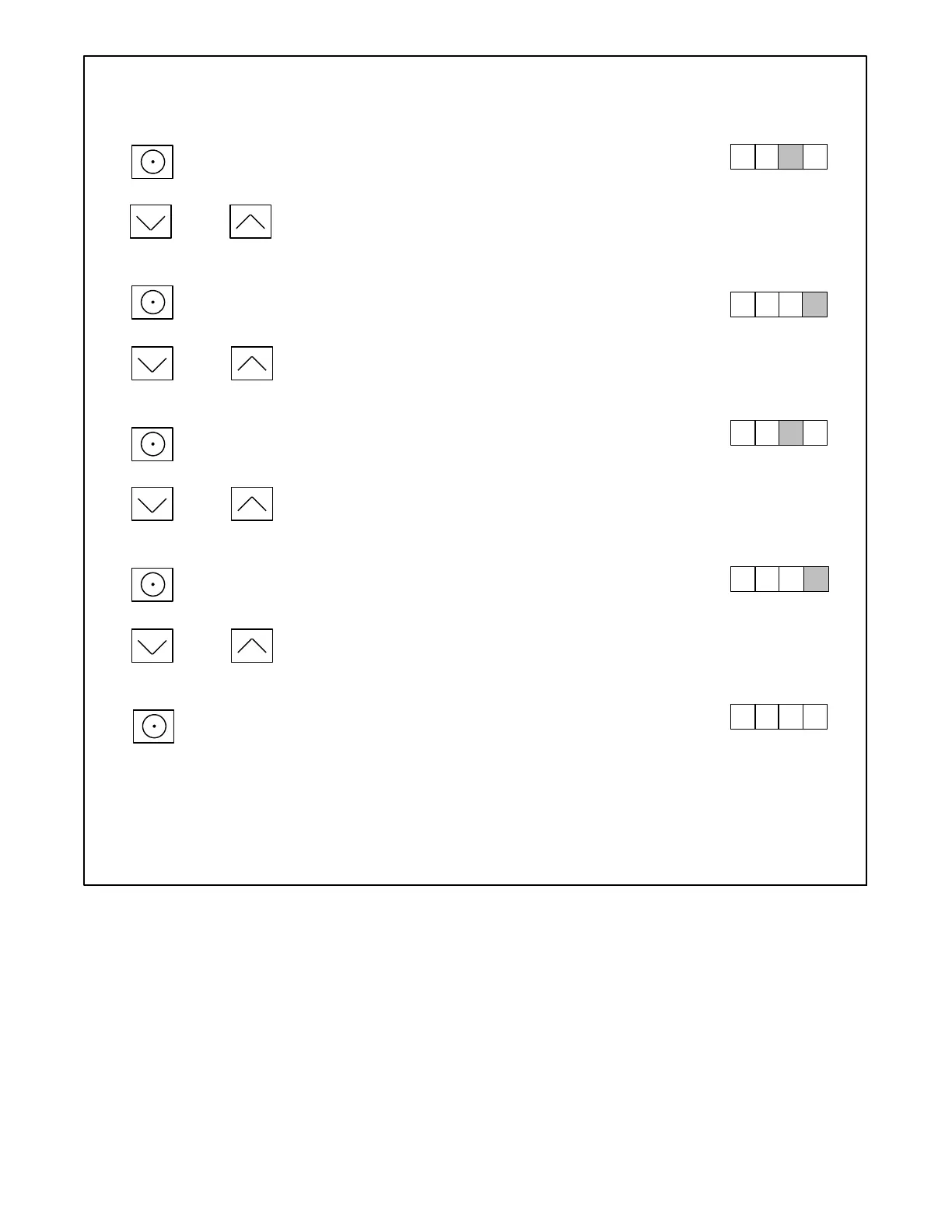

To enter engine governor speed coarse adjustment
mode. (Parameter 4P)
To raise or lower the engine speed in large
increments.
To enter engine governor stability (gain) coarse
adjustment mode. (Parameter 5P)
To raise or lower the engine governor stability (gain)
in large increments.
To enter engine governor speed fine
adjustment mode. (Parameter 4P)
To raise or lower the engine speed in smaller
increments.
To enter engine governor stability (gain) fine
adjustment mode. (Parameter 5P)
To raise or lower the engine governor stability (gain)
in smaller increments.
4 P
4 P
or
or
or
Continued from Figure 5-19:
Press:
5 P
5 P
* Shaded boxes show which character in the controller display changes for each adjustment. X in the
examples above denotes any number from 0 to 9. The actual values may vary from model-to-model.
S A V E
To enter SAVE mode. Go to Figure 5-21.
x x
xx
x x
xx
Note: Be sure to save your settings before exiting the configuration mode. The controller reverts to
the last saved settings when the master switch is moved to the OFF/RESET position.
