TP-6519 8/17 83Section 6 Disassembly/Reassembly
15. Reinstall the enclosure panels in reverse order of
removal. See Figure 6-27 and refer to the
disassembly instructions, if necessary.
a. Install the rear (alternator end) housing panel.
b. Install the left (non-service side) housing panel.
c. Install the heat shield over the muffler.
d. Install the front panel.
e. Install the generator set housing service side
door.
f. Install the generator set housing roof.
16. Reconnect the 120VAC power supply to the
generator set.
17. Turn on the fuel supply. Move the generator set
master switch to the RUN position and check for
leaks with the engine running.
18. Move the generator set master switch to the OFF/
RESET position. Move the switch to the AUTO
position if an automatic transfer switch or remote
start/stop switch is used.
19. Lower and secure the roof.

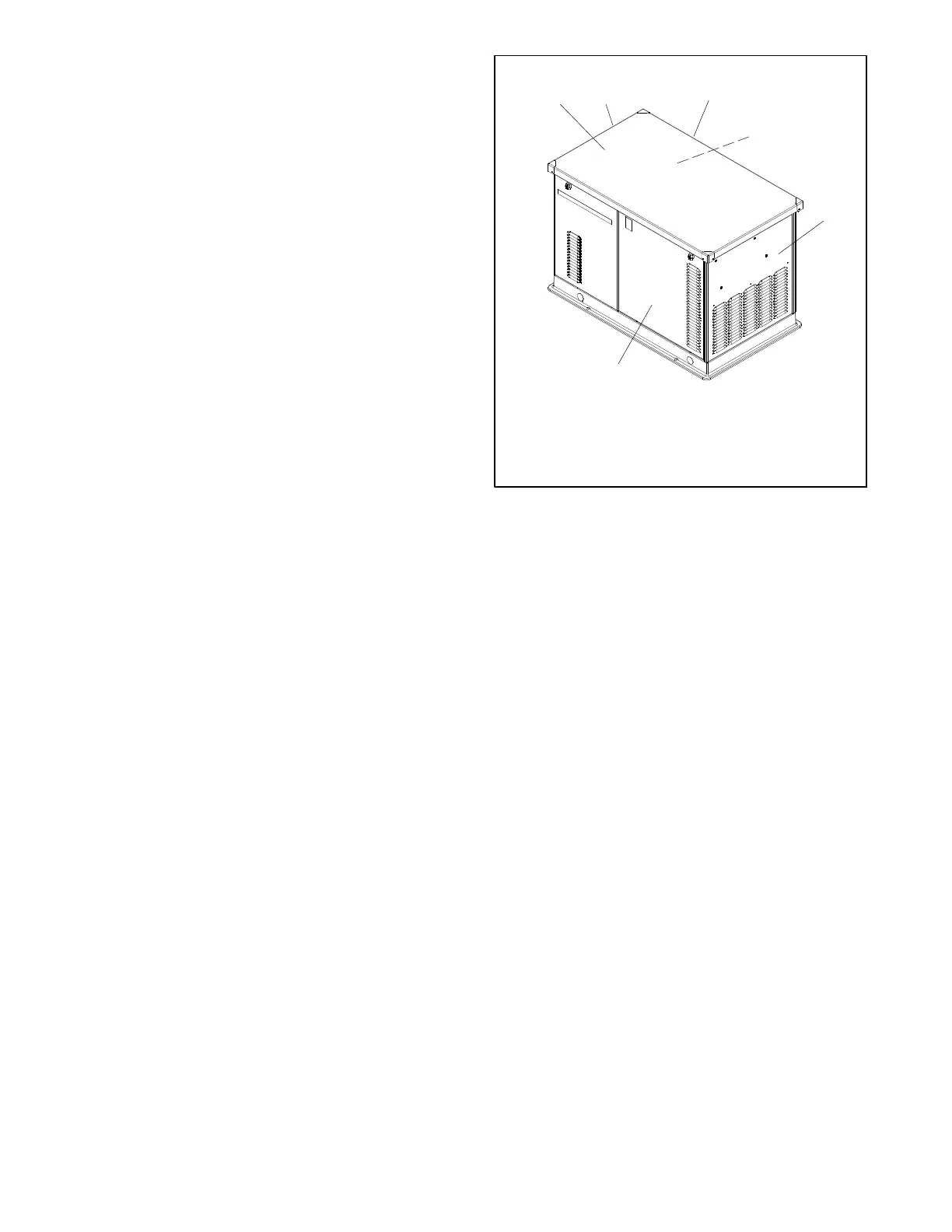

1. Roof
2. Right side door
3. Front panel
4. Heat shield (inside, not shown)
5. Left side panel
6. Rear panel
1
ADV7341
2
3
4
5
6
Figure 6-27 Generator Set Enclosure
