TP-6953 7/19 285Section 16 Additional 4PX/4QX Alternator Information
5
GC79429-43
1. Spacer (GM98936)
2. Thread- forming Torx head screw (M7500CE-05020-85 qty. 6)
3. Terminal (X-283-58 qty. 5), not shown
4. Stainless steel hex nut (M934-04-SS qty. 5)
5. Activator board (GM98939-1)
6. Thread-forming screw (X-6071-8)
7. Stainless steel nylock nut (M985-04-SS qty. 5)
3
6
7
4
1
2
Listed in order of assembly:
Side View

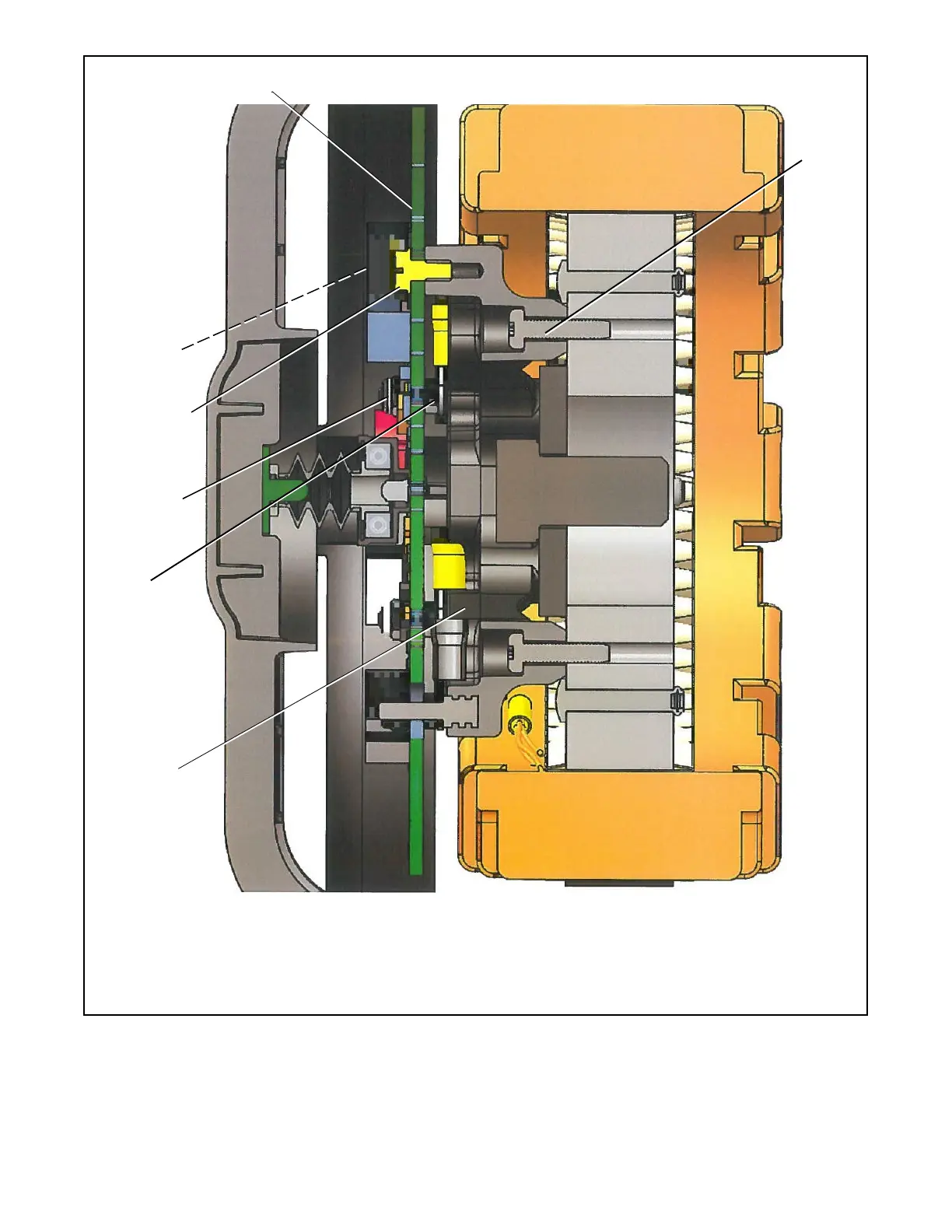

Figure 16 -13 Components Shown in Order of Assembly (Shown with Dust Cover)
To Next Page
