TP-6953 7/19 93Section 2 Operation

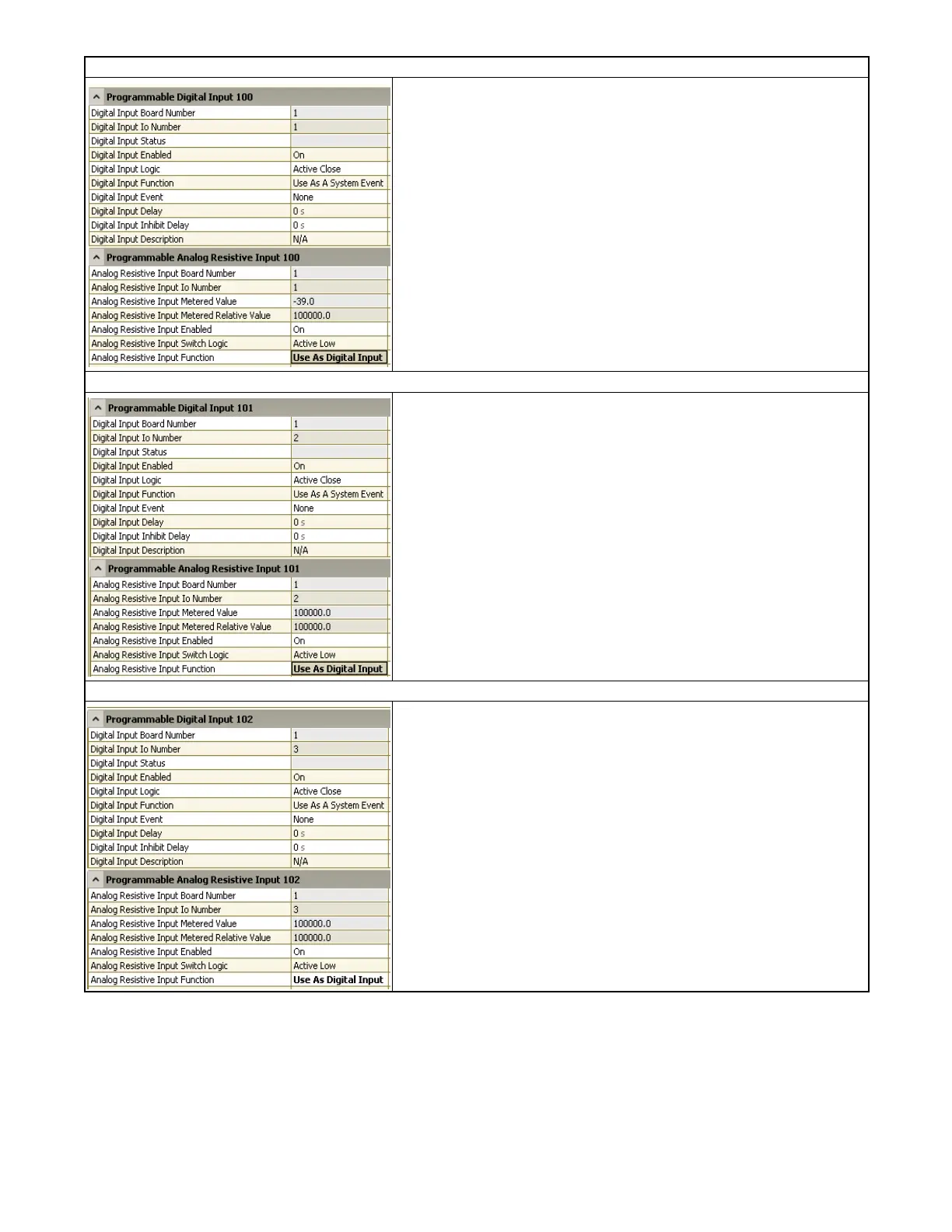

Programmable Analog Resistive Input #1, used as Digital:
Programmable Resistive Input #1 can be used as a Digital Input.
When configured as a Digital Input, it can be configured under Programmable Digital
Input 100.
NOTE: This input is not recommended for connection to devices further than 30 m
(98 ft.) from the generator set to avoid the potential damage to the sensitive resistive
input measurement circuitry.
This input is considered “Closed” when there is less than 50 Ohms of resistance
between P1 pin 18 and P1 pin 31.
If Digital Input Logic is set to “Active Close”, the input becomes active when the
resistance between P1 pin 18 and P1 pin 31 (as indicated in Analog Resistive Input
Metered Relative Value) is below 50 Ohms.
If Digital Input Logic is set to “Active Open”, the input becomes active when the
resistance between P1 pin 18 and P1 pin 31 is greater than 50 Ohms.
Programmable Analog Resistive Input #2, used as Digital:
Programmable Resistive Input #2 can be used as a Digital Input.
When configured as a Digital Input, it can be configured under Programmable Digital
Input 101.
NOTE: This input is not recommended for connection to devices further than 30 m
(98 ft.) from the generator set to avoid the potential damage to the sensitive resistive
input measurement circuitry.
This input is considered “Closed” when there is less than 50 Ohms of resistance
between P1 pin 30 and P1 pin 31.
If Digital Input Logic is set to “Active Close”, the input becomes active when the
resistance between P1 pin 30 and P1 pin 31 (as indicated in Analog Resistive Input
Metered Relative Value) is below 50 Ohms.
If Digital Input Logic is set to “Active Open”, the input becomes active when the
resistance between P1 pin 30 and P1 pin 31 is greater than 50 Ohms.
Programmable Analog Resistive Input #3, used as Digital:
Programmable Resistive Input #3 can be used as a Digital Input.
When configured as a Digital Input, it can be configured under Programmable Digital
Input 102.
NOTE: This input is not recommended for connection to devices further than 30 m
(98 ft.) from the generator set to avoid the potential damage to the sensitive resistive
input measurement circuitry.
This input is considered “Closed” when there is less than 50 Ohms of resistance
between P1 pin 19 and P1 pin 31.
If Digital Input Logic is set to “Active Close”, the input becomes active when the
resistance between P1 pin 19 and P1 pin 31 (as indicated in Analog Resistive Input
Metered Relative Value) is below 50 Ohms.
If Digital Input Logic is set to “Active Open”, the input becomes active when the
resistance between P1 pin 19 and P1 pin 31 is greater than 50 Ohms.
