31Section 1 SpecificationsTP-6953 7/19
1.14 Altern ator Torque Values and Assembly Specifications
Use the torque values shown below during alternator assembly. For assembly torque values not shown, use the
guidelines in Appendix C, General Torque Specifications.
GM98819-C

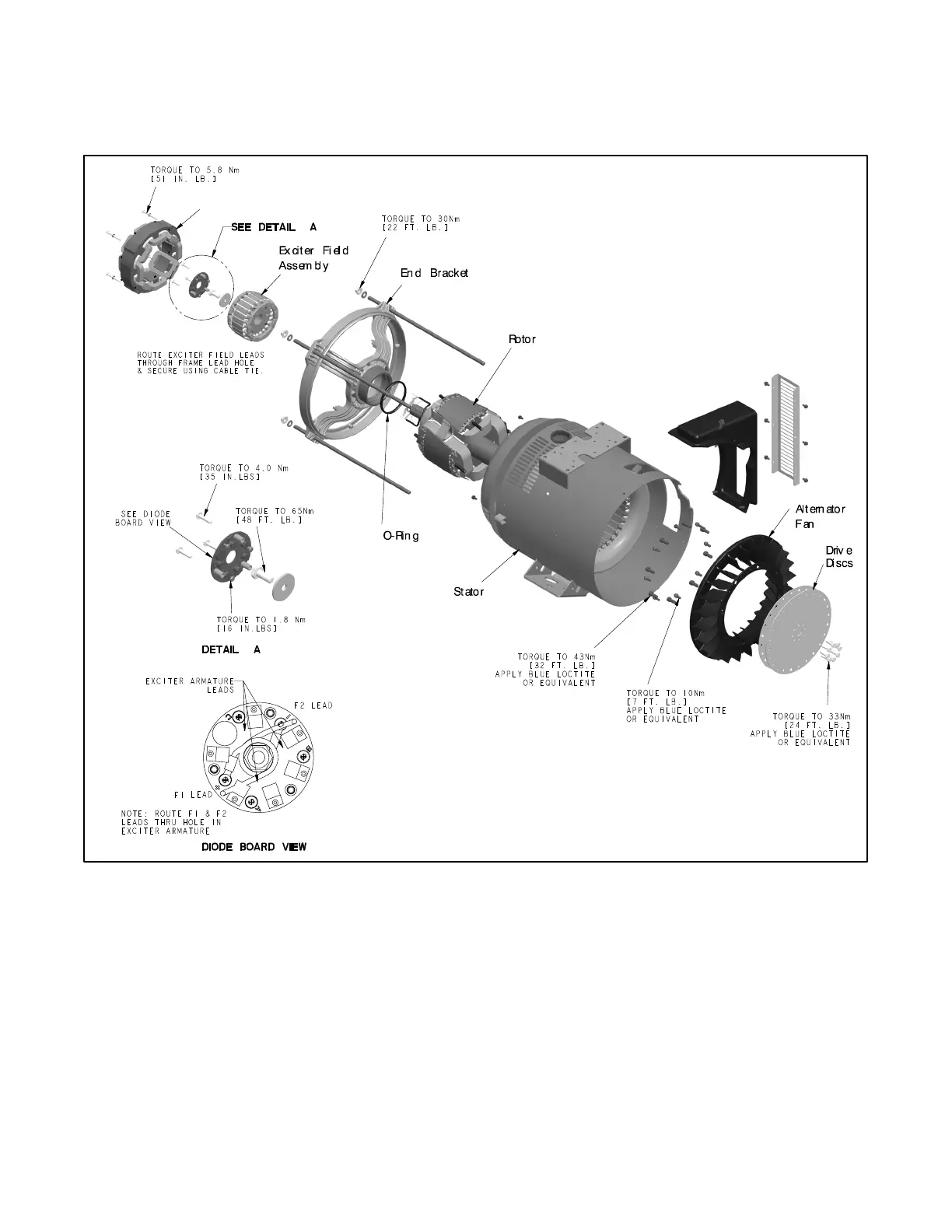

Figure 2 Alternator Assembly Torque Specs—13- 24EKOZD and 11- 20.5EFKOZD Models
(Parts Shown May Vary Slightly Between Models)
Loctiter is a registered trademark of the Henkel Corporation.
