TP-6069 6/0344 Section 7 Installation Drawings
ADV-6494A-C
NOTE: Dimensions in [ ] are inch equivalents.

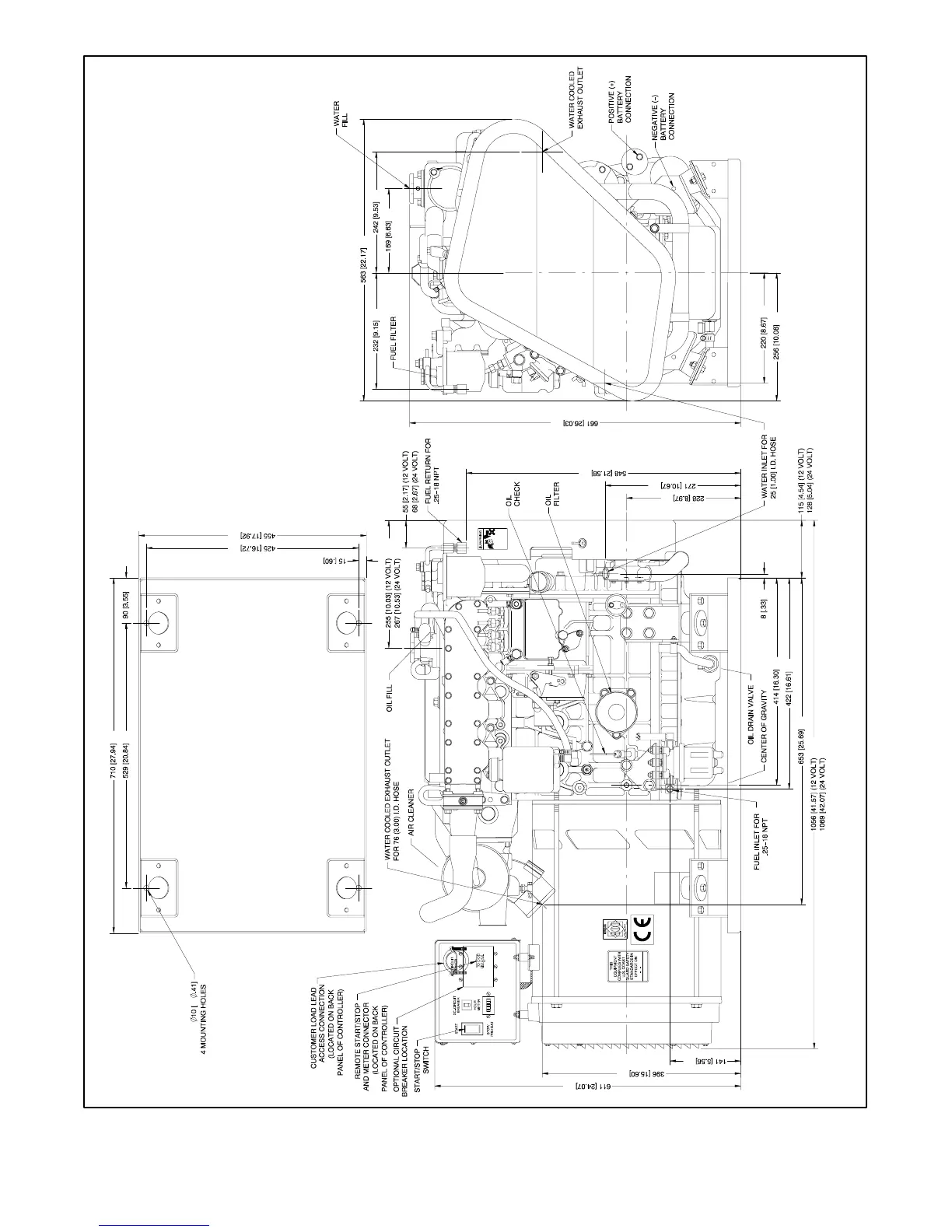

Figure 7-16 Dimension Drawing, 19/20EFOZ and 23/24EOZ
