TP-6069 6/03 9Section 3 Cooling System
1
TP-6134-
1. Intake strainer
2. Seacock
3. Seawater strainer
4. Engine-driven seawater pump
5. Oil exchanger
6. Zinc plug
7. Exhaust manifold elbow
8. Exhaust hose
9. Silencer (customer supplied)
10. Outlet flapper (exhaust/water discharge)
2
3
4
5
6
7
8
9
10

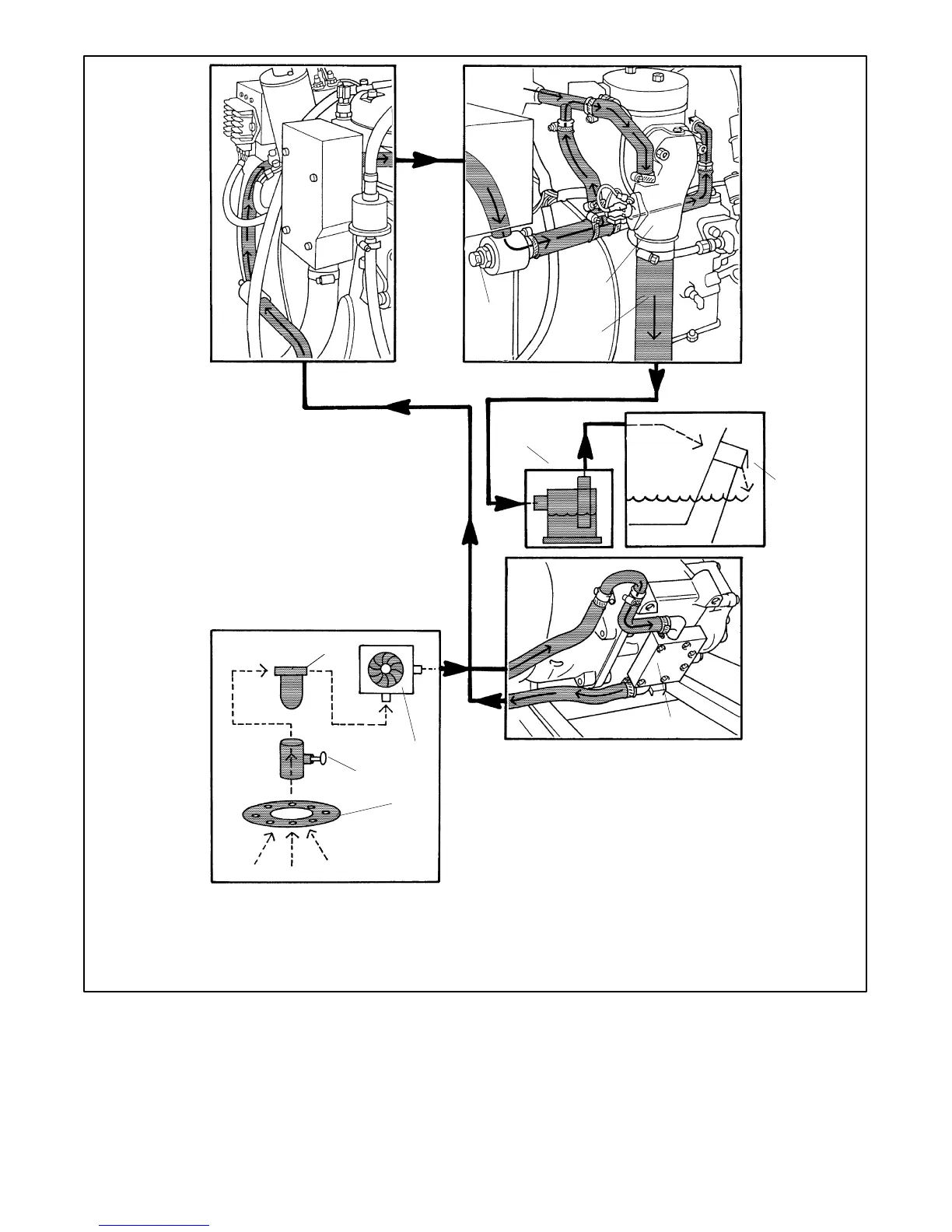

Figure 3-8 Direct Water-Cooled Cooling System (3.5EFOZ and 4EOZ Models)
