TP-5936 7/04 3Section 1 Specifications
1.4 Service View
GB-250000
1 2 3 4 5 6 8 9 10 11 12 13 14 15 16 17
19
21222426
20
2325
7
12
16 1227
28
29
30
31
32
33
18
1. Controller
2. Start/Stop switch
3. Hourmeter
4. DC circuit breaker
5. AC load lead connector (rear)
6. Nameplate (top)
7. Remote start connector (rear)
8. AC circuit breaker
9. Air intake silencer
10. Lifting eye
11. Fuel filter
12. Oil fill
13. Fuel return (or located behind valve cover and filter)
14. Governor
15. Fuel injection pump
16. Pressure cap
17. Overflow tube
18. High water temperature switch
19. Seawater pump (water inlet)
20. Coolant overflow bottle
21. Oil filter
22. Oil drain valve
23. Oil drain hose
24. Oil dipstick
25. Fuel inlet
26. Low oil pressure switch
27. Thermostat housing and thermostat
28. High temperature shutdown switch
29. Mixing elbow (water/exhaust outlet)
30. Engine starter motor
31. Heat exchanger
32. Water temperature sender (optional)
33. Battery charging alternator

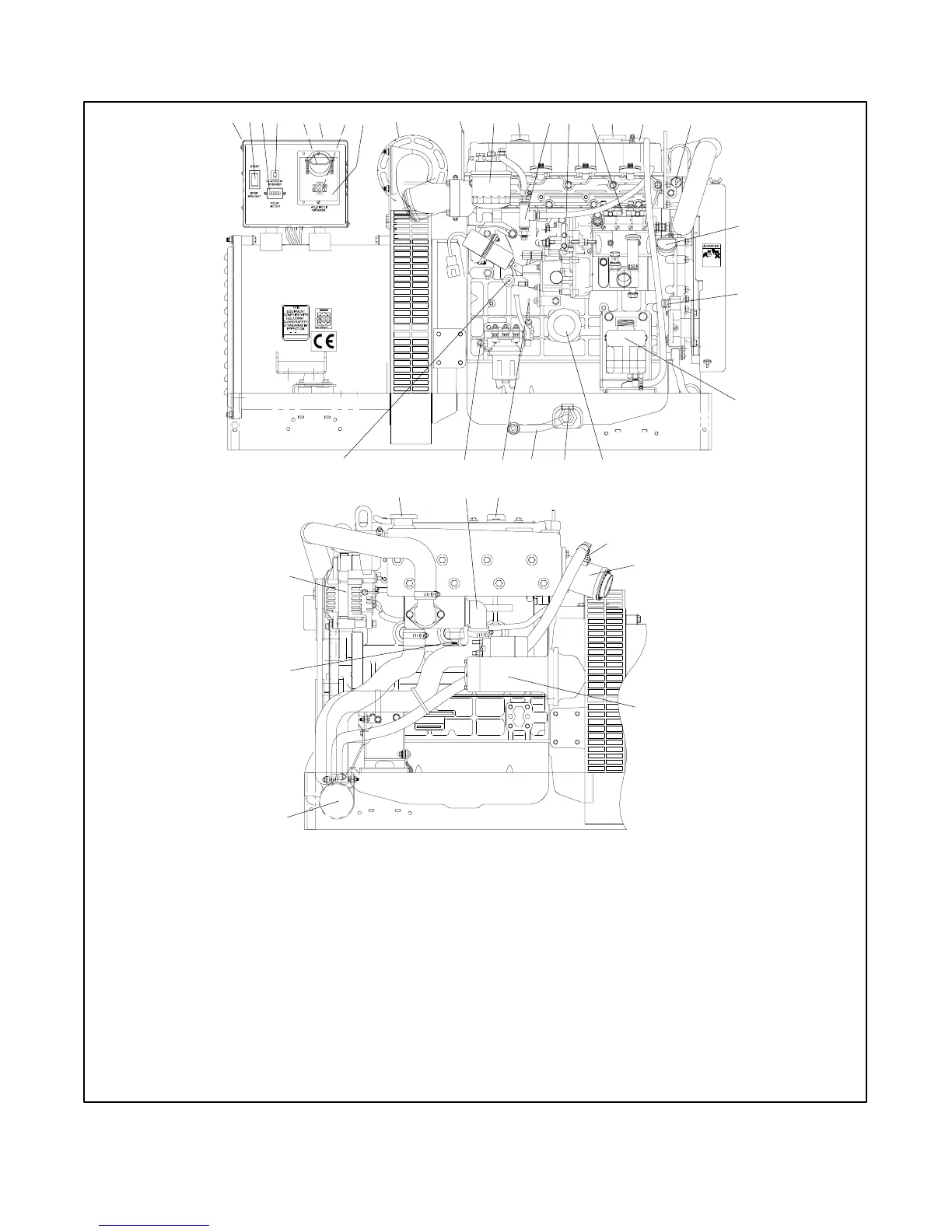

Figure 1-1 Generator Set Service View
