TP-6811 7/16 91Section 7 Disassembly/Reassembly
1. Roof
2. Front left panel
3. Exhaust mounting bracket
4. Front panel
5. Silencer
6. Front right panel
7. Access panel
8. End panel (design may vary)
GM85089_A
3
5
6
2
4
1
7
8
7
Note: Maximum torque for screws into aluminum
enclosure panels: 5.7 Nm (50 in. lbs.).

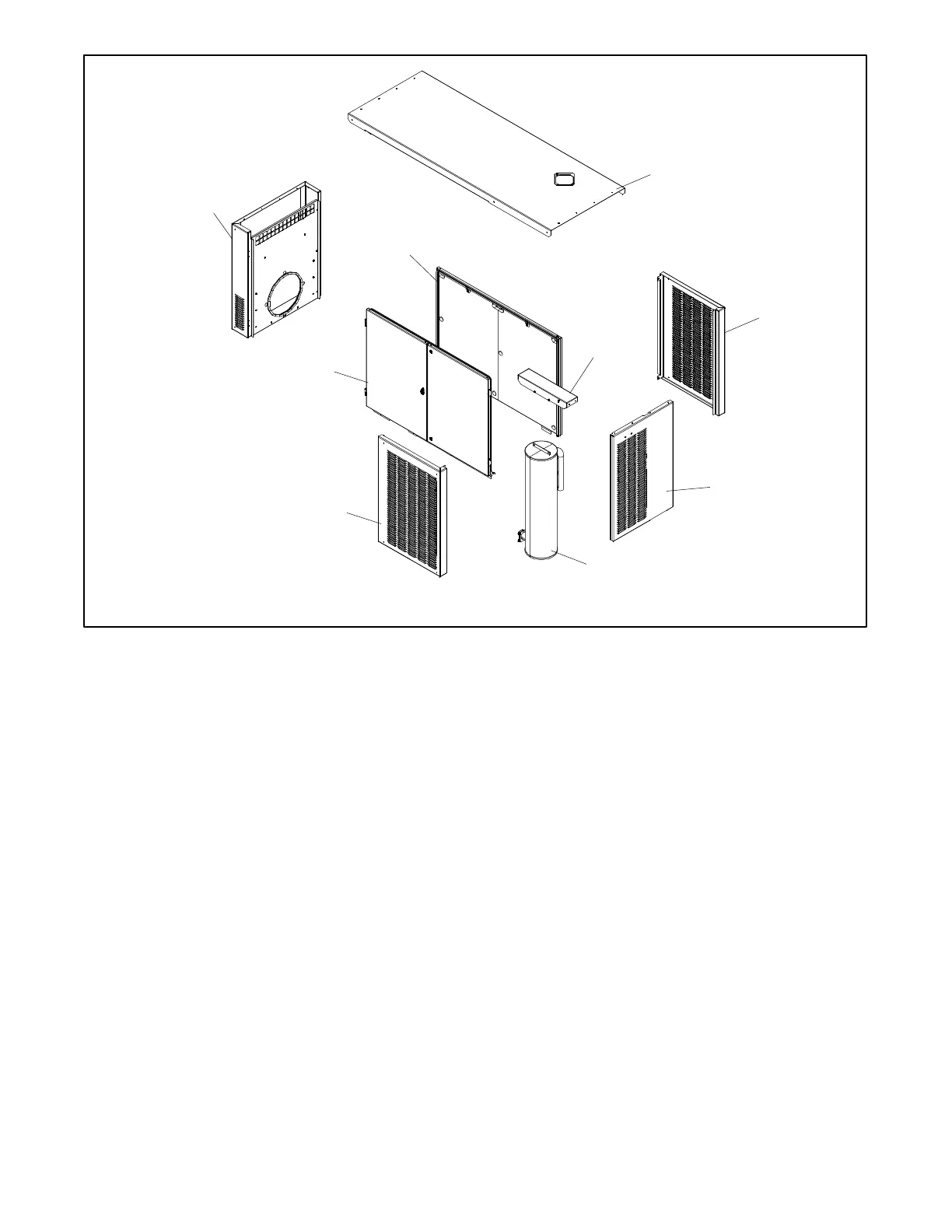

Figure 7-2 Enclosure, 38RCL, 48RCL, 48RCLA, and 60RCL (except 48RCL specification number
GM78521-GA1; see Figure 7-1)
