Kohler 4CKM Service Bulletin

6
SB-555 5/96
Overspeed Adjustment
The governor control contains a circuit which will
de-energize the carburetor fuel solenoid (AD) if the
generator exceeds the overspeed setting.
SPEED
TP-5572-6

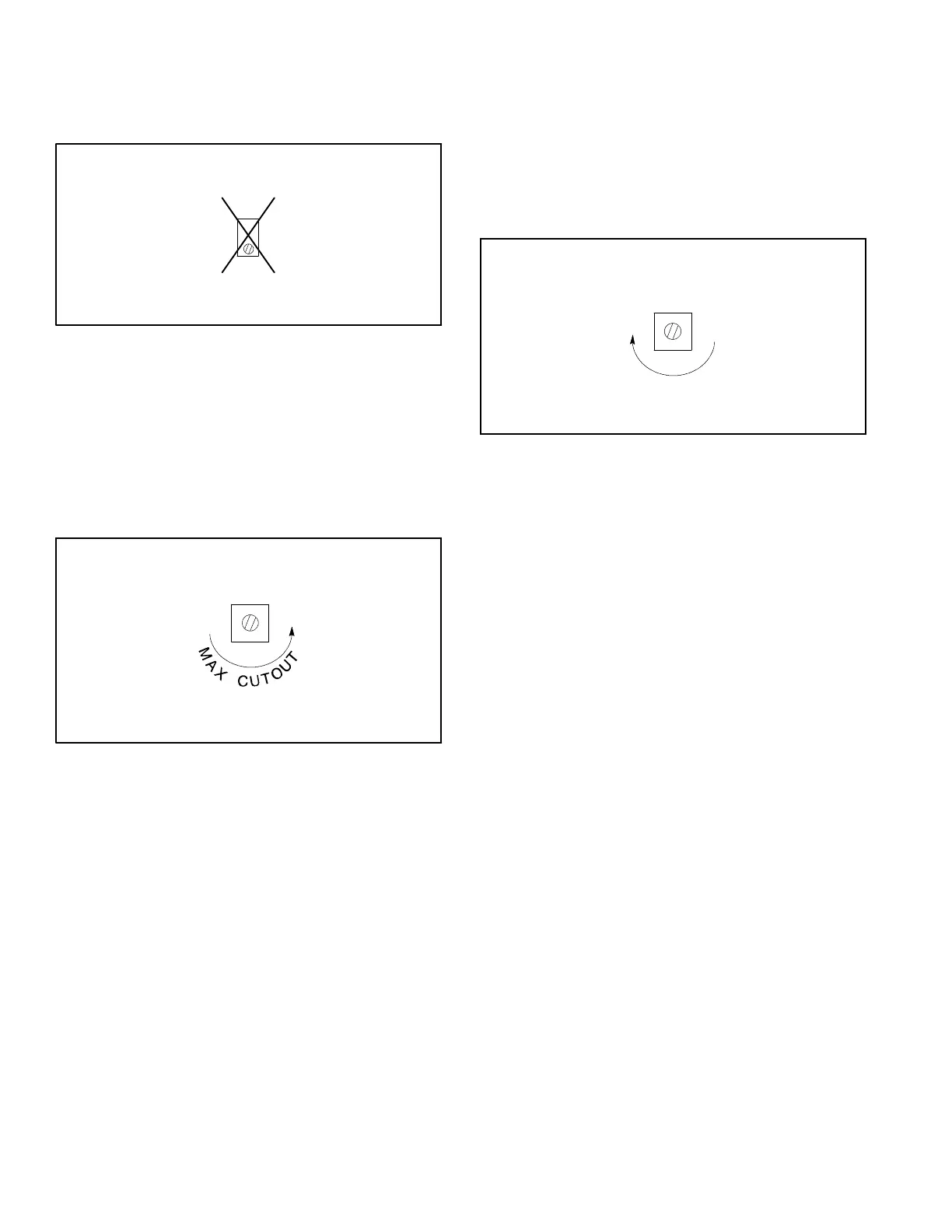

Figure 9. Speed Potentiometer
D DonotusetheSpeedPot tochecktheoverspeed
shutdown setpoint. See Figure 9.
D Disconnect all loads from the generator when
adjusting the overspeed cutout.
1. Connect a frequency meter to the generator output.
2. Turn Overspeed Pot counterclockwise to max.
overspeed cut-out point. See Figure 10.
OVERSPEED
TP-5572-6
Figure 10. Overspeed Potentiometer
3. While observing the frequency meter, manually turn
the governor actuator shaft until frequency reaches
the desired cut-out speed.
NOTE
Do not exceed 72 Hertz
4. While keeping the generator at the desired cut-in
speed,slowlyturnOverspeedPotclockwiseuntilunit
shuts down. See Figure 11.
OVERSPEED
TP-5572-6
Figure 11. Overspeed Potentiometer
NOTE
If OverspeedPot is adjustedtoo low, theenginemay shut
down on startup because of governor overshoot.
