TT-1602 5/16
4
2.3 Position the internal rails (GM86085 qty. 2) at the
location shown in Figure 4 using the mounting
bracket and hardware identified in Figure 6.
Position a mounting bracket (GM86091) to the top
of each internal rail using three bolts (X-6224-20)
and three nuts (X-6210-7) per bracket. See
Figure 14 for more detail.
2.4 Position the internal rail (GM86085) at the location
shown in Figure 4 using the mounting bracket and
hardware identified in Figure 6.
Position a mounting bracket (GM86091) to the top
of the internal rail using four bolts (X-6224-20) and
four nuts (X-6210-7). See Figure 14 for more
detail.
Note: Do not final tighten at this time.
GM86396A-
1. Bolt (X-6238-3 or X-6238-11 qty. 4) and washer (X-25-37
qty. 4)
2. Bolt (X-6224-20 qty. 8), nut (X-6210-7 qty. 8), and washer
(X-25-37 qty. 8)
3. Corner extrusion mounting bracket (GM85875 qty. 4)
1
2
3

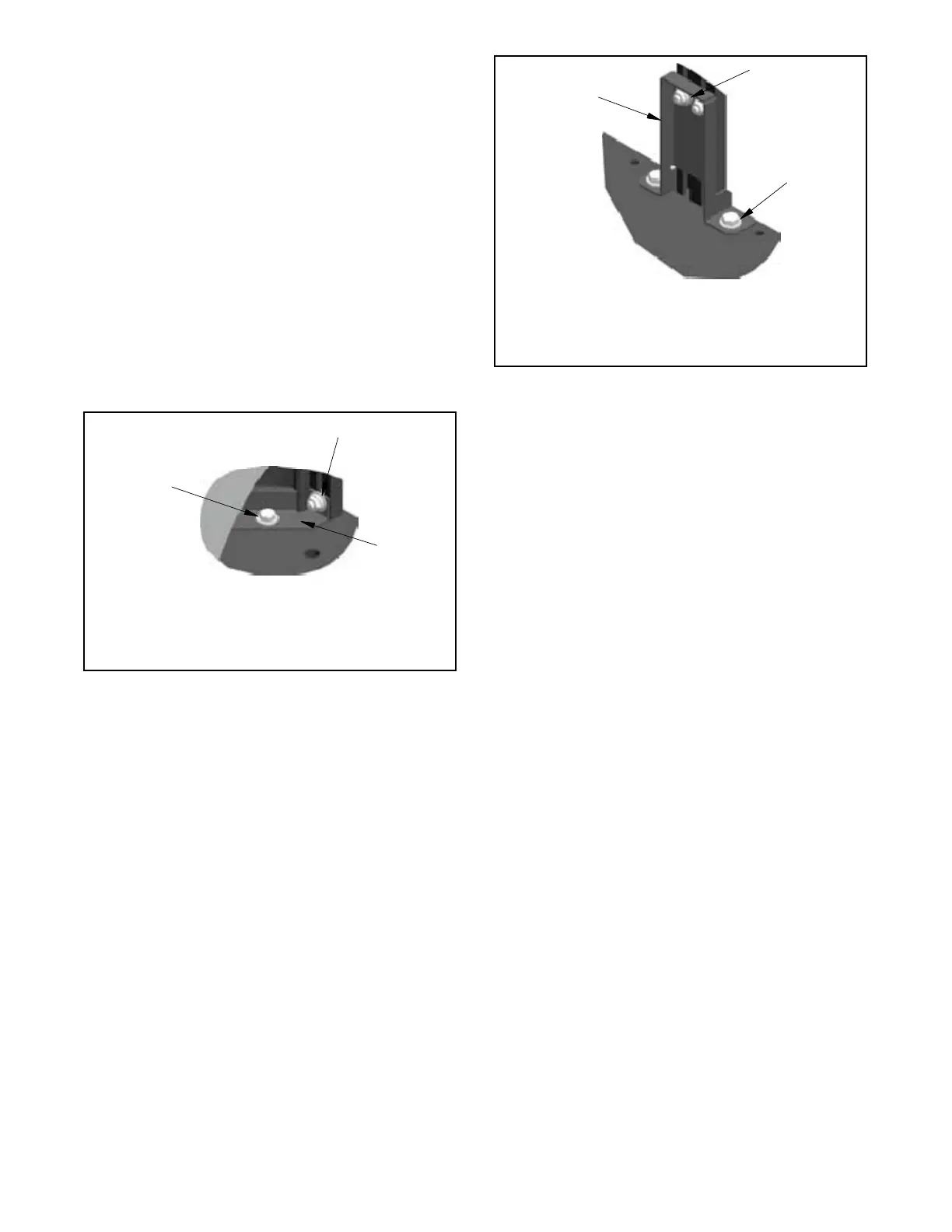

Figure 5 Corner Extrusion Mounting Bracket
Installation (Corner Rails to Base, 4 Places)
GM86396A-
1. Extrusion mounting bracket (GM85876 qty. 3)
2. Bolt (X-6224-20 qty. 6), nut (X-6210-7 qty. 6), and washer
(X-25-37 qty. 6)
3. Bolt (X-6238-3 or X-6238-11 qty. 6) and washer (X-25-37
qty. 6)
1
2
3
Figure 6 Extrusion Mounting Bracket Installation
(Rails to Base, 3 Places)
2.5 Position the LH and RH bulkheads (GM86075 and
GM86076) as shown in Figure 4 (items 7 and 8).
Secure the bottom of the bulkheads to the existing
skid using a screw (M933-06020-60), washer
(X-25-40) and nut (M6923-06-80) for each
bulkhead.
Secure the sides of the bulkheads to the two
internal rails using a bolt (X-6224-20), washer
(X-25-37), and nut (X-6210-7) for each bulkhead.
2.6 Position the upper bulkhead (GM86074) as
shown in Figure 4 (item 4).
Secure the bottom of the upper bulkhead to the LH
and RH bulkheads using two screws
(M933-06020-60), two washers (X-25-40) and
two nuts ( M6923-06-80) for each bulkhead.
Secure the sides of the upper bulkhead to the
internal rails using a bolt (X-6224-20), washer
(X-25-37), and nut (X-6210-7) for each side rail.
To Next Page
