66
Disassembly/Inspection and Service
KohlerEngines.com 32 690 03 Rev. I
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

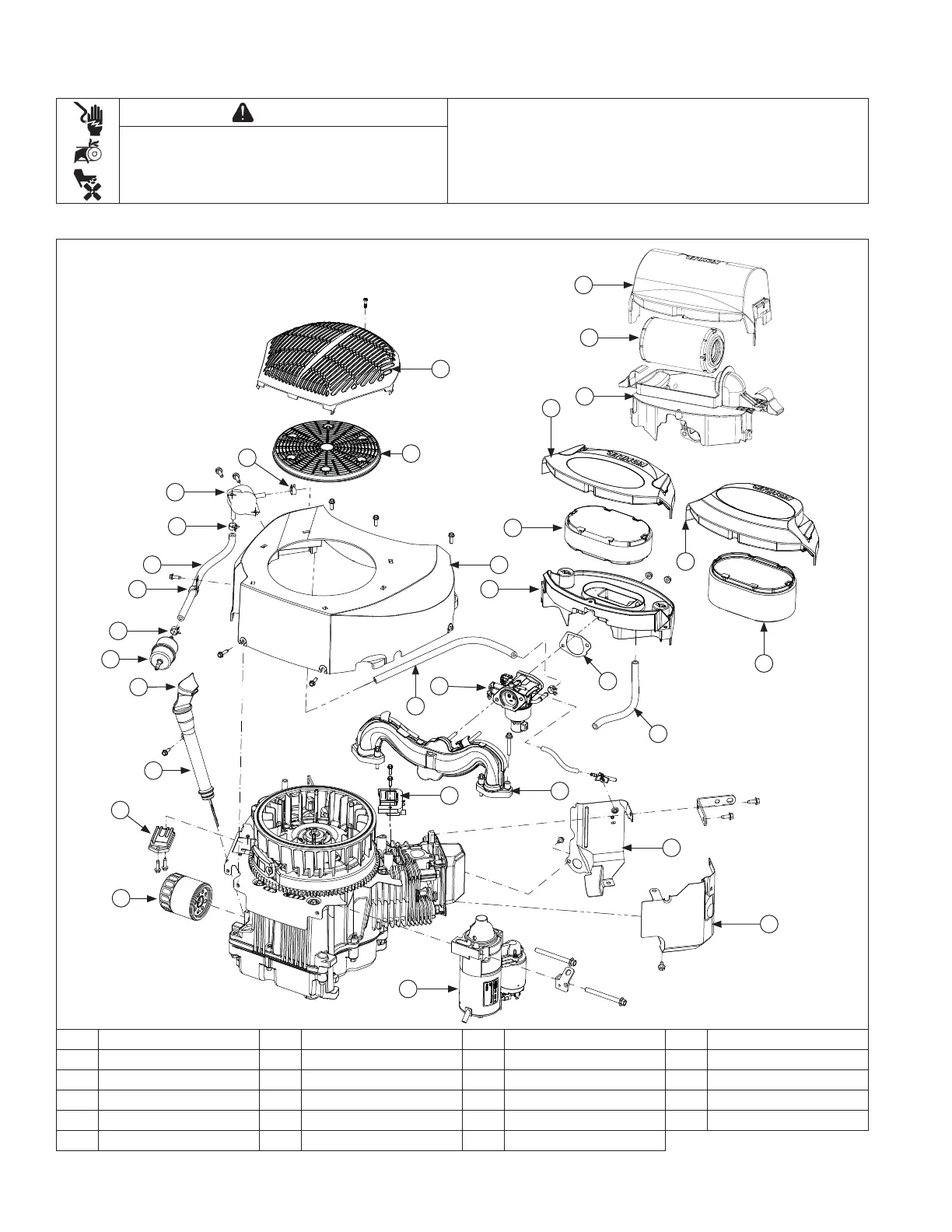

External Engine Components
J
T
E
L
G
S
R
E
E
F
H
H
I
V
U
K
B
A
C
D
M
O
N
P
Q
W
R
S
B
S
B
A Fixed Guard B Air Cleaner Cover C Debris Screen D Blower Housing
E Hose Clamp F Fuel Pump G Hose Clip H Fuel Line
I Fuel Filter J Oil Filter K Outer Baffl e L Electric Starter
M Inner Baffl e N Ignition Module O Intake Manifold P Carburetor
Q Gasket R Air Cleaner Base S Air Cleaner Element T Rectifi er-Regulator
U Dipstick Tube V Oil Fill/Dipstick W Breather Hose
