TP-6391 9/08 61Section 6 Generator Disassembly/Reassembly
8
9
10 11
12
1314
88
8
GM39685A-K
1. Generator adapter plate bolt, quantity 4
2. Generator adapter
3. Spring
4. Brush holder
5. Brush, quantity 2
6. Brush holder shim
7. Rotor bolt
8. Hardened washer
9. Generator overbolt, quantity 4
10. Retainer wire
11. Brush assembly mounting screws, quantity 2
12. Bracket, brush holder
13. Fan guard bolts, quantity 2
14. Fan guard
15. End bracket
16. Pipe plug
17. End drive fitting
18. End bracket bearing
19. O-ring
20. Stator assembly
21. Rotor assembly
1516
9
99
1
2
3, 4, 5
6
7
1718192021

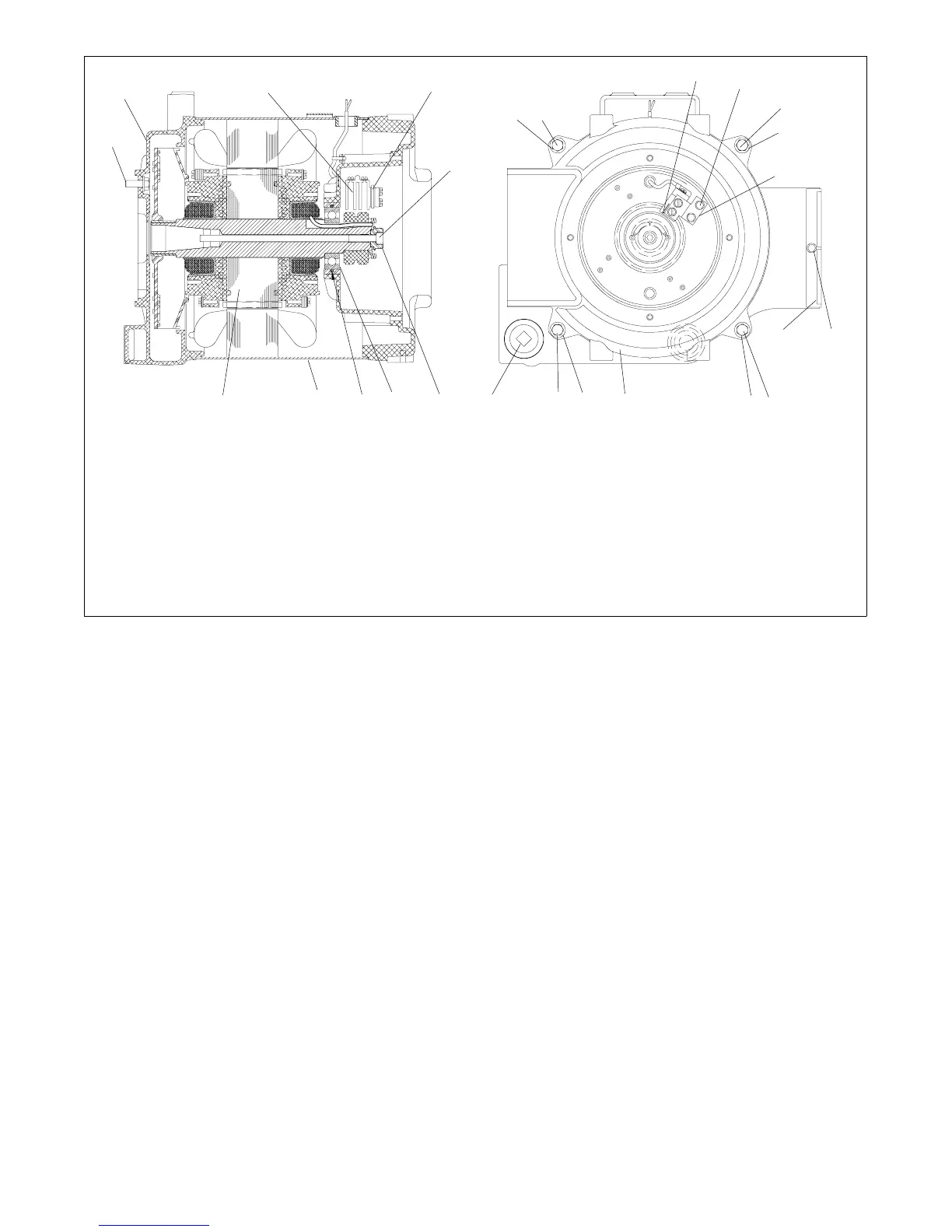

Figure 6-6 Alternator Assembly Components
