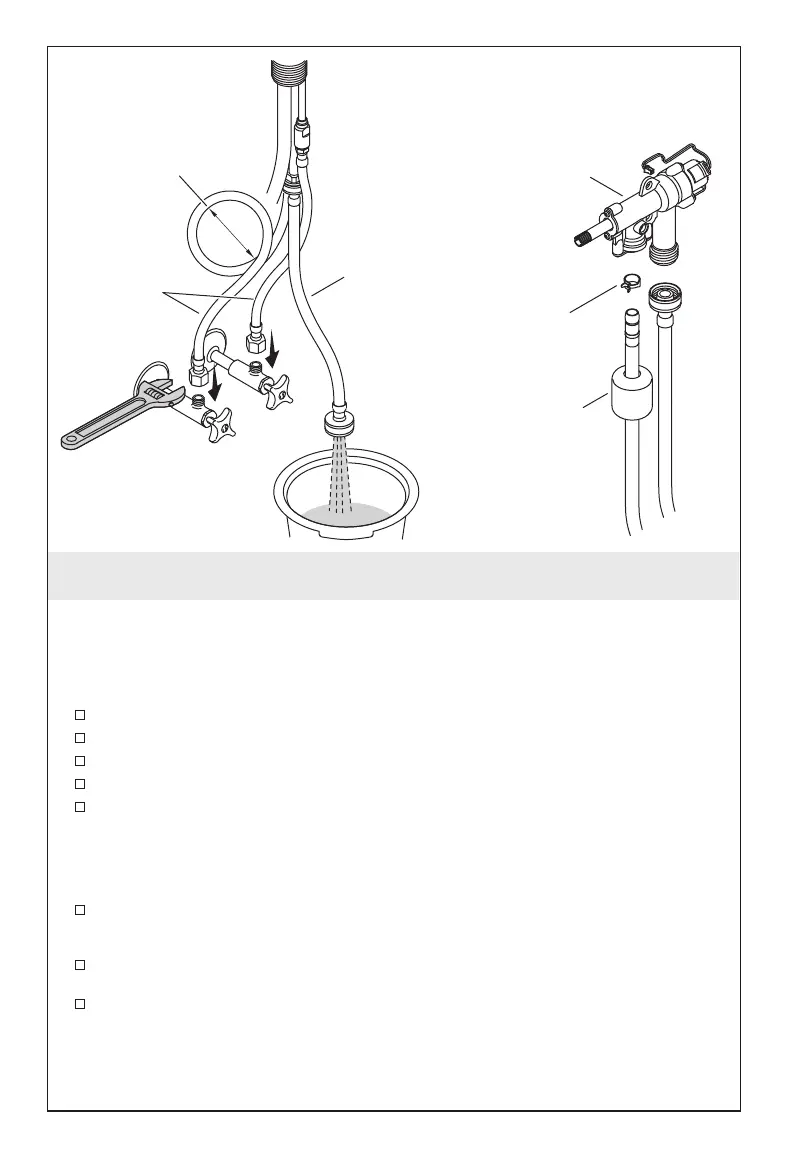

2. Connect the Hoses
Solenoid
ۉى݅
Clamp
ጱ
Weight
ದዘ
Outlet Hose
࠶
Ø 3" (76 mm) Min
ፌၭØ 3”(76 mm)
Supply Hose
࠶
CAUTION: Risk of restricted water ow and product damage.!Supply hoses
must
not be taut, kinked, or twisted during installation. If the supply hoses must be coiled,
maintain an inside diameter of 3 ″ (78 mm).
Connect the Supplies
Assemble the outlet hose to the faucet.
Connect and tighten the supply hoses to the supply stops.
Place a bucket under the outlet hose.
Turn on the water supplies.
Flush hot and cold water into a bucket for one minute to remove any debris.
Connect the Spray Hose
NOTICE: The weight must be installed onto the spray hose to act as a pull stop and
prevent kinking damage.
Slide the weight, then the clamp onto the spray hose.
TIP: Use a pliers to expand the clamp over the hose end.
Attach the spray hose to the outlet !tting on the solenoid. Ensure the hose is
completely engaged into the !tting.
Remove the protective cap and attach the outlet hose to the solenoid.
