TP-5594 5/953-16 Scheduled Maintenance
Sincelead 10(fromwatertemperaturesender)andlead
11 (from oil pressure sender) may not appear at
controller plug J4 or P4, it may be necessary to add
these leads in the engine harness or remote harness (if
used). Leads 10 and 11 do not run the full length of the
remote harness. Retrieve the ends of these leads from
the harness for connectionto the oil pressure andwater
temperaturesenders. Theinstallermayalsoelecttorun
separate leads from each sender directly to the gauges
and bypass the harnesses entirely. See Figure 3-17
andrefertothewiringdiagraminSection5. Useinsulink
or similar connectors at all spliced connections to
ensure reliable operation of the senders and gauges.
Oil
Pressure
Sender
Water
Temperature
Sender
11
10
11
10
P4-10
J4-10
P4-13
J4-13
11
10
P3-6
J3-3
P3-3
J3-2
Light Blue
Tan
Oil
Pressure
Gauge
S +
Water
Temperature
Gauge
S +
J3-4
P3-2
To
Controller
Violet (53)
Violet (53)
B+

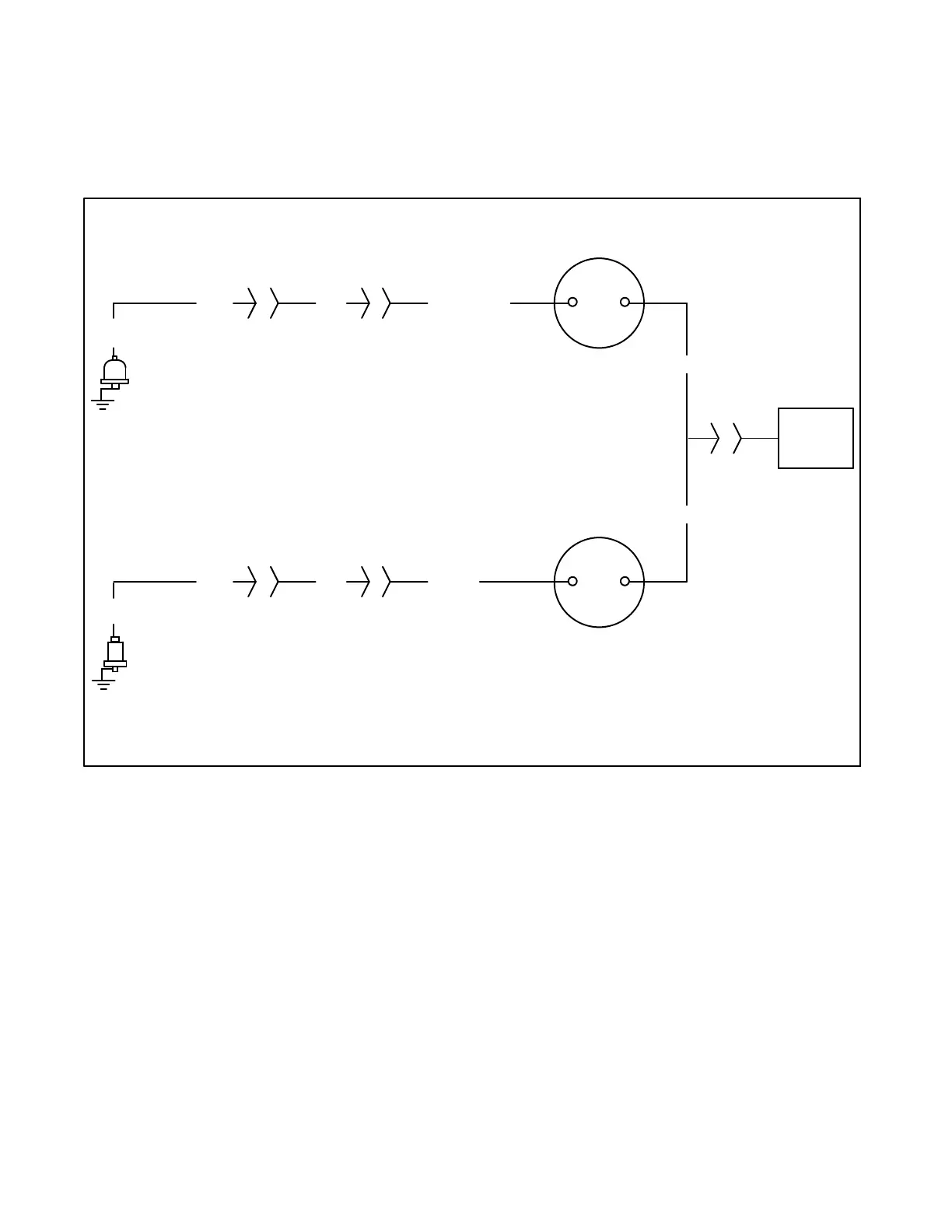

Figure 3-17. Oil Pressure/Water Temperature Sender Connections
