TP-5594 5/95 Installation 6-15
Generator
End
Generator
End
NOTE:
The dimensions shown
are compartment inside
measurements. The
compartment must allow
1 1/2 in.(38 mm) clearance
on all sides of generator.
Compartment Minimum Size in. (mm)
7 kW 10 kW
Length 37.0 (940) 43.0 (1092)
Width 21.0 (533) 23.0 (584)
Height 26.75 (679) 26.75 (679)
Bottom Discharge Outlet in. (mm)
7 kW:
Length: 18.83 (479)
Width: 8.88 (226)
10 kW:
Length: 22.00 (559)
Width: 8.88 (226)

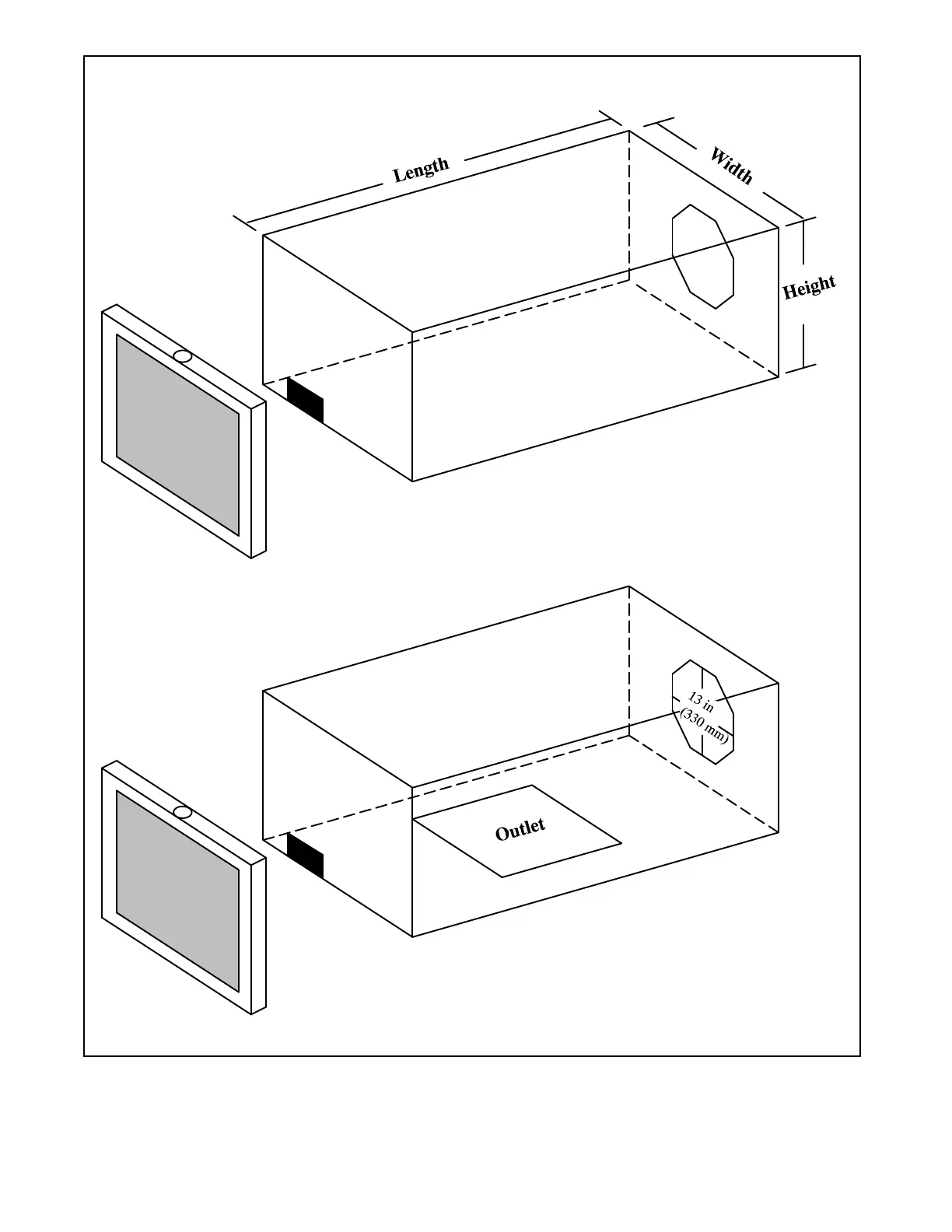

Figure 6-16. Typical Cooling System Installation (Compartment Minimum Sizes) for
Remote Radiator Mounted Outside the Generator Compartment
