Kohler BANCROFT User Manual

-5-
1051705-T01-A
B.
()
1) 5A
2) 5B
3) 5C
,
4) 6
5) 6

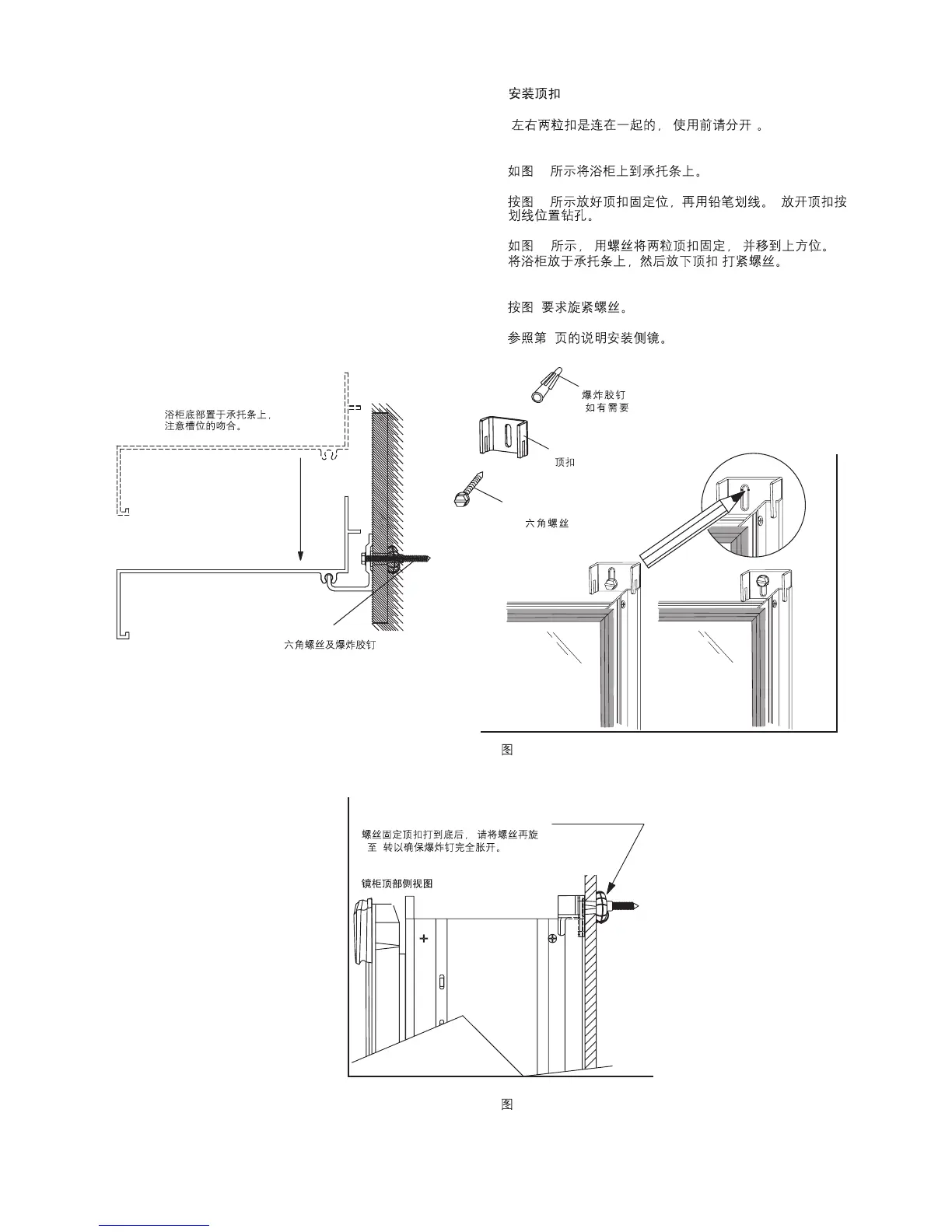

B. Install Top Clips
(Left and right top clips come connected, hold both clips
and snap them apart).
1) Fit cabinet into position on mounting bar as shown in
Fig.5A.
2) Place clip in position as shown in Fig.5B and mark with a
pencil. Remove clip and cabinet and drill the pilot or
anchor holes where marked.
3) Fix both the clips into position with a screw, and slide the
clip into the up position. Sit the cabinet on the mounting
bar, then lower and tighten the screws into place, as
shown in Fig 5C.
4) See Fig. 6 on next page for proper turns required for
anchor cinching.
5) See page 6 for Side Kit Mirror application.
Cabinet bottom sits in lip on bottom
mounting bar
#8x2"Hex
Head screw &
Wall anchor
(use driver)
#8
x1/4"
Top mount clip
Wall anchor
(if required)
()
#8x2 Hex head screw
(Use 1/4 driver)
#8 .
"
"
Fig. 5 5
Once Screw is bottomed out on
mount clip, turn screw and additional
5 to 7 turns to fully expand the anchor.
57
Side view at top of cabinet
5A
Fig. 6 6
5B
5C
1159769-T01-A
