Kohler CH680 Service Manual

Clutch
88 24 690 06 Rev. PKohlerEngines.com

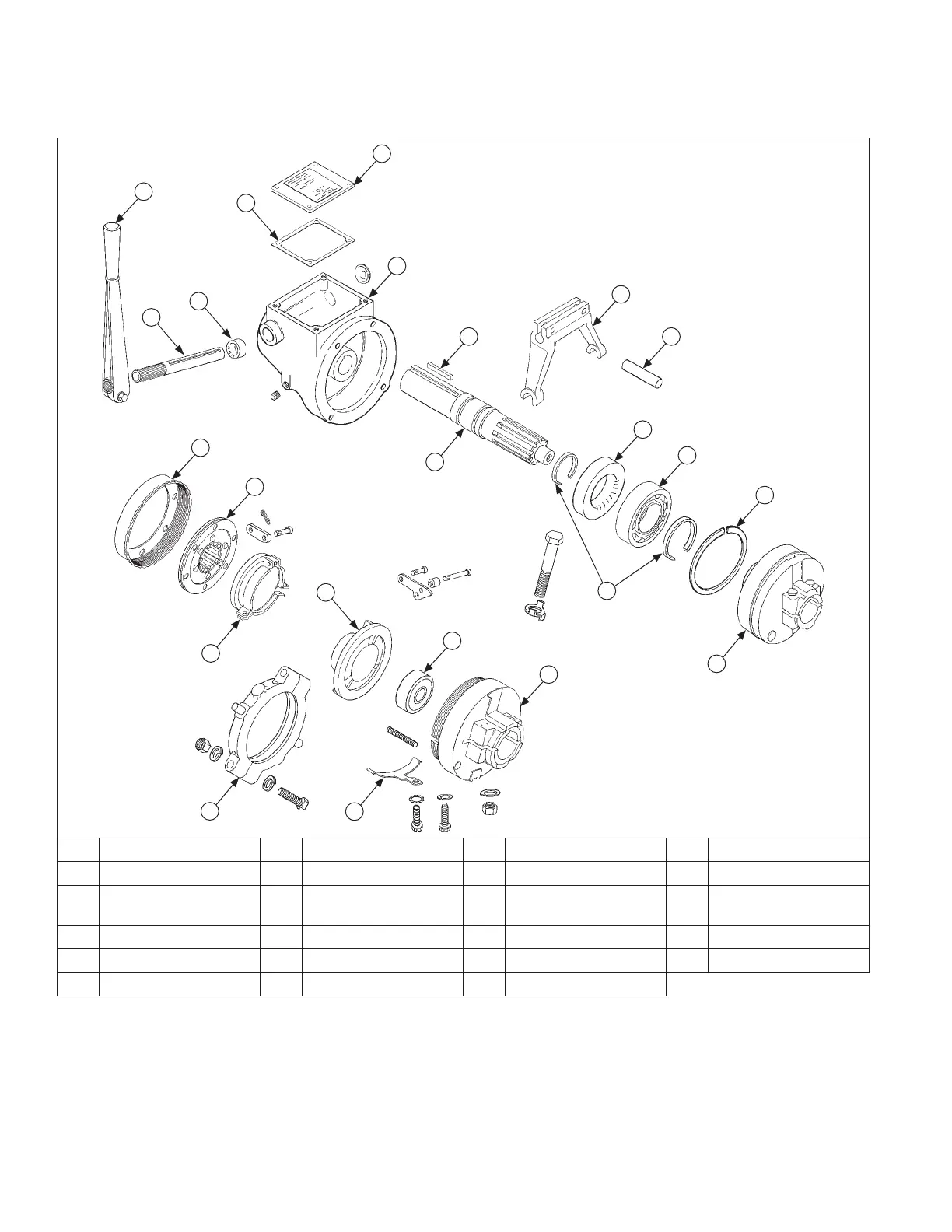

WET DISC TYPE CLUTCH (if equipped)
Wet Disc Type Clutch Components
I
J
M
W
P
N
L
H
G
A
E
F
O
S
R
T
U
V
K
D
C
B
Q
A Shifting Lever B Gasket C Seal D Shaft (Yoke)
E Nameplate F Clutch Housing G Adjusting Ring H Driven Member
I Release Sleeve J
Bearing Release
Assembly
K Pressure Plate L Pilot Bearing
M Adjusting Lock N Clutch Assembly O Key P Power Shaft
Q Retaining Rings R Yoke S Roll Pin T Oil Seal
U Ball Bearing V Snap Ring W Clutch Assembly

Kohler CH680 Specifications

General

Displacement	674 cc
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition System	Electronic
Cooling System	Air-cooled
Starter	Electric
Engine Type	4-cycle, overhead valve (OHV)
Oil Capacity	1.9 L (2.0 U.S. qt)
Lubrication	Full Pressure
Power	22 hp (16.4 kW) at 3600 rpm
