Kohler Comand Pro CH1000

1.7
Section 1
Safety and General Information
1
232.00
[9.134]
Ø 10.26 THRU
[0.404]
8HOLES
MARKED
PATTERN #1
MARKED  PATTERN #2
MOUNTING
HOLE “A”
EXHAUST PORT #2
MOUNTING SURFACE
105.25
[4.144]
PTO MOUNTING
SURFACE
CLOSURE
PLATE
PTO MOUNTING
SURFACE
82.25
[3.238]
EXHAUST PORT #1
MOUNTING SURFACE
135.00
[5.315]
16.00
[0.630]
239.50
[9.429]
119.00
[4.685]
LOW PROFILE
AIR CLEANER
RE
MOVABLE COVER
AIR CLEANER
ELEMENT ACCESS
KNOB
AIR CLEANER
ELEMENT ACCESS
KNOB
293.00
[11.535]
40.50
[1.594]
MOUNTING
HOLE “A”
287.71
[11.327]
60.41
[2.378]
119.80
[4.717]
ENGINE
MOUNTING
SURFACE
MOUNTING
HOLE “A”
418.22
[16.465
LIFTING
POINT
5.3
[0.207]
SPARK
PLU
G
WIRE
STEPPING MOTOR
CONNECTOR
484.33
[19.068]
85.47
[3.368]
LIFTING
POINT
LIFTING POINT
10.00
[0.394]
X
12.00
[0.472]
SLOT
OIL
LEVEL
DIPSTICK
14.7
[0.579]
SPARK
PLUG
WIRE
ENGINE
MOUNTING
SURFACE
41.4
[1.63]
CENTER
OF
GRAVITY
MOUNTING
HOLE “A”
600.09
[23.625]
63.00
[2.480]
AIR CLEANER
COVER REMOVAL
575.09
[22.641]
364.51
[14.351]
106.00
[4.173]
85.64
[3.372]
76.25
[3.002]
MOUNTING
HOLE “A”
ENGINE
MOUNTING
SURFACE
LIFTING POINT
10.00
[0.394]
12.00
[0.472]
X
OIL
FILL
Dimensions in millimeters.
Inch equivalents shown in [ ].

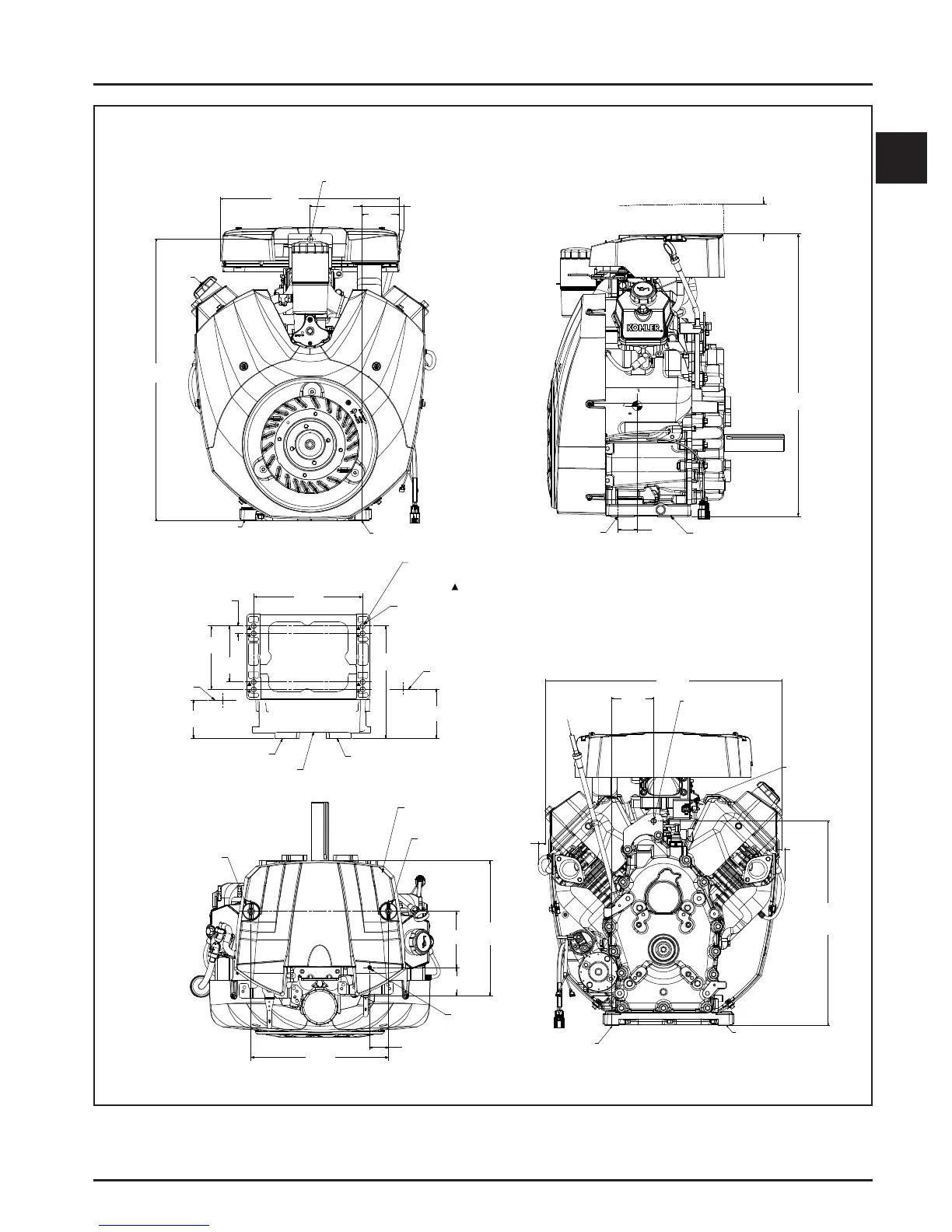

Figure 1-5. Typical CH PRO Series Engine Dimensions with Low-Profi le Air Cleaner.
