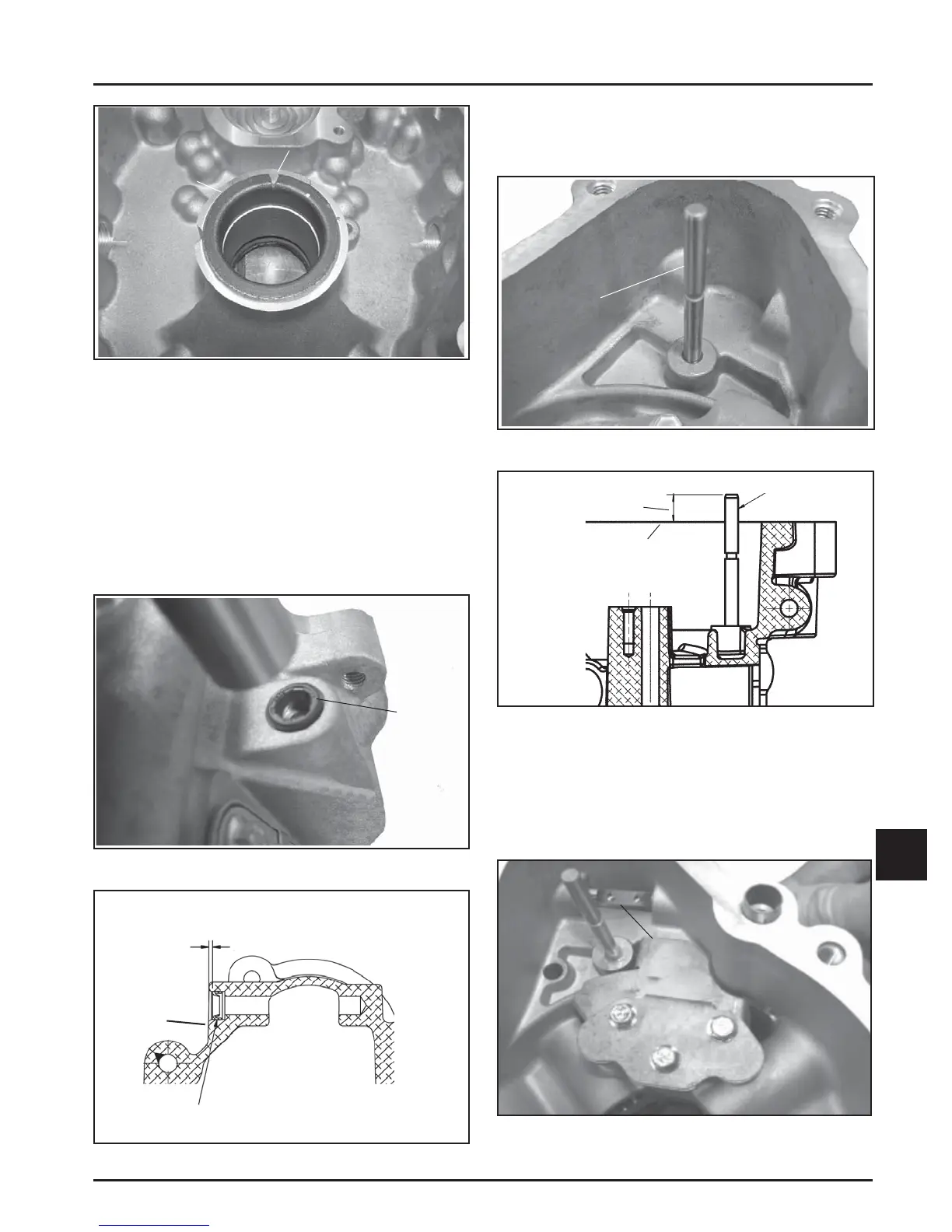

10.3
Section 10
Reassembly
10
2. If the governor gear sha was removed, press or
lightly tap the replacement sha into the closure
plate to depth shown in Figure 10-10.
Governor
Gear Shaft
Figure 10-9. Installed Governor Gear Shaft.
Governor
Gear Shaft
12.66 mm
(0.498 in.)
Crankcase
Surface
Figure 10-10. Governor Gear Shaft Press Depth.
3. Lubricate the governor cross sha bearing
surfaces in the crankcase with engine oil. Insert
the end with the fl at for the governor gear yoke
into the crankcase fi rst and position so the fl at is
up. See Figure 10-11.
Governor
Cross Shaft
Figure 10-11. Installing Governor Cross Shaft.
Notch
Main
Bearing
Figure 10-6. Installed Main Bearing.
Install Governor Shafts, Seal, and
Governor Gear
If the governor sha s, seal, and/or governor gear were
removed, reassemble as follows.
1. Lightly oil the lip and outside diameter of the
new governor cross sha seal. Install the seal into
the crankcase to the depth shown in Figure 10-8.
Seal
Figure 10-7. Installing Governor Cross Shaft Seal.
Oil Seal
Seal depth
1.5-2.0 mm (0.059-0.078 in.)
Crankcase
Surface
Figure 10-8. Governor Shaft Seal Depth.
